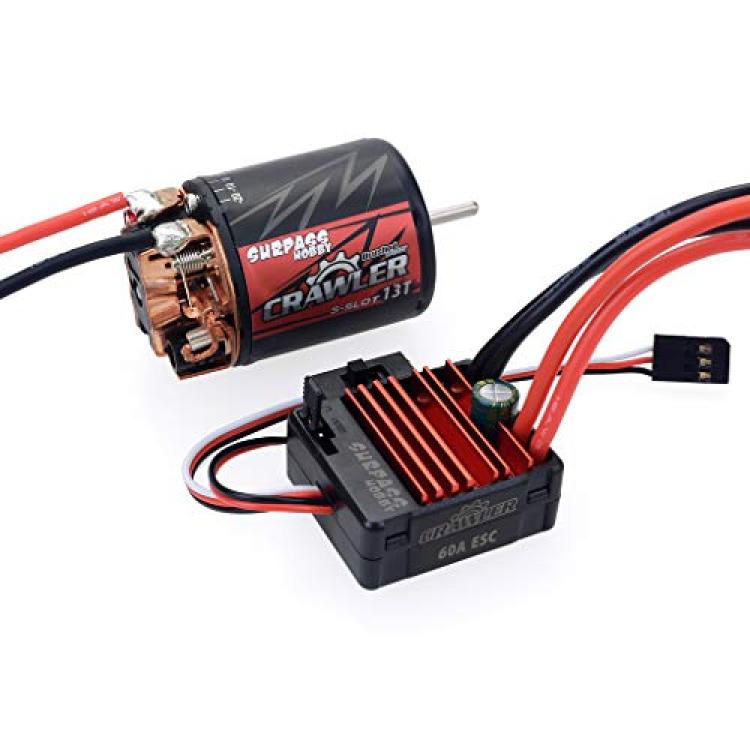

DollaTek 540 13T Brushed Motor 5-Slot RC Car Motor with 60A Brushed ESC Waterproof 6V/2A SBEC and and Programming Card Combo Set for 1/10 RC Crawler

Specifications of ESC:
1.Cont. Current/ Burst Current?60A
2.Resistance?0.0014ohm
3.Motor Type: brush motor.
4.Suitable Car:1/10 Crawler Brushed.
5.Battery:2 cells Lipo.
6.BEC:6V/2A (switch mode).
7.Dimension?32mm*37mm*18mm

Instructions:
1.Connect BEC wires with the receiver
2.Connect motor wires with ESC
3.Turn on the transmitter
4.Connect battery pack with ESC then switch on the ESC.
5.When the connection of motor and battery is finished,the motor emits “Beep” tone.
6.When the throttle stick is in the neutral position,the motor re-emits “Beep” tone.

Trouble shooting:
1. If after power on,motor can’t work,no sound is emitted,please check the connections between battery pack and motor.
2. If the motor emits a “Beep” tone Only,please check all the connections: BEC wires,transmitter and receiver,throttle signal wires,etc. please check the transmitter TH.TRIM and adjust it to the motor re-emits “Beep” tone.
3. If the car can’t be speed up,please check either voltage of the battery pack is too low or the temperature of ESC is too high. If the voltage of the battery pack is too low,please replace the battery pack. If the temperature of ESC is too high,please check all connections. If not,please push the button EPA on your remote control.
4. If the car stops suddenly while in working state,please check the motor’s connections,and the roadblock.
5.If the car runs in the opposite direction,which the transmitter is available,please swap two wire connections between the ESC and the motor.

Package Including

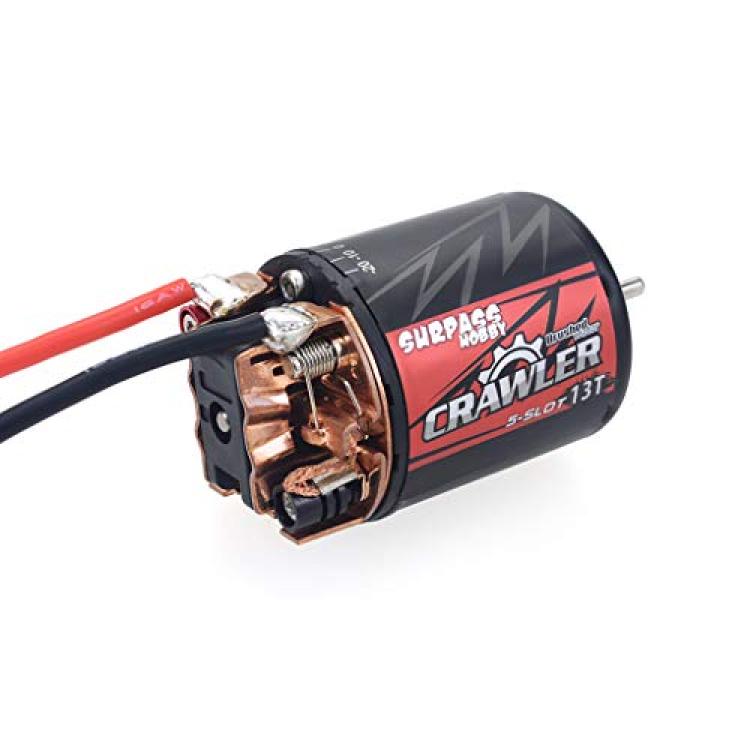

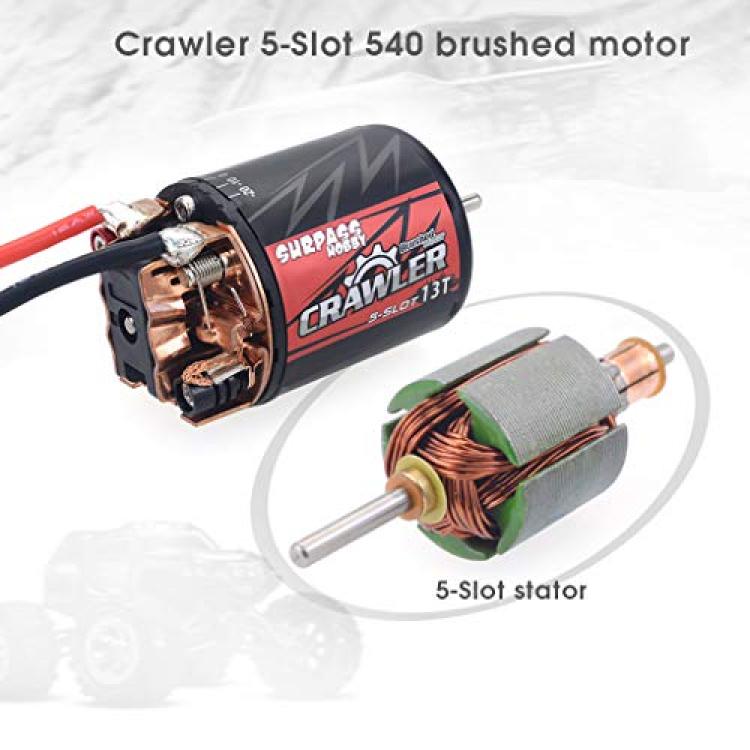

1 x 13T 5-Slot Brushed Motor

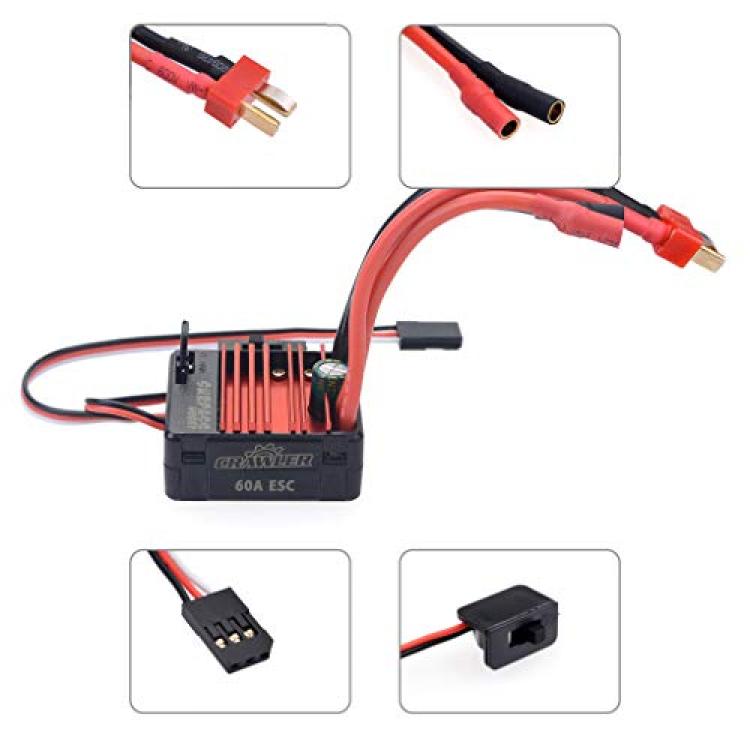

1 x 60A Brushed ESC

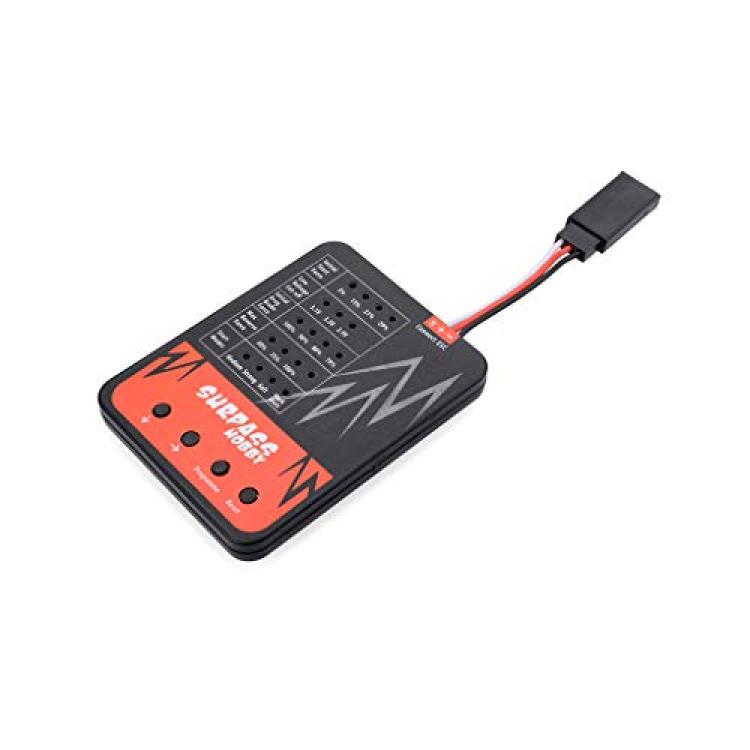

1 x Programming Card
