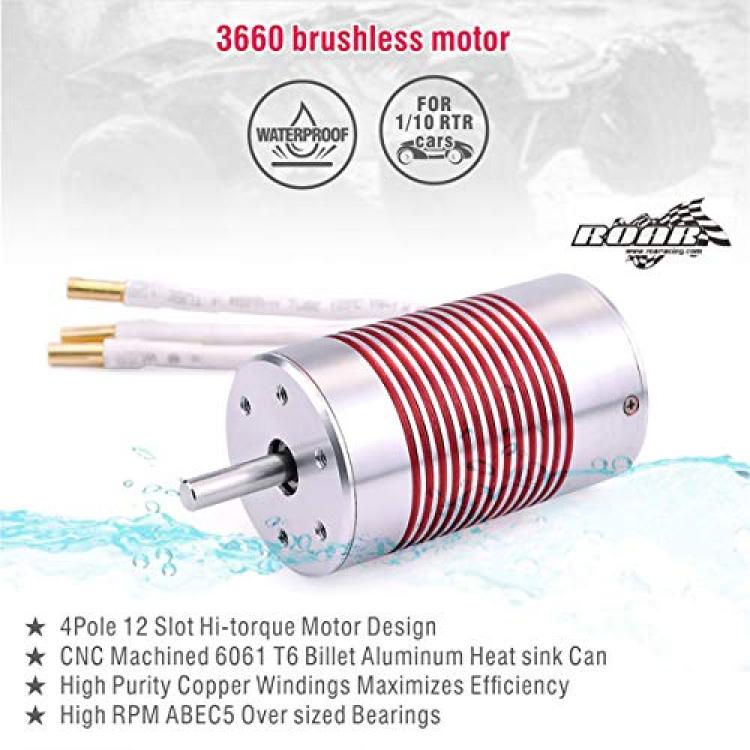

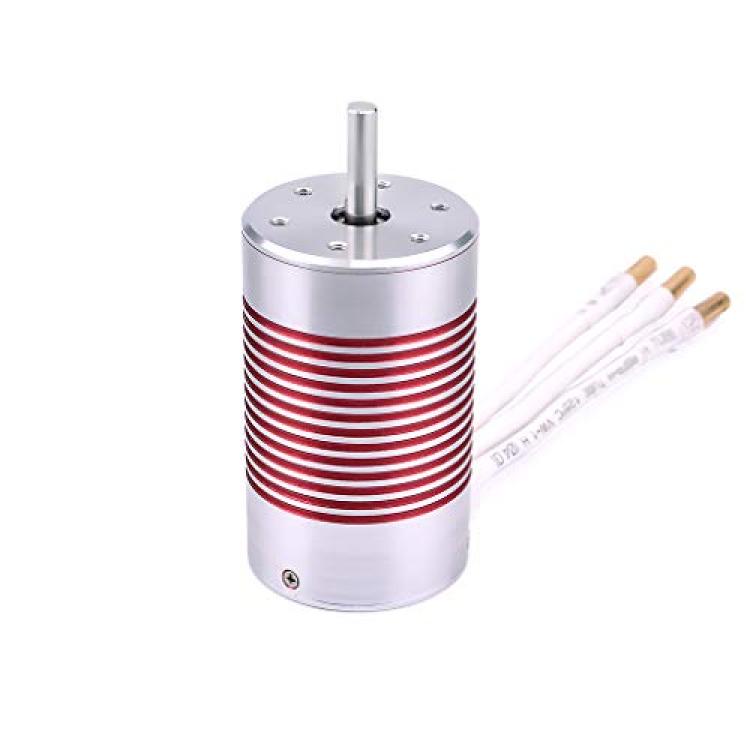

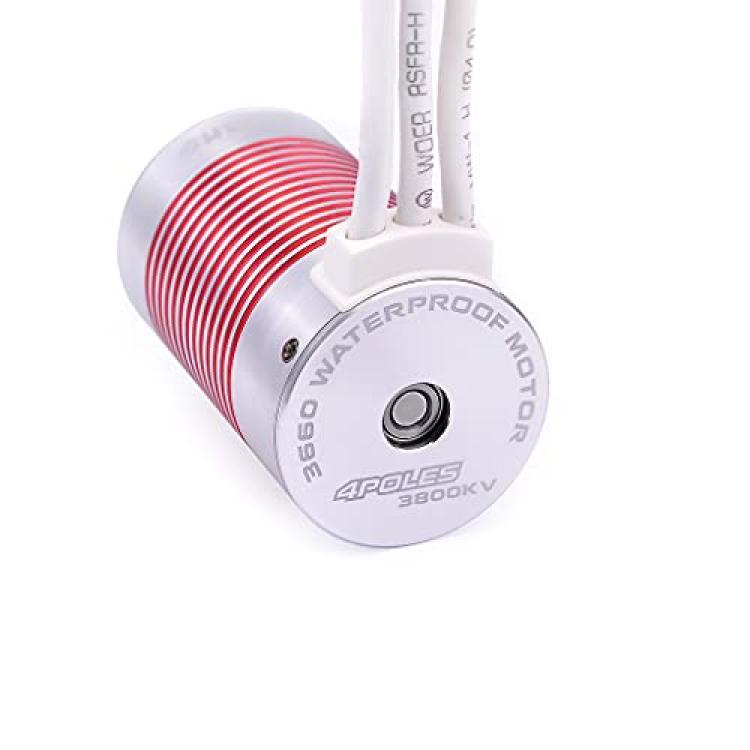

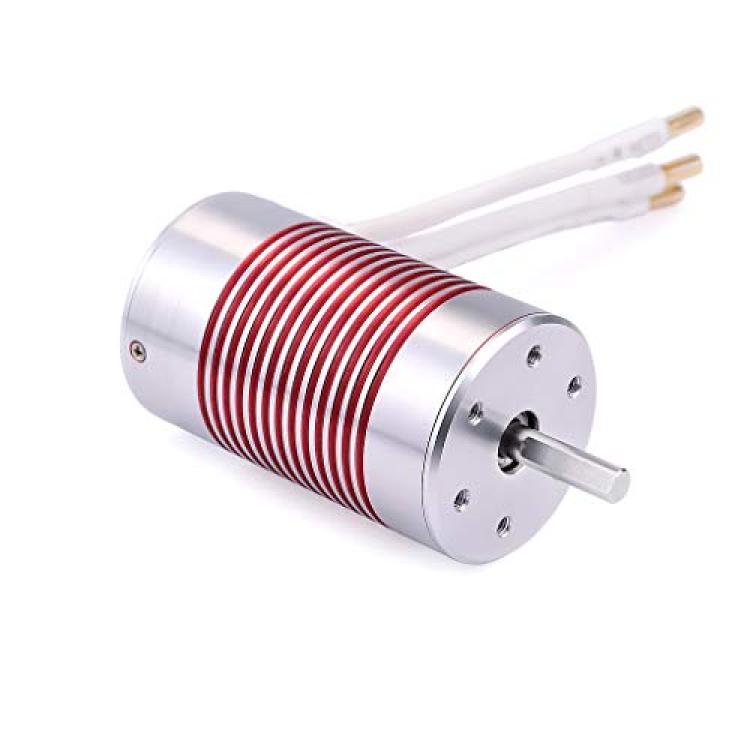

Surpass Hobby 3660 3800KV Platinum Waterproof Brushless Motor Engine Shaft 5.0mm for 1/10 RC Car Truck Model
Availability: Pre-Order, Inquiry Price
About this product
*4 Pole 12 Slot Hi-torque Motor Design

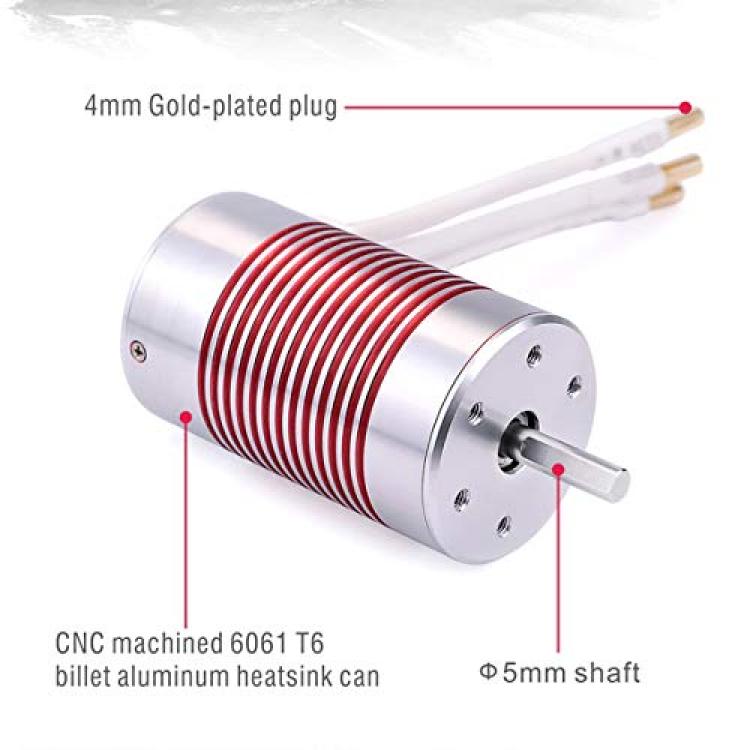

*CNC Machined 6061 T6 Billet Aluminum Heatsink Can
*High Purity Copper Windings Maximizes Efficiency；High RPM ABEC5 Oversized Bearings
*Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws
*Precision balanced rotor,smoothness for best reliability and maximum RPM
Description
Feature:
?4 Pole 12 Slot Hi-torque Motor Design
?CNC Machined 6061 T6 Billet Aluminum Heatsink Can
?High Purity Copper Windings Maximizes Efficiency
?High RPM ABEC5 Oversized Bearings
?Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws
?Precision balanced rotor,smoothness for best reliability and maximum RPM
?Stator - Super Thin (0.35mm) Laminations
?Removable/Replaceable Rotor
?Precision Engineered for Maximum Energy Conversion

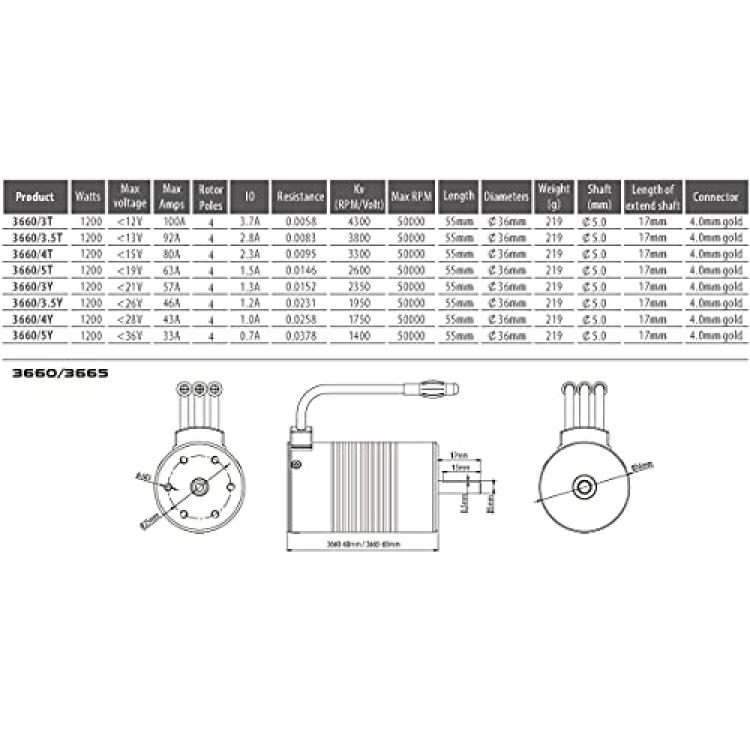

Brand name: SURPASS-HOBBY
Model: 3660

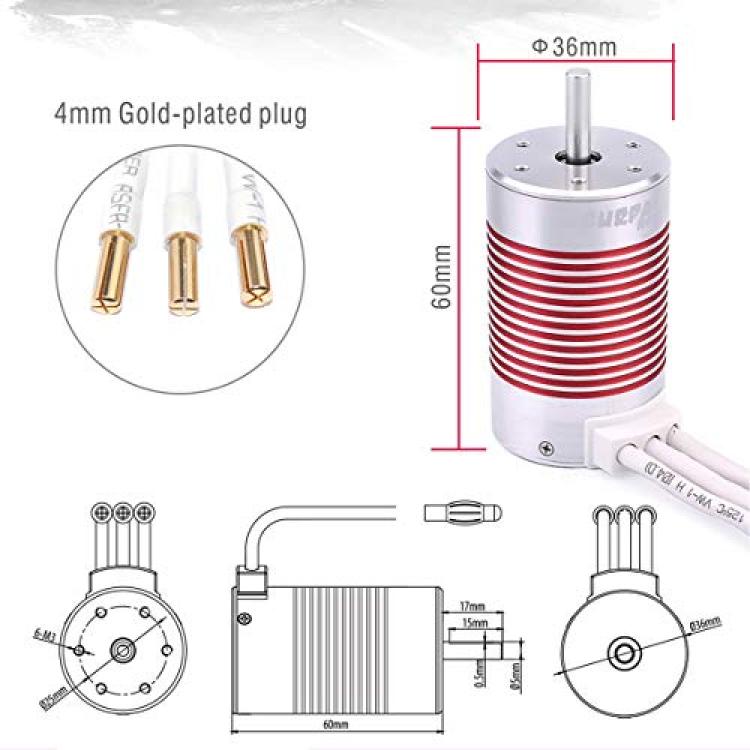

Dimension: R36 * 60mm
KV(RPM/V): 3800KV
Poles: 4
Watts: 1200W
Max Voltage:<13V
Maz Amps: 92A
IO:2.8A
Resistance:0.0083
Max.RPM:50000
Shaft diameter: 5mm

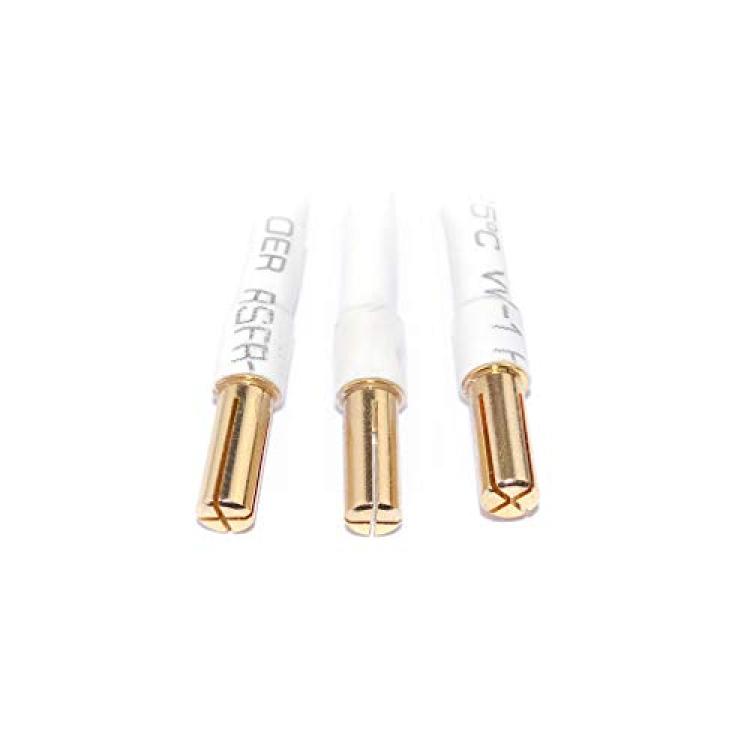

Connector: 4.0mm gold plug
Weight :217G
Package list:
1 x Platinum 3660 Waterproof Motor
