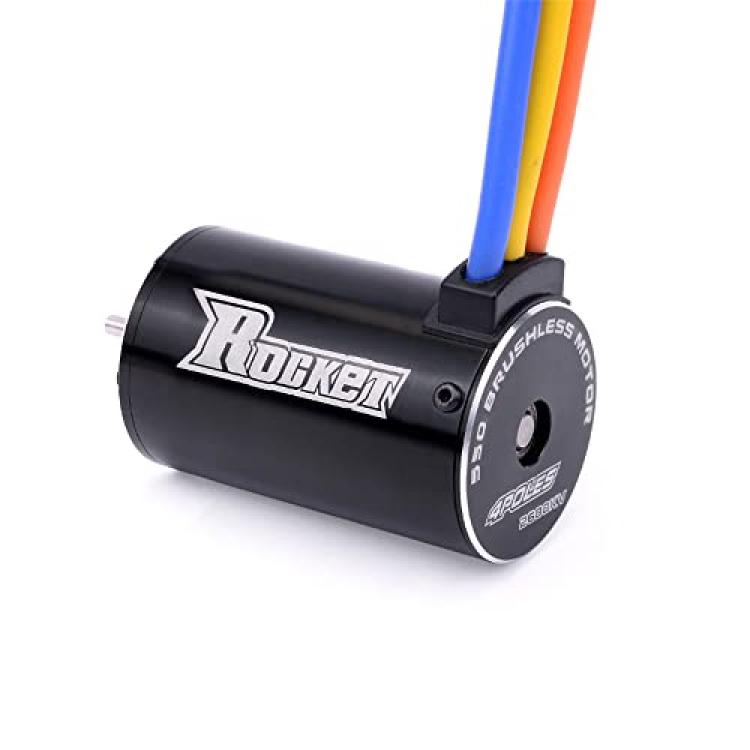

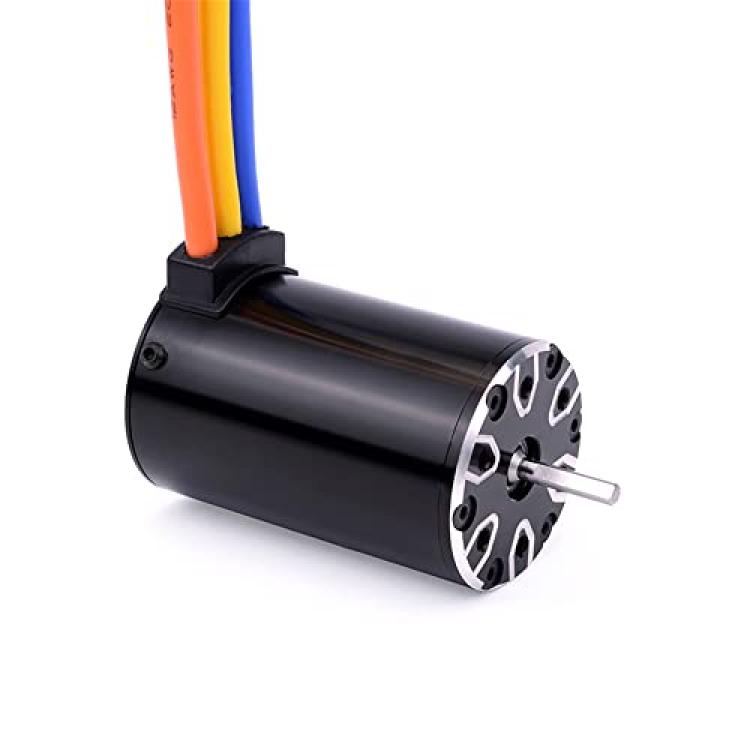

SURPASS HOBBY Rocket 550 4 Poles Sensorless Brushless Motor 3500KV Shaft 5.0mm for 1/10 4WD Truck RC Car
Availability: Pre-Order, Inquiry Price
About this product
*4 Poles 12 Slots Hi-torque motor design
*CNC Machined 6061 T6 billet aluminum heatsink can
*High purity copper windings maximizes efficiency; High RPM ABEC5 oversized bearings
*Universal fit, fits all 1/10th brushless cars-multi-mounting system for M3 screws
*Precision balanced rotor, smoothness for best reliability and maximum RPM
Description
Features:
*4 Poles 12 Slots Hi-torque motor design
*CNC Machined 6061 T6 billet aluminum heatsink can
*High purity copper windings maximizes efficiency
*High RPM ABEC5 oversized bearings
*Universal fit, fits all 1/10th brushless cars-multi-mounting system for M3 screws
*Precision balanced rotor, smoothness for best reliability and maximum RPM
*Stator-super thin(0.2mm) laminations
*Removable/Replaceable rotor
*Precision engineered for maximum energy coversion
Specification:
Product: 550
KV(RPM/Volt): 3500
Watts: 1200
Max voltage: <14V
Max Amps: 85A
Rotor Poles: 4
IO: 2.5A
Resistance: 0.0089
Max RPM: 50000
Motor size: ø36x55mm
Weight: 220g
Shaft: 5mm
Length of extend shaft: 17mm

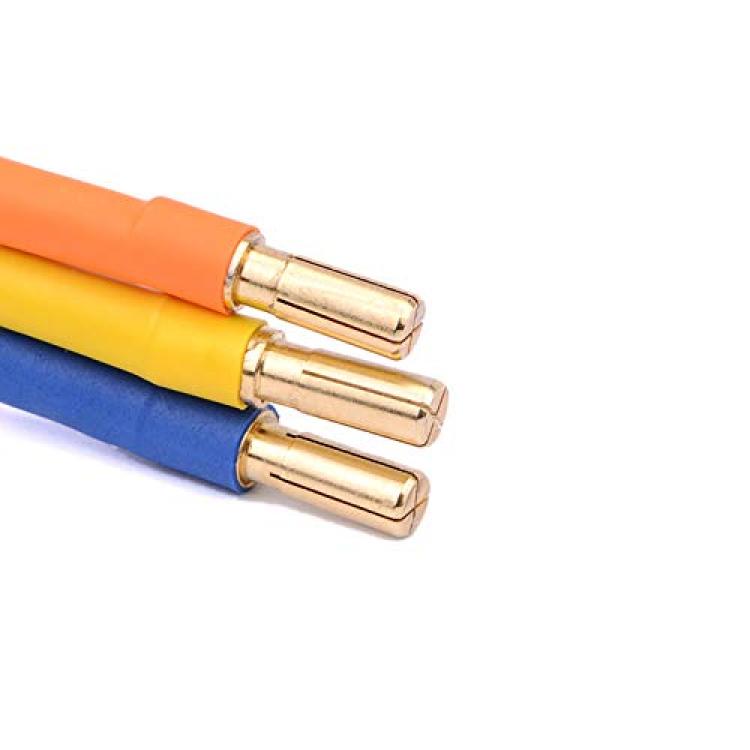

Connector: 4.0mm gold
Package List:
1 x 550 Motor
1 x Manual
