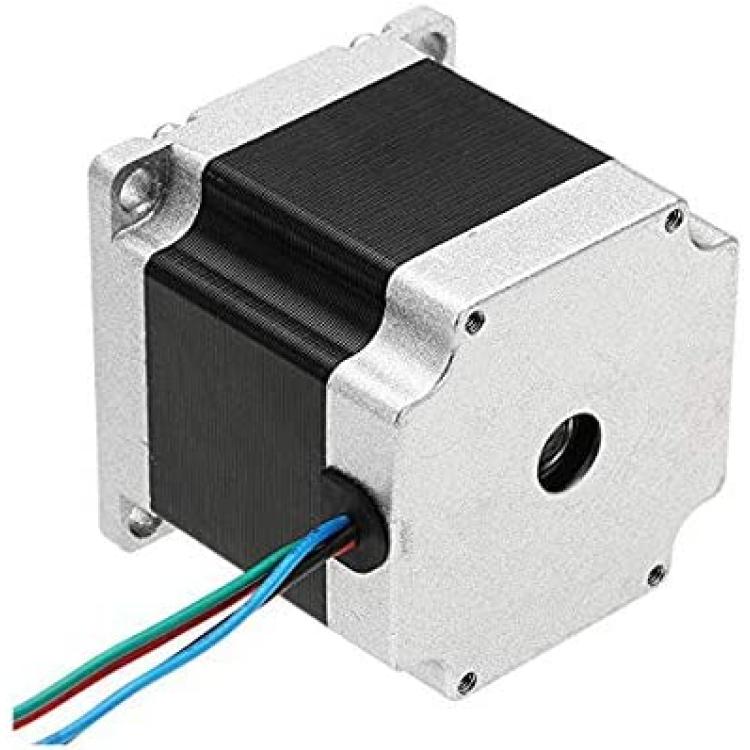

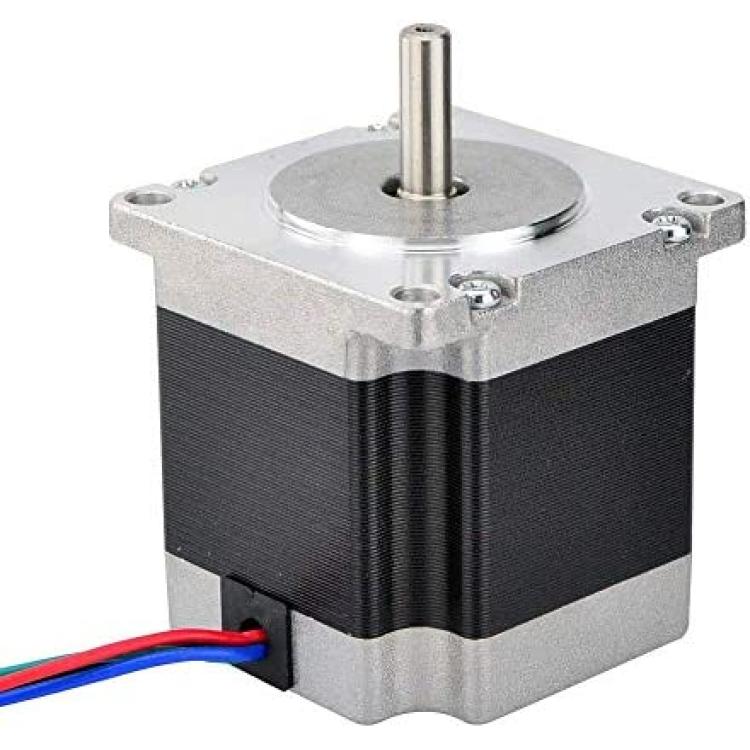

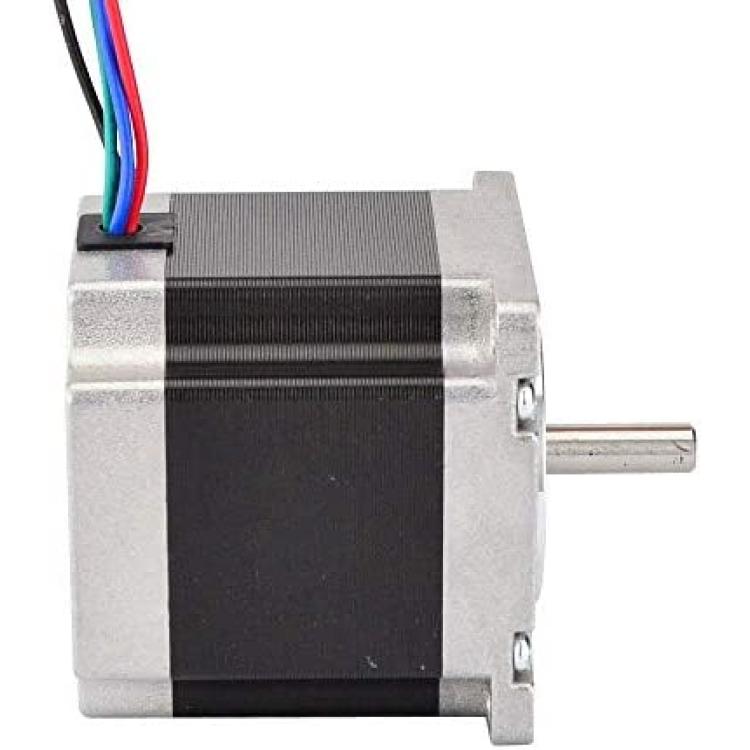

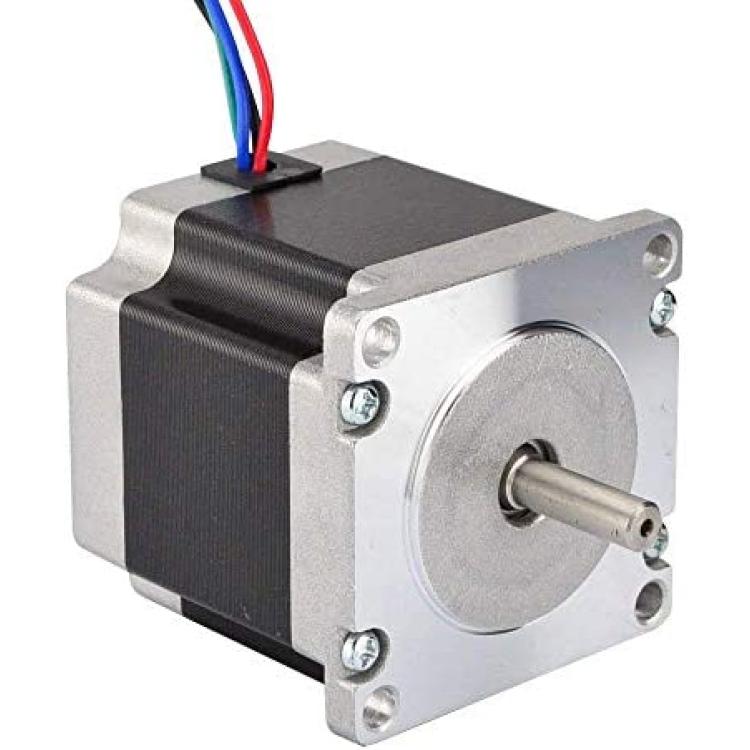

JoyNano Nema 23 Stepper Motor Bipolar 2.8A 1.26N.m Holding Torque 2-Phase 4-Wire 1.8 Deg 56mm Body for 3D Printer or CNC Machine

JoyNano - Enjoy Electronics and Gadgets

This is the most popular Nema 23 stepper motor. Each phase draws current 2.8A, allowing for a holding torque of 1.26Nm (178.5oz.in). Easy to install, durable with alloy steel material.

Electrical Specification:

Electrical Specification:

Physical Specification:

Physical Specification:

Application: Engraving machine, cutting plotter, 3D printer, monitoring equipment, medical equipment, textile machinery, packaging machinery, stage lighting...

Application:

Warning: It should be connected to a constant current or chopper driver as a stepper motor. Connecting the motor directly to a power supply will destroy the motor.

Warning:

Read more

Key Features

Precisely machined full metal body, heat shrink tubing effect to prevent the wire tangled up. It's good ideal for 3D printers, as well as CNC and robotics applications.

Each phase draws current 2.8A. Holding torque up to 1.26Nm (178.5oz.in , low loss stators have better high speed performance.

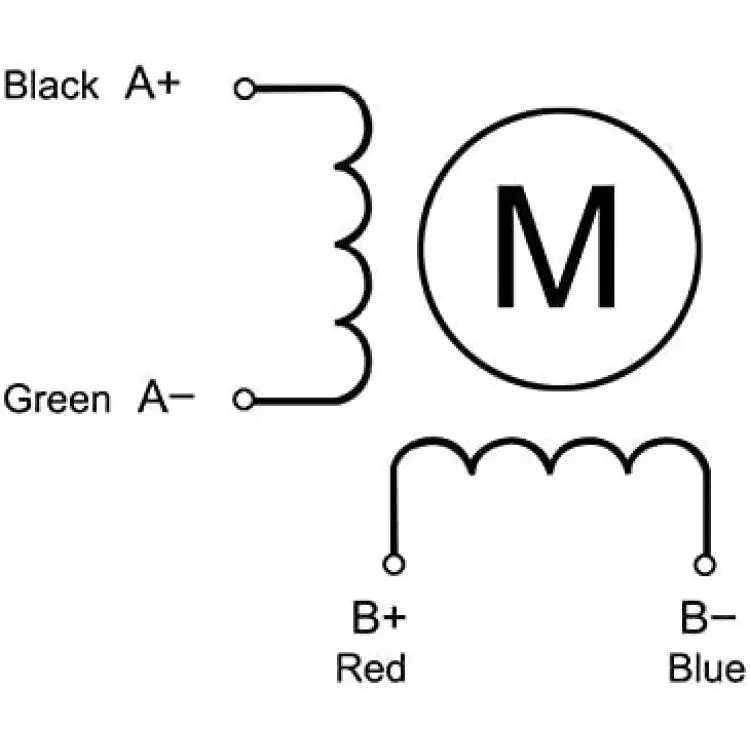

Frame Size: 57 x 57mm; Body Length: 56mm. 2-phase 4-wire, 30cm lead wire with connector, available for rotation of forward and reverse.

As a stepper motor, it should connect to a constant current or chopper driver. Connecting the motor directly to a power supply will destroy the motor.

Motor Type: Bipolar StepperStep Angle: 1.8 deg.Rated Current/phase: 2.8APhase Resistance: 0.95Ohm±10%Phase Inductance: 2.5mH±20%Holding Torque: 1.26Nm(178.5oz.in)Orientation Torque: 350g.cmFrame Size: 57 x 57mmBody Length: 56mmShaft Diameter: 6.35mmNema 23 Stepper Motor, great for 3D printer and CNC.Each phase draws current 2.8A, allowing for a holding torque of 1.26Nm(178.5oz.in).30cm lead wire, 2-phase 4-wire, available for rotation of forward and reverse.With 1.8° step angle (200 steps/revolution)Precisely machined full metal body, size: 57mm*57mm*56mm.
