STEPPERONLINE Nema 11 Bipolar Stepper Motor 0.67A 14oz.in/9.5Ncm 4 Leads DIY Robot CNC

This hybrid bipolar stepper motor has 1.8 deg. step angle (200 steps/revolution).
Each phase draws 670 mA at 4.6V, allowing for a holding torque of 9.5Ncm(13.5oz.in).

Electrical Specification:

* Manufacturer Part Number: 11HS18-0674S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg.
* Holding Torque: 9.5Ncm(13.5oz.in)
* Rated Current/phase: 0.67A
* Phase Resistance: 6.8ohms
* Inductance: 4.9mH+/-20%(1KHz)

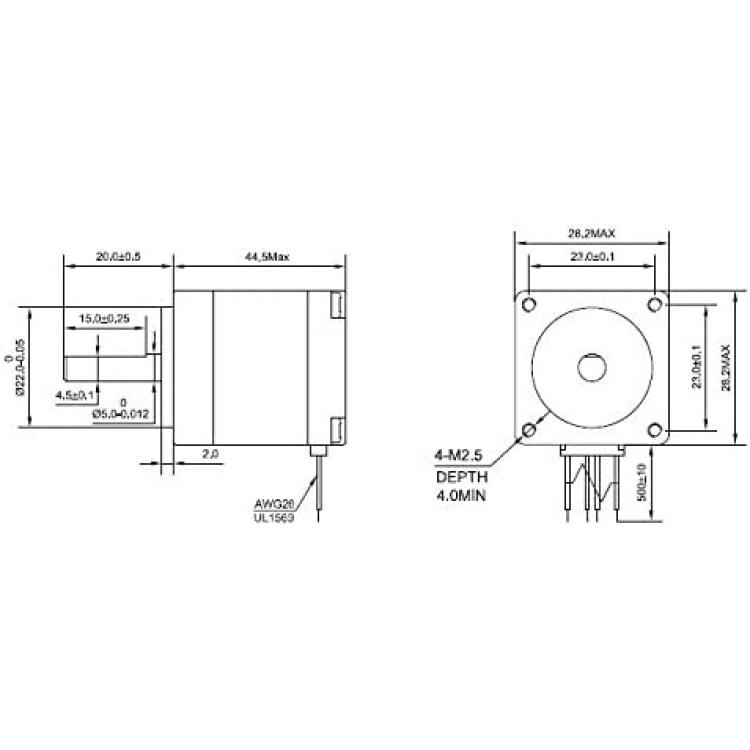

Physical Specification:

* Frame Size: 28 x 28mm
* Body Length: 44.5mm
* Shaft Diameter: 5mm
* Shaft Length: 20mm
* D-cut Length: 15mm
* Number of Leads: 4
* Lead Length: 500mm
* Weight: 180g

Connection:

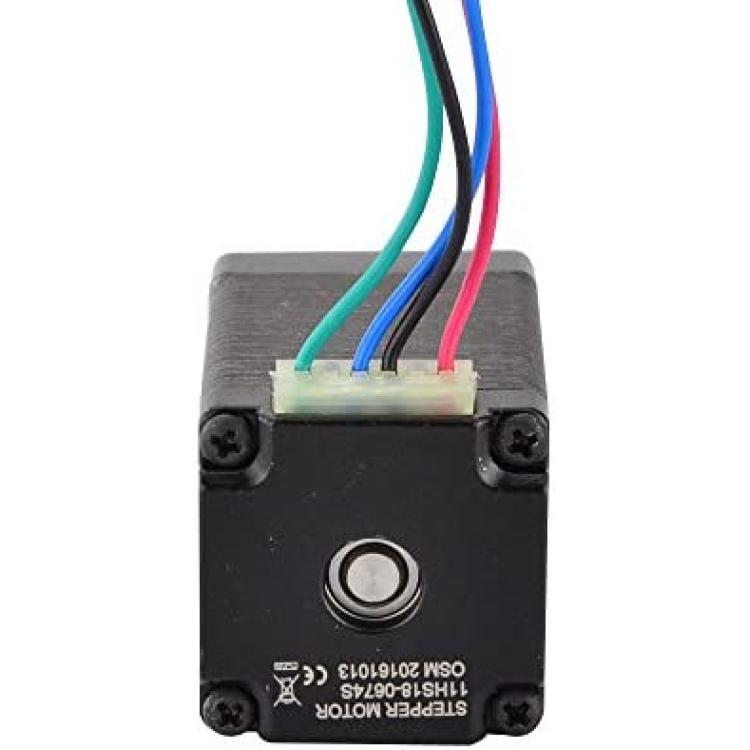

Black(A+), Green(A-), Red(B+), Blue(B-)

Warning:

Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
