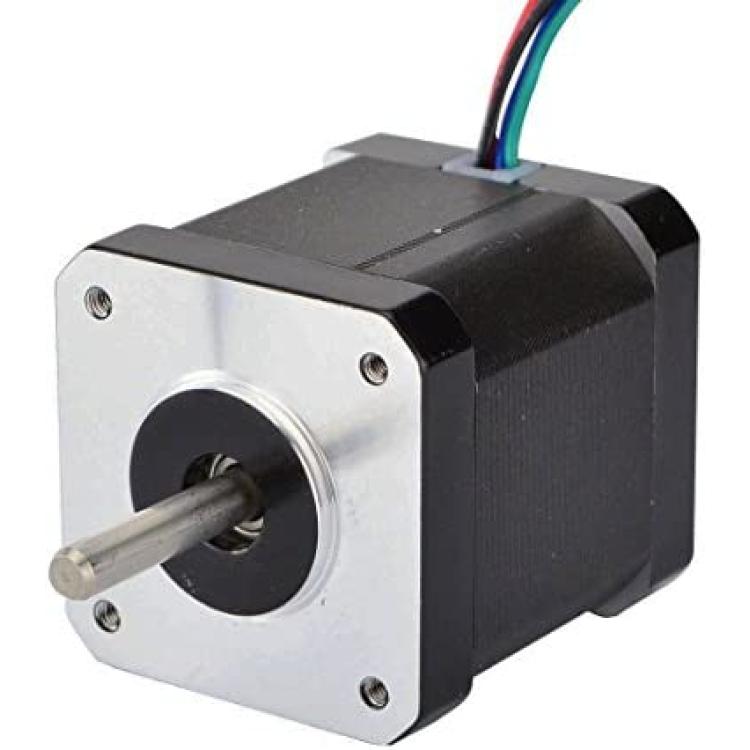

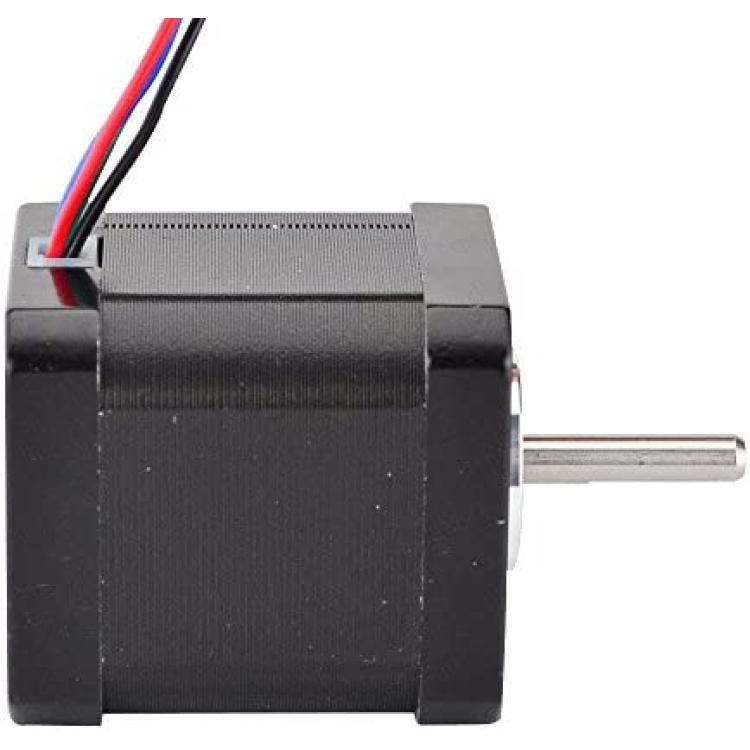

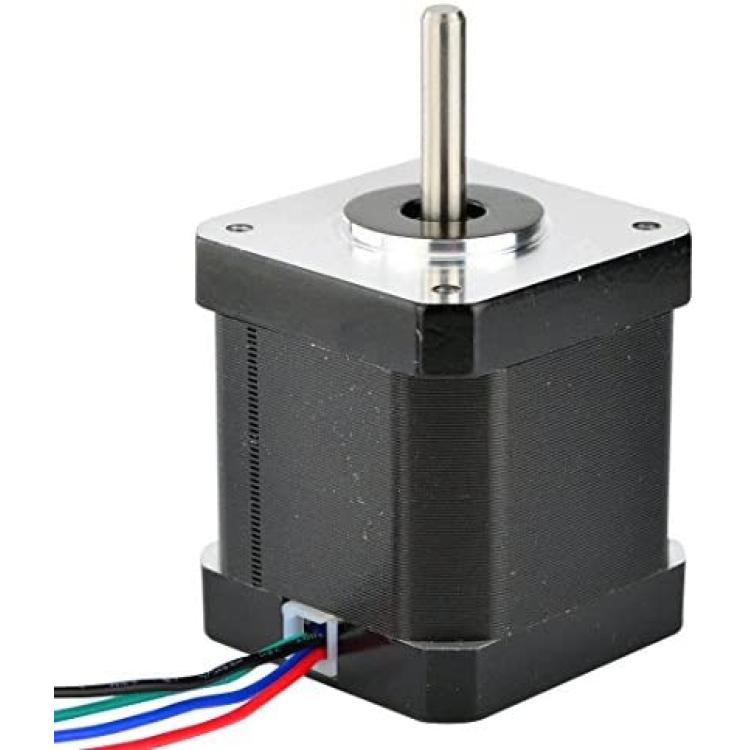

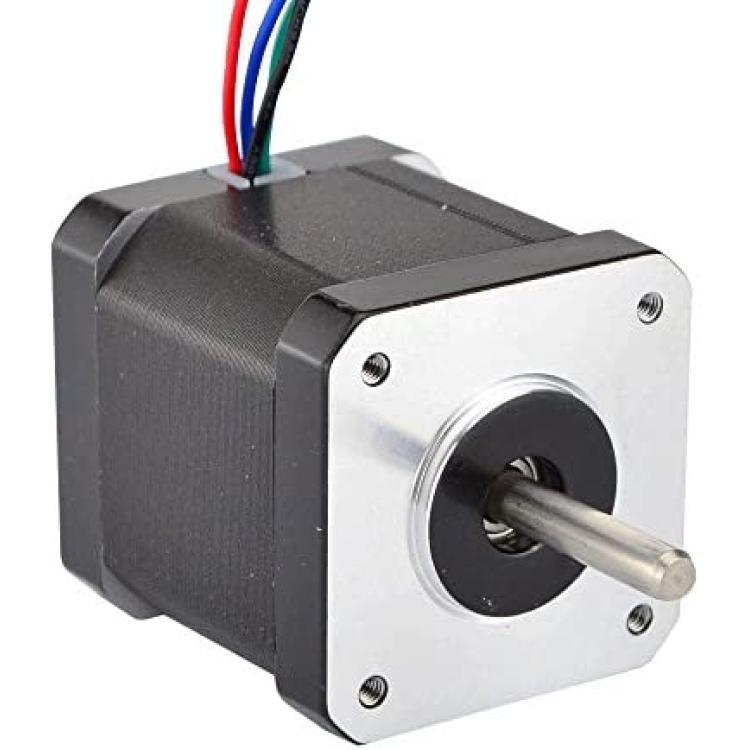

STEPPERONLINE 0.9deg Nema 17 Stepper Motor Bipolar 2A 46Ncm/65oz.in 42x42x48mm 4-Wires DIY CNC
About this product
*High torque, good performance
*46Ncm(65.1oz.in) holding torque
*NEMA 17 bipolar 42x42x48mm mm 4-wire
*0.9 deg. step angle(400 steps/rev)
*Rated current 2A & resistance 1.45 ohms
Description
This high torque and precision bipolar Nema 17 stepper motor with 0.9° step angle (400 steps/revolution). Each phase draws current 2A, allowing for a holding torque of 46Ncm(65.1oz.in).
Electrical Specification
* Manufacturer Part Number: 17HM19-2004S
* Motor Type: Bipolar Stepper
* Step Angle: 0.9°
* Holding Torque: 46Ncm(65.1oz.in)
* Rated Current/phase: 2.0A
* Phase Resistance: 1.45ohms
* Recommended Voltage: 12-24V
* Inductance : 4.0mH±20%(1KHz)
Physical Specification
* Frame Size: 42 x 42mm
* Body Length: 48mm
* Shaft Diameter: ?5mm
* Shaft Length: 24mm
* D-cut Length: 15mm
* Number of Leads: 4
* Lead Length: 500mm
* Weight : 370g
Connection:
Black(A+), Green(A-), Red(B+), Blue(B-)
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
