Xuulan Xianglaa-Motor M20 Long Shaft Micro Motor, 8-14ma Electric Machinery DIY Solar Energy Production, Precious Metal Brush 1.5-6v,
About this product

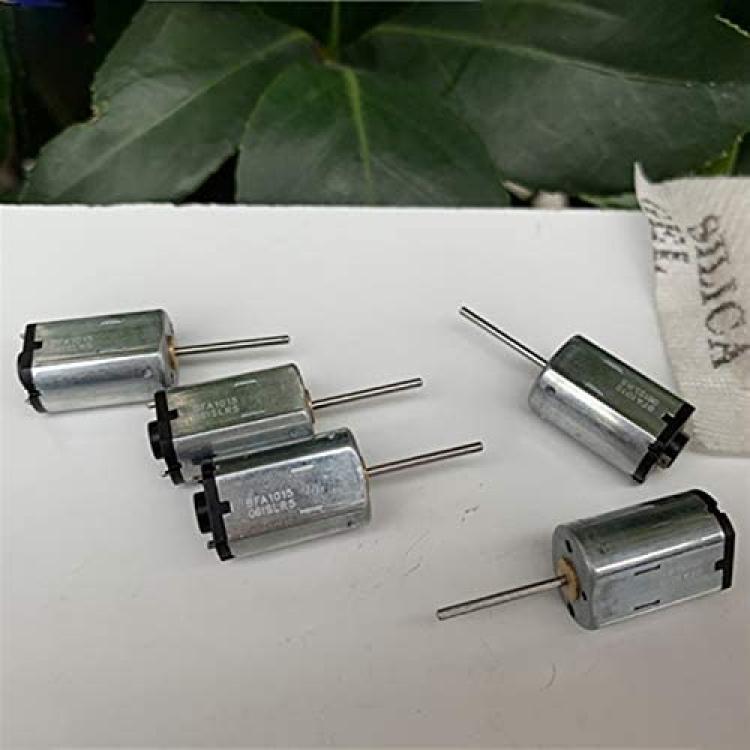

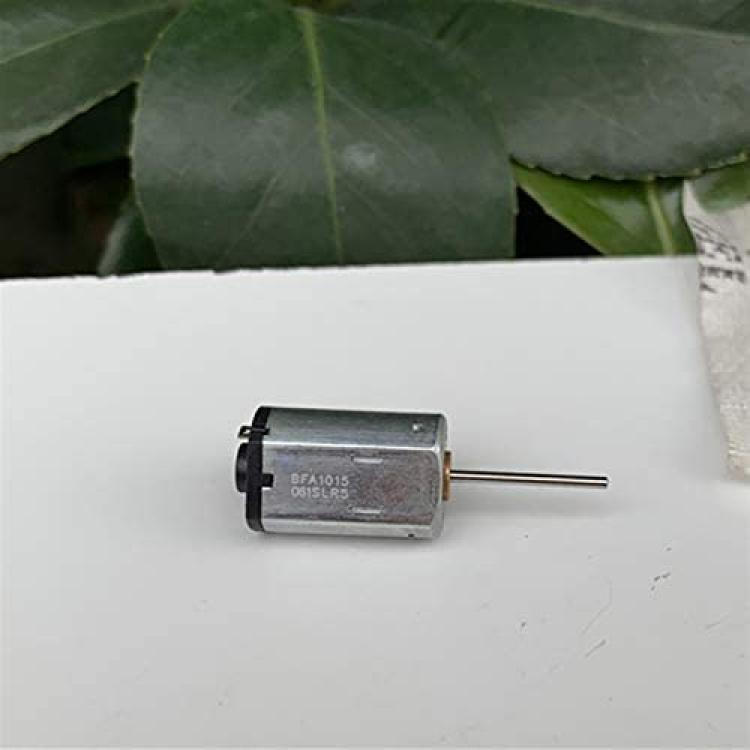

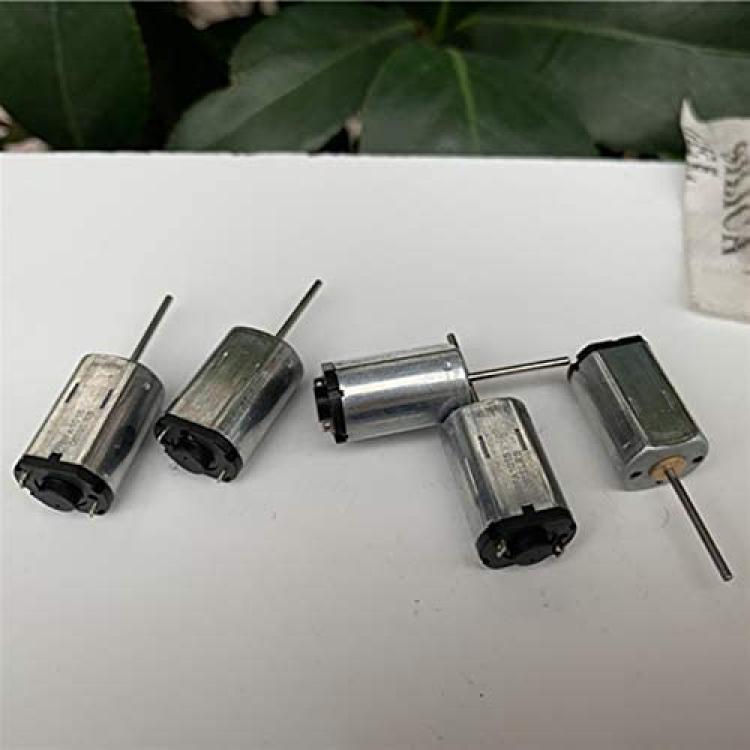

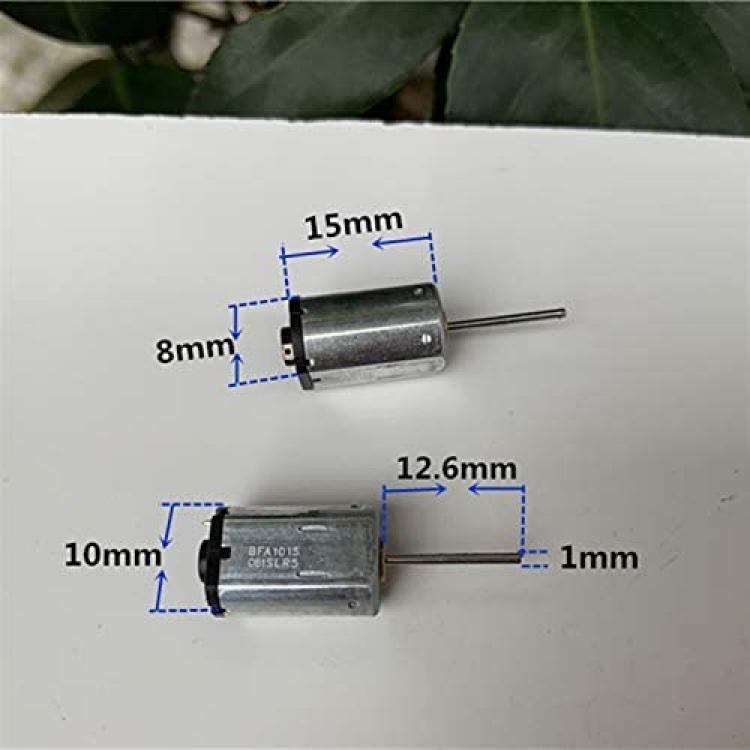

*-Model: M20 motor ,1900-9000rpm
*-Precious metal brush, silver plated commutator.
*-This motor has low current, static operation and low voltage to start work. Suitable for solar diy production, precision electrical appliances, etc.
*High temperature resistance, high wear resistance, strong carrying capacity, strong and durable.
*Used in a variety of small equipment and experimental equipment, with a wide range of applications
Description
-Voltage: 1.5V-6.0V
1.5V,1900 rpm,8 ma
3.0V,4400 rpm,10 ma
5.0V,7200 rpm,13 ma
6.0V,9000 rpm,14 ma
-Note: There are errors in the values of motor current and speed. The above values are for reference only.
Package include:1pc*motor
