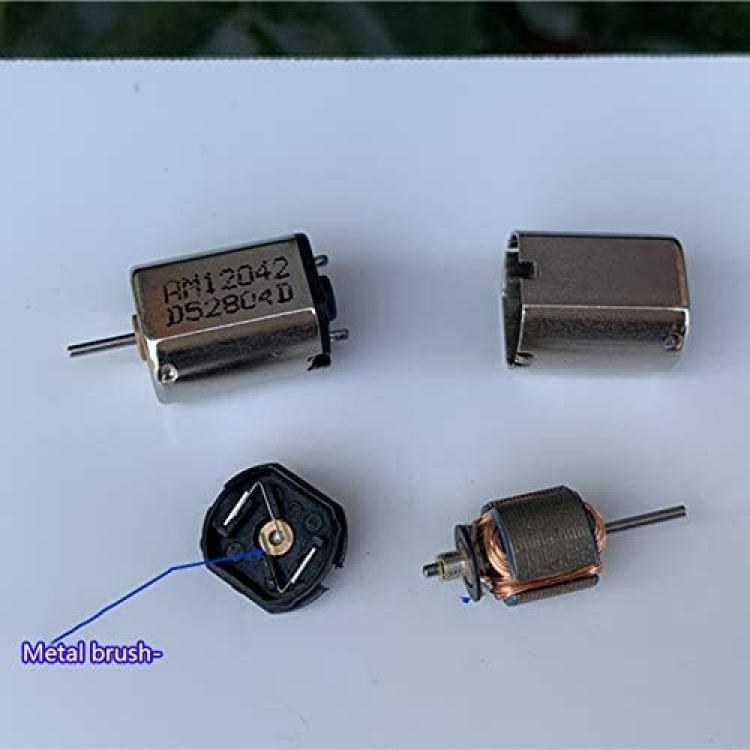

Xuulan Xianglaa-Motor Small Mini N20 Motor, High Speed Strong Magnetic Precious Metal Brush Engine DIY RC Slot Car, 10mm*12mm,
About this product
*Model: FF-N20 Motor, 10mm*12mm 30500RPM
*Voltage range: DC 1.5V-3.7V
*Tips:This motor must be used within the voltage range described in the details (if it exceeds the used voltage range, it may damage the motor);
*High temperature resistance, high wear resistance, strong carrying capacity, strong and durable.
*Used in a variety of small equipment and experimental equipment, with a wide range of applications
Description
1.Model: FF-N20 Motor
2.Voltage range: DC 1.5V-3.7V
3.Test data:
Voltage:1.5V No-load speed:12700RPM Current:65mA
Voltage:3.0V No-load speed:24000RPM Current:95mA
Voltage:3.7V No-load speed:30500RPM Current:120mA

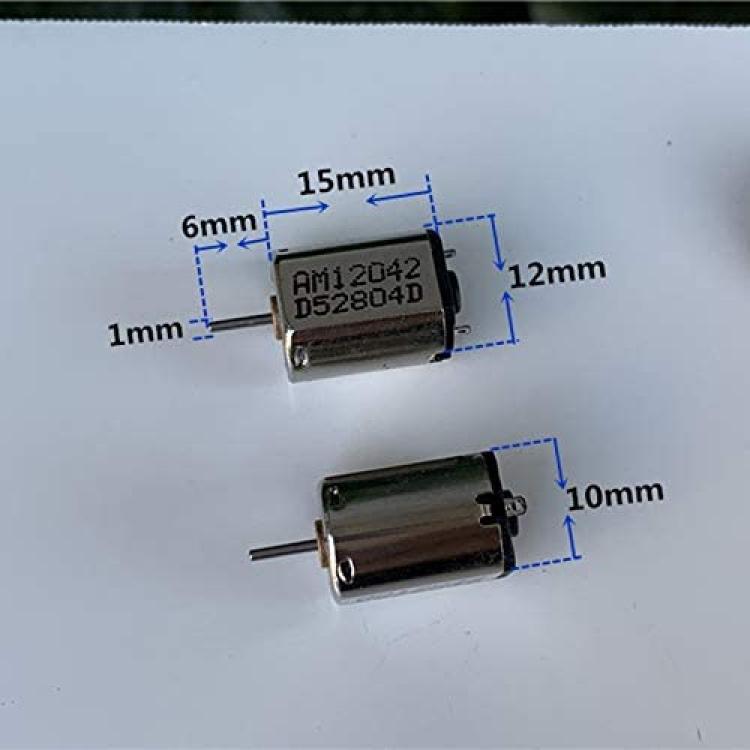

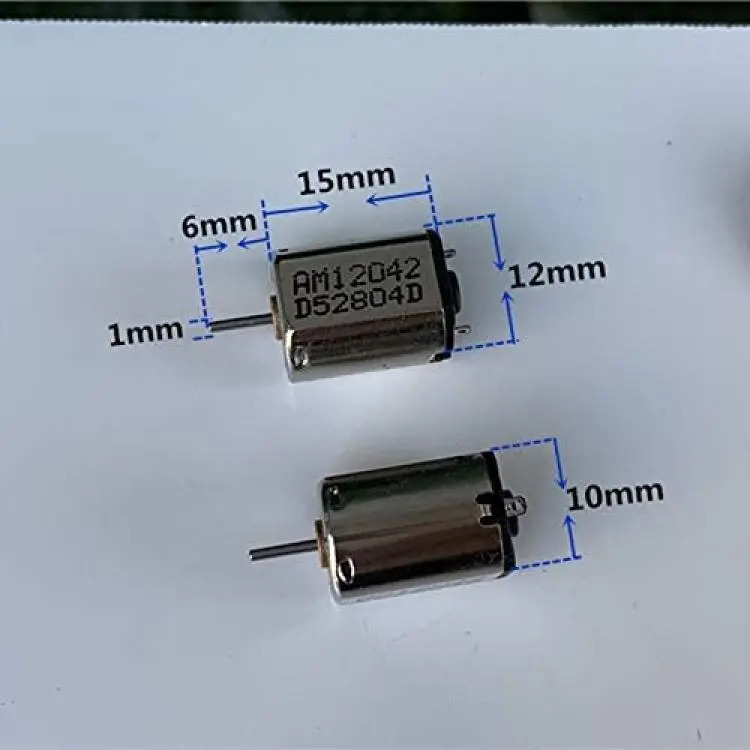

4.Motor size: 10*12*15mm
5.Output shaft diameter: 1mm
6.Output shaft length: 6mm
7.Weight: 6g
Package Include:
Motor x 1pcs
