Xuulan Xianglaa-Motor Precious Metal Brush Motor, for DIY Small USB Fan RC Car Electric Toy Boat Model, DC 3V-6V Micro Mini 260 Motor,
About this product

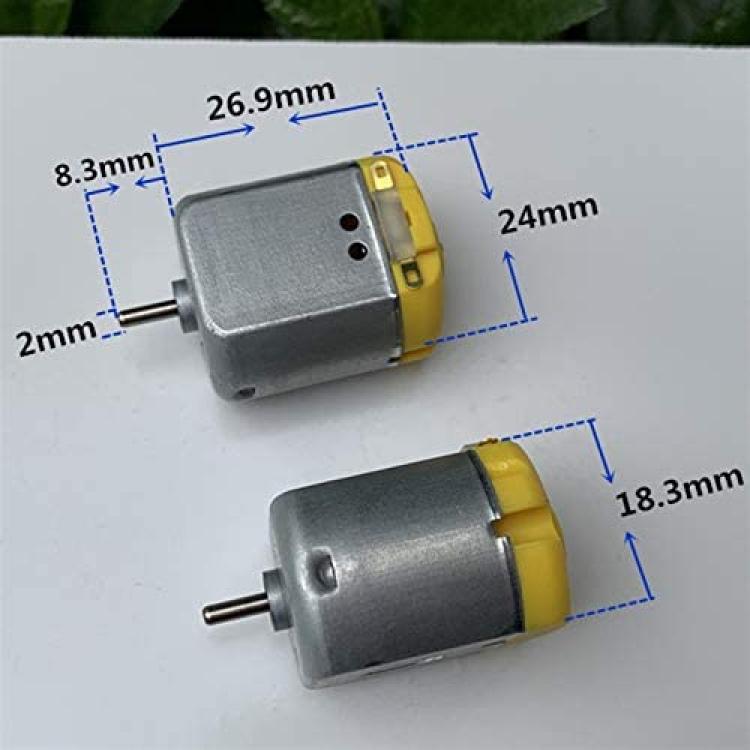

*Output shaft length: 8.3MM
*Weight:30g
*Output shaft diameter: 2.0 MM
*High temperature resistance, high wear resistance, strong carrying capacity, strong and durable.
*Used in a variety of small equipment and experimental equipment, with a wide range of applications
Description
Output shaft length: 8.3MM
Weight:30g
Voltage Range:3.0V-6.0V
Test data
Voltage: 3.0V
No-load Speed: 11500RPM
No-load Current: 300mA
----------------------------
Voltage: 3.7V
No-load Speed: 14000RPM
No-load Current: 320mA
----------------------------
Voltage: 5.0V
No-load Speed: 19500RPM
No-load Current: 340mA
----------------------------
Voltage: 6.0V
No-load Speed: 24000RPM
No-load Current: 400mA
Package Include
Motor x 1 PCS
