Xuulan Xianglaa-Motor Micro Electric 300 Gear Motor, DIY Stage Light Robot Arm, Slow Speed Reduction Mute Reducer Motor,
About this product
*Motor diameter: 24 MM (300 motor)
*Gear calculation outer diameter: 32 MM, 1 : 600 DC 6V-12V 7.2V 9V
*Geared motor height: 25.3 MM (motor + gearbox)
*High temperature resistance, high wear resistance, strong carrying capacity, strong and durable.
*Used in a variety of small equipment and experimental equipment, with a wide range of applications
Description
Motor diameter: 24 MM (300 motor)
Gear calculation outer diameter: 32 MM
Geared motor height: 25.3 MM (motor + gearbox)

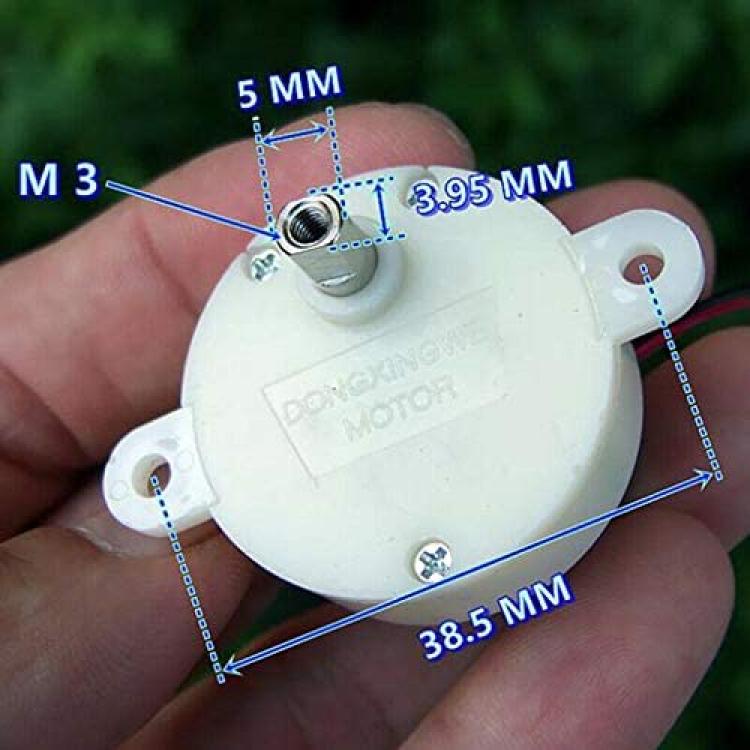

Output shaft diameter: 5 MM (double flat 3.95 MM)
Output shaft length: 9 MM
Reduction ratio : 1 : 600 (approx.)
Weight : 29g
Test data:
Voltage : DC 6V
Current : 19 MA
Speed : 3.5RPM
----------------------------
Voltage : DC12V
Current : 48 MA
Speed : 7.5RPM
Package Include:
1PCS * Gear Motor
