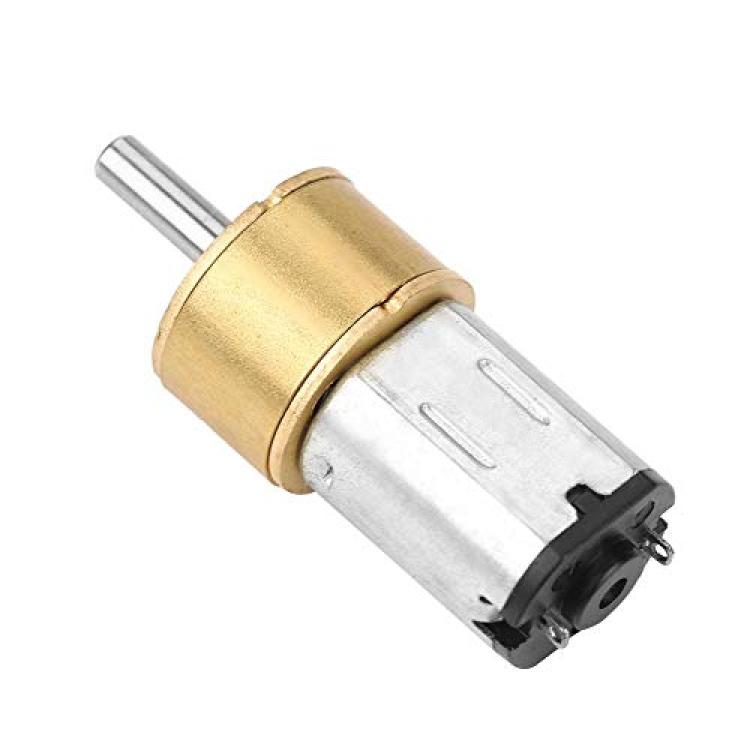

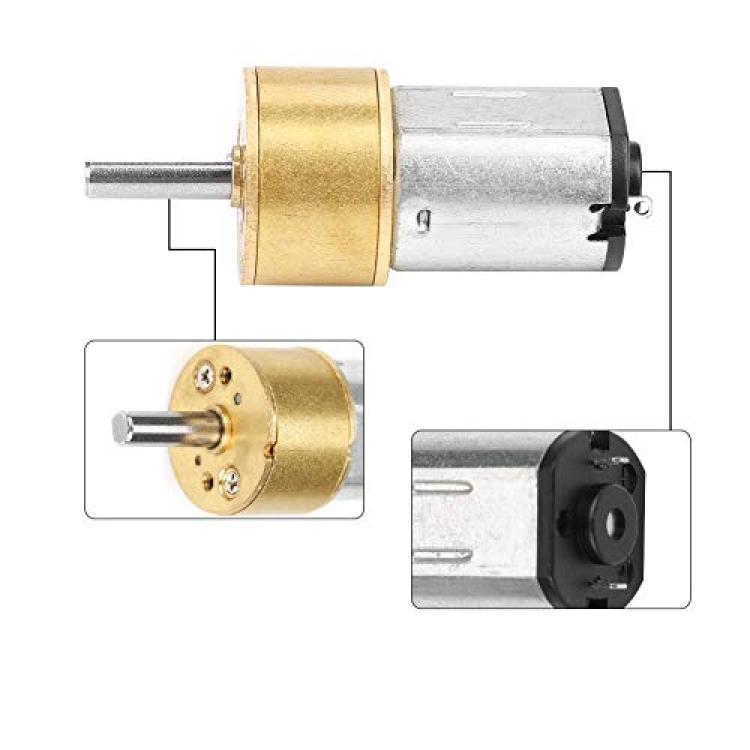

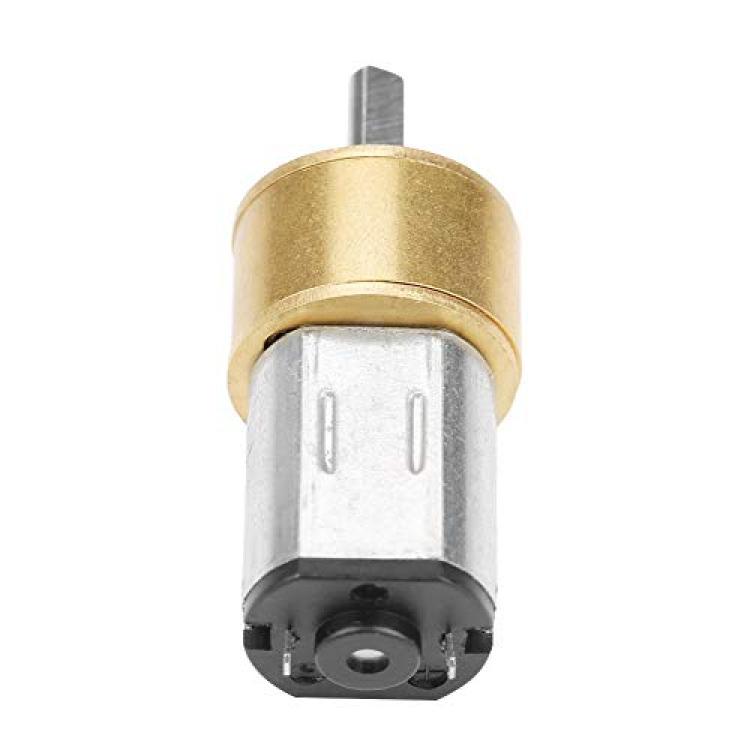

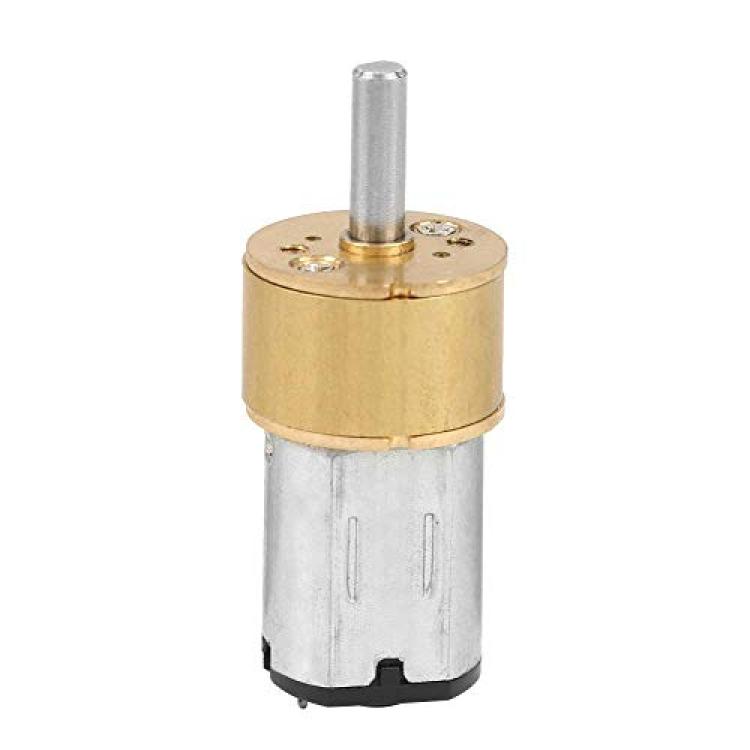

DC 6V Gear Motor, 14MM N20 High Torque Electric Micro Speed Reduction Geared Motor for Robot DIY (600RPM)
Availability: Pre-Order, Inquiry Price
About this product
*WIDE APPLICATION: This electric gear motor is widely used in Electronic locks, DIY toy cars, little robots, tracking cars, balancing cars and so on
*HIGH QUALITY: This DC gear motor features large moment of force, low speed, and low noise. This gear motor adopts seal form structure, have good dustproof effect

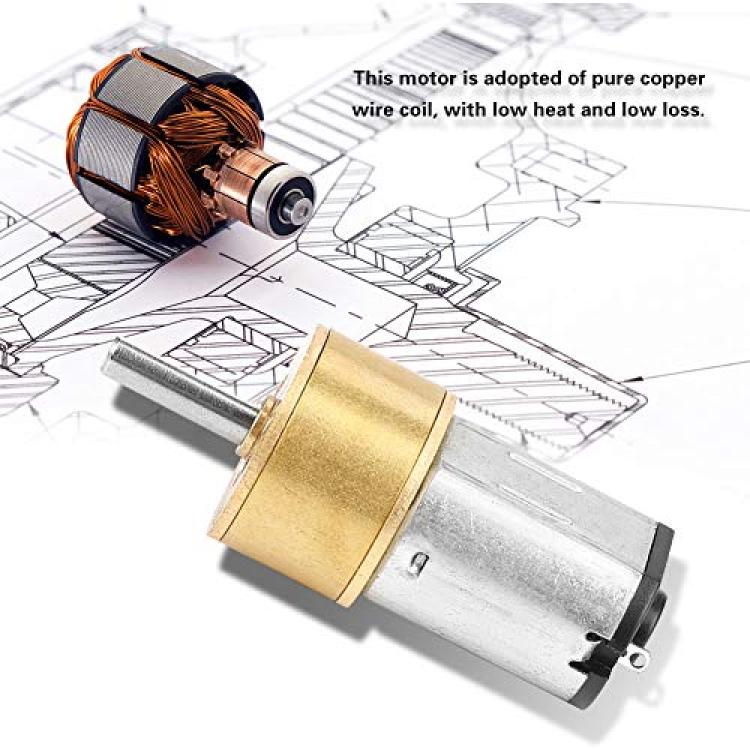

*LOW HEAT AND LOW LOSS: This reduction motor is adopted of pure copper wire coil, with low heat and low loss.
*LONG SERVING LIFE: The high torque speed reduction motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.

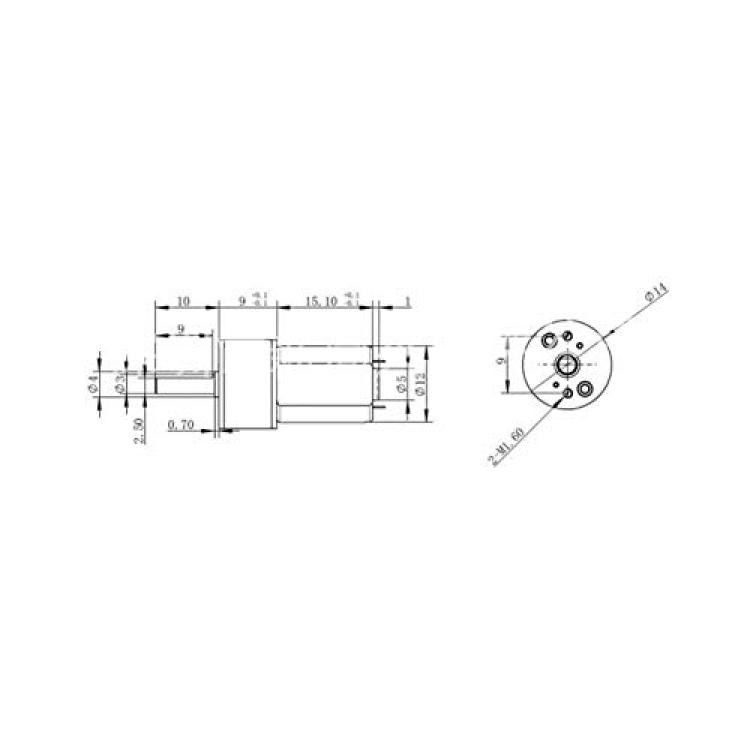

*6V DC GEAR MOTOR SIZE: Gear Box diameter: 14mm/0.6in, Output shaft length: 10mm/0.4in, Output shaft diameter: 3mm/0.1in, cutting edge 0.5mm, D-shaped shaft. Weight: Approx.13g/0.5oz.
Description
Specification:
Voltage: 6V DC
Speed: 60 RPM, 100 RPM, 300 RPM, 600 RPM(Optional)
Gear Box diameter: 14mm/0.6in
Output shaft length: 10mm/0.4in
Output shaft diameter: 3mm/0.1in, cutting edge 0.5mm, D-shaped shaft

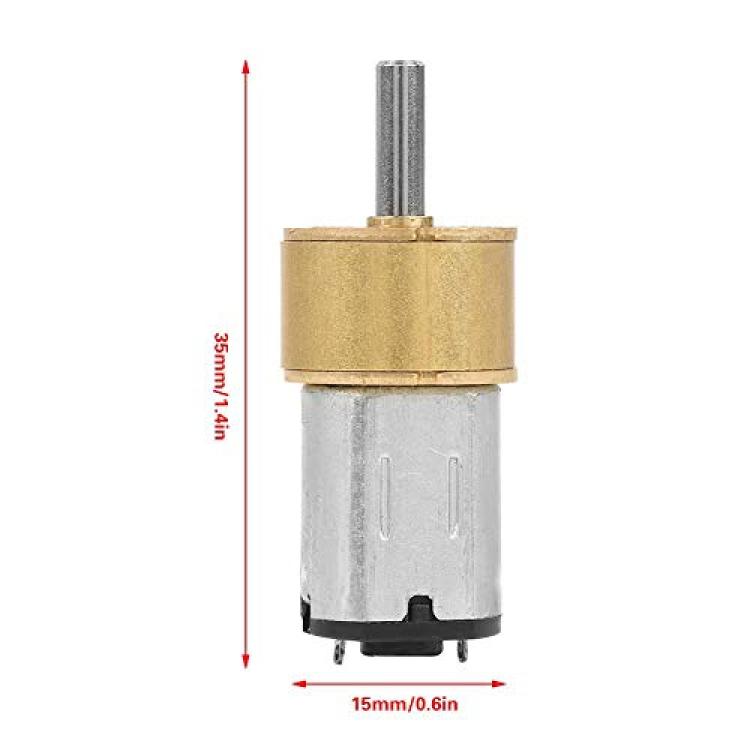

Size: 35*15mm/1.4*0.6in
Weight: Approx.13g/0.5oz
Voltage --- Gear ratio --- No load --- Load --- Stall
Speed(Optional) --- Current --- Speed Current --- Moment of force --- Current Moment of force
6V ---1: 298 --- 60RPM --- 30mA --- 55RPM --- 45mA --- 460g.cm --- 1.1A --- 4.2kg.cm
6V --- 1:100 --- 100RPM --- 30mA --- 83RPM --- 45mA --- 320g.cm --- 1.1A --- 2.25kg.cm
6V --- 1: 50 --- 300RPM --- 40mA --- 240RPM --- 50mA --- 140g.cm --- 1.1A --- 2.0kg.cm
6V --- 1: 50 --- 600RPM --- 50mA --- 500RPM --- 60mA --- 65g.cm --- 1.1A --- 2.2kg.cm
Package list:
1 x DC Gear motor
