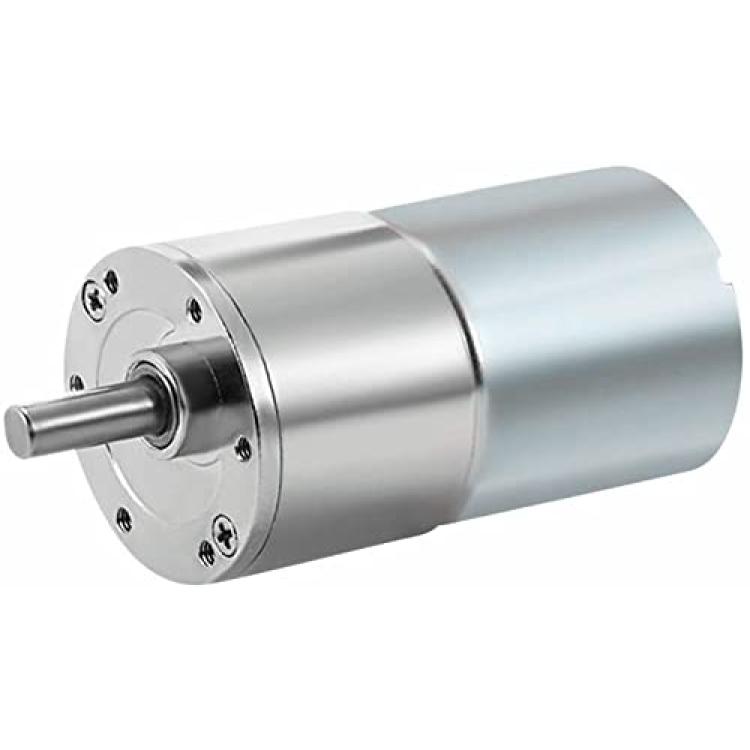

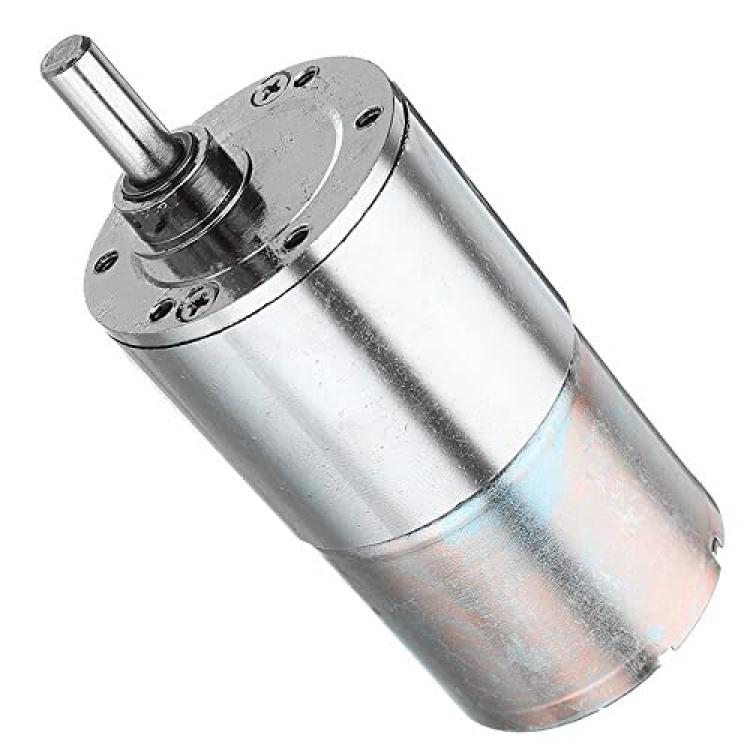

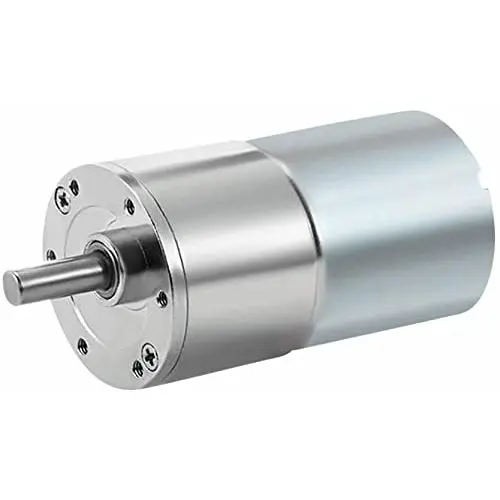

DC 12V 1000RPM Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Eccentric Output Shaft 37mm Diameter Gearbox
Availability: Pre-Order, Inquiry Price
About this product
*Rated Voltage: DC 12V Reduction Ratio: 1:3 No-Load Speed: 1000RPM

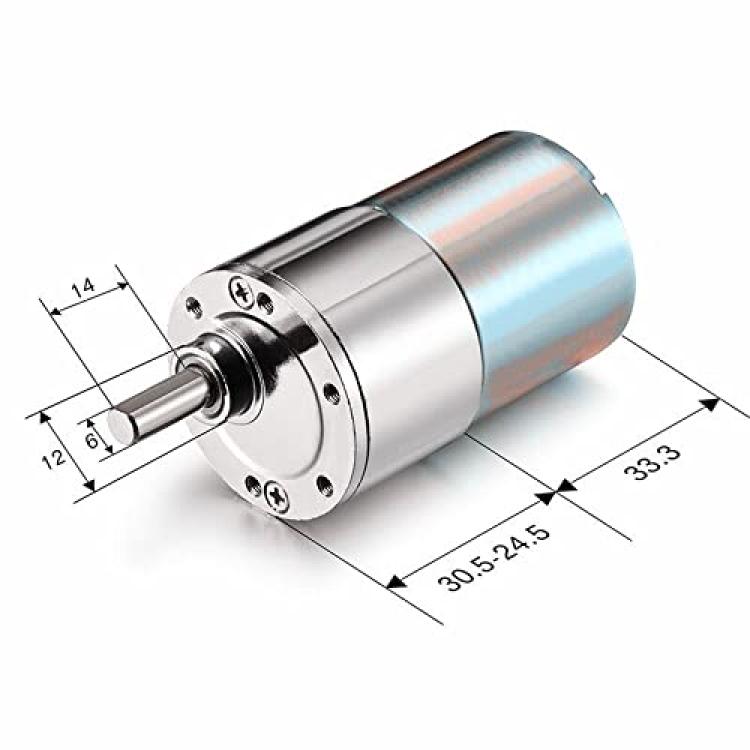

*Rated Torque: 0.15Kgf.cm Rated Current: 0.35Amp D Shaped Output Shaft Size: 6*14mm (0.24" x 0.55") (D*L)
*Gearbox Size: 37 x 23mm (1.46" x 0.91") (D*L) Motor Size: 36.2 x 33.3mm (1.43" x 1.31") (D*L) Mounting Hole Size: M3 (not included)
*Net Weight :130g；Packages: 1 x DC Geared Motor，
*Please see clearly the size and function of this product when you buy it. Thank you for buying! (If you have any questions about this product, welcome to email consultation, we will reply you within 24 hours!)
Description

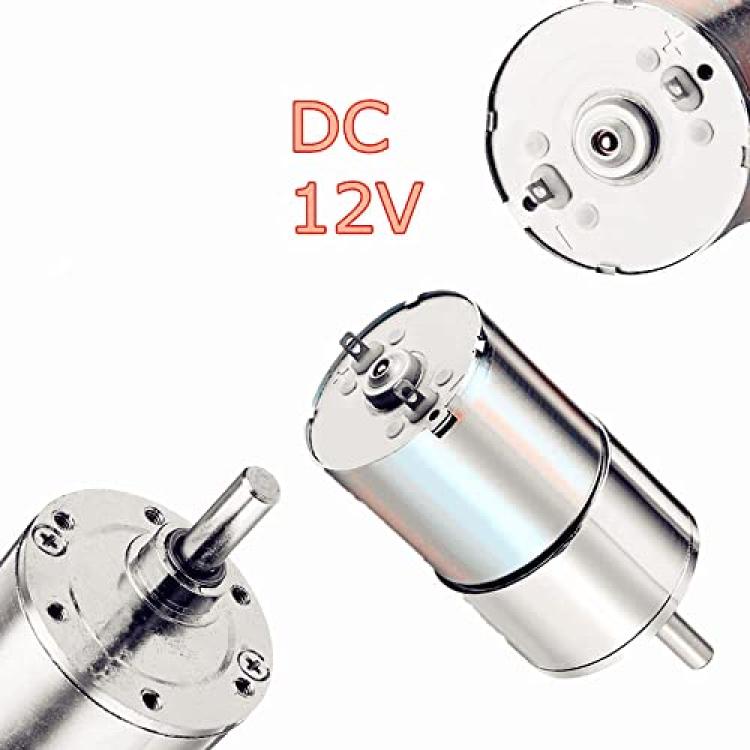

1.Use tolerance: Pay attention to the use of voltage and current range, otherwise the motor performance and motor life will decline. 2.Handling motors: Gently, as far as possible the use of motor shell part. 3.Motor wiring: Red lead to the positive electrode, black lead to the negative pole, if reversed, the motor rotation in the opposite direction. 4.Overload: As far as possible within the specified load range, prohibit motor blocking or close to the stall state for too long time to runs. Otherwise, the motor will burn out. 5.Motor storage: -- Storage temperature: 0? - 40?; -- Storage humidity: 15% -90% RH; -- Avoid placing in high temperature, high humidity and corrosive gases. 6.Motor use temperature: 0? - 70?
