Fielect Gear Motor DC 6V 646 RPM High Torque Electric Motor Micro Speed Reduction Motor Eccentric Output Shaft for Car Robot Model DIY Engine
About this product
*【Parameter】 - Model:JGA25-370 ; Voltage:6 V; Rated-load torque(kg.cm):0.08 ; No-load current(A):0.23 ; No-load speed(rpm):646 ; Rated-load current(A):0.38 ; Rated-load speed(rpm):516.
*【Features】 - The motor benefits from high torque and low noise, light weight and large torque. Gear motors are mainly used to reduce the speed of a series of gears, thereby generating greater torque.
*【Function】- This motor has pure copper wire, low power consumption and mute, power saving and low sound. The bearing quality and the service life of the geared motor are improved, and it is extremely durable.
*【Advantage】 - The miniature DC gear motor shell is made of high-quality carbon steel or high-strength aluminum alloy, which has a long service life and high dimensional accuracy.
*【Application】 - The motor is used in DIY RC Hobby, vehicles, drones, airplanes, etc., the miniature gearbox motor, it is an excellent substitute for the rusty or damaged DC geared motor on the machine, providing you with a quieter and more comfortable working environment.
Description

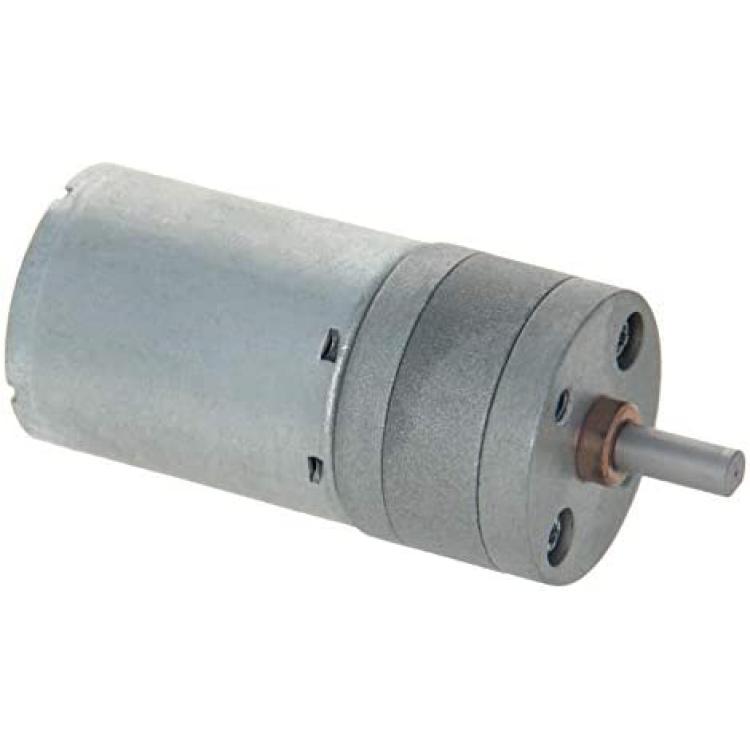

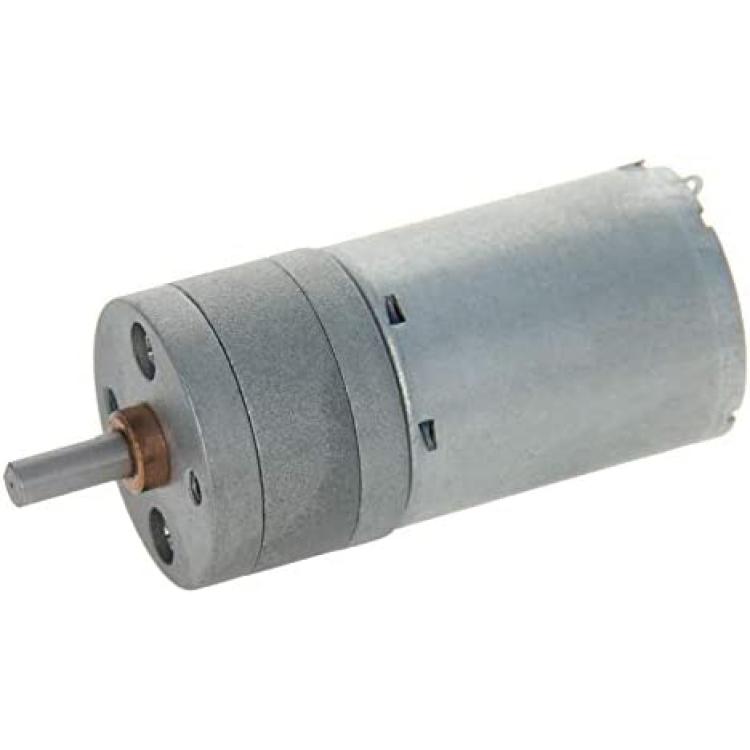

Fielect Electric Gear Motor
Specifications:
Brand:Fielect
Model:JGA25-370
Voltage:6V
Rated-load torque(kg.cm):0.08
No-load current(A):0.23
No-load speed(rpm):646
Rated-load current(A):0.38
Rated-load speed(rpm):516
Product description:
1.Use tolerance: pay attention to the use of voltage and current range, otherwise the motor performance and motor life will be reduced.
2.Carrying the motor: handle with care, try to use the motor shell part.
3.Overload: As far as possible within the specified load range, it is forbidden to run the motor in a locked-rotor or close to a locked-rotor state for a long time. Otherwise, the motor will burn out.
4.Miniature geared motors for electronic door locks, household electronics DIY, household appliances, fans, remote control cars, boats.
Package Content:
1Pcs x Electric Gear Motor
Note:
1.The size of the product are manually measured, please allow slight errors, thank you for your understanding.
2.The actual product and the color of the item shown in the picture may be slightly different from the actual product, please refer to the actual product.
3.Please pay attention to the size of the item before you purchase it.
