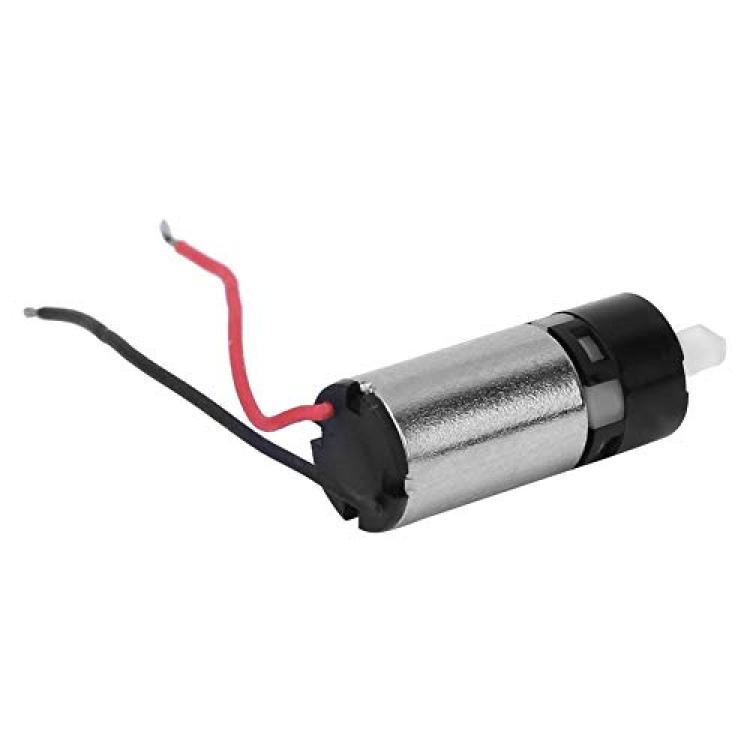

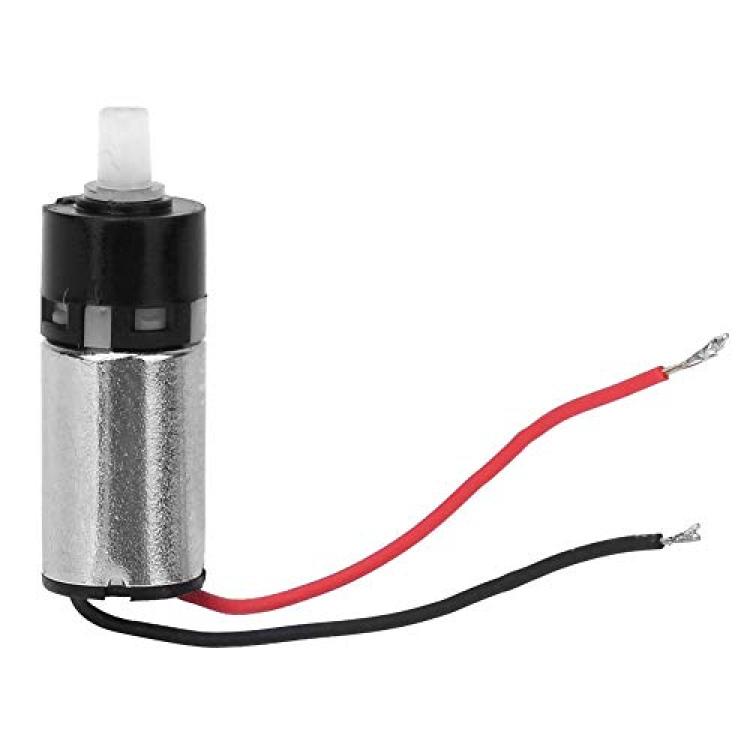

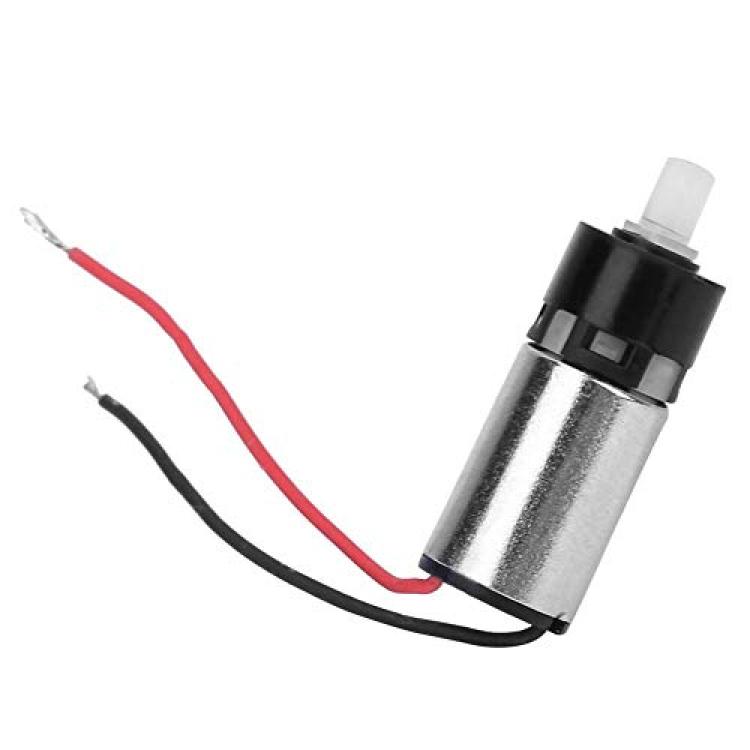

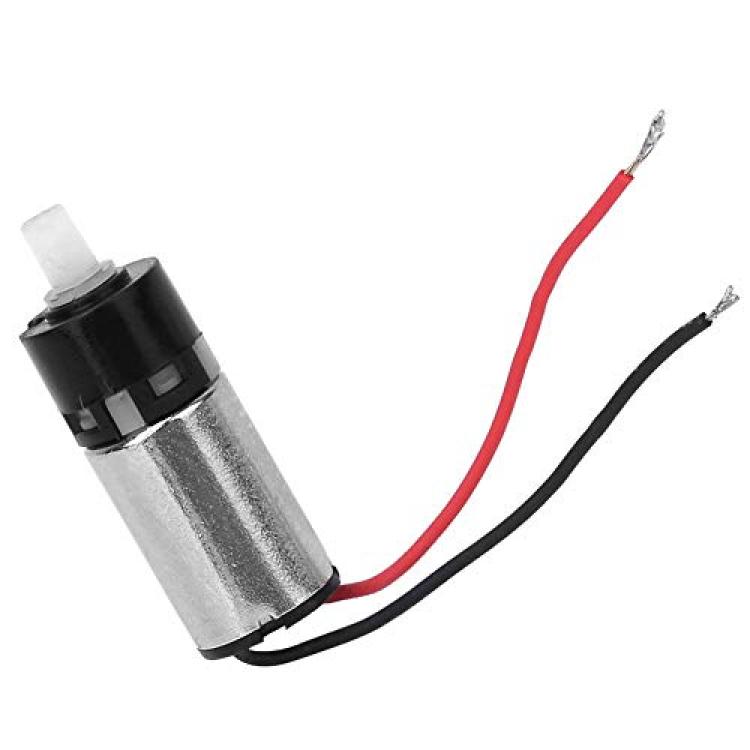

6mm Precision Mini Micro Planetary Reduction High Torque Electric Micro Speed Reduction Gear Motor DC3V Motor(on e Stage)
Availability: Pre-Order, Inquiry Price
About this product
*Features high rigidity, high accuracy, high transmission efficiency (single stage at 97-98%), high torsion /volume ratio.
*Most are mounted on stepper and servo motors to reduce RPM, increase torsion, and match inertia.
*High-temperature resistance, high abrasion resistance, strong load capacity,Sturdy, long life, corrosion resistant, fit for a variety of environment.
*Stable performance, good consistency, low noise and high torsion.
*Using high hardness steel, good toughness,the quality of the bearing and the service life of the gear motor are improved.
Description
Specification:
Condition: 100% Brand New
Item Type: Reduction MotorMaterial: Metal Optional Type: One Stage, Two Stage, Three Stage, Four Stage 6mm One Stage Reduction Motor Parameters:
Rated Voltage: 3.0V DC
Start Voltage: 1DVC
No-Load Current: 50MA
Blocking Current: 230MA
Output RPM: 6420±120RPM
Torsion Used: 5g.cm
Transmission Ratio: 5.14:1
No-Load Noise: < 48DB
6mm Two Stage Reduction Motor Parameters:
Rated Voltage: 3.0V DC
Start Voltage: 1DVC
No-Load Current: 50MA
Blocking Current: 230MA
Output RPM: 1200±120RPMÂ
Torsion Used: 27g.cmÂ
Transmission Ratio: 26.45Â
No-Load Noise: < 48DB
6mm Three Stage Reduction Motor Parameters:
Rated Voltage: 3.0V DC
Start Voltage: 1DVC
No-Load Current: 230MA maximum
Blocking Current: 200MAÂ
Output RPM: 242±120RPMÂ
Torsion Used: 120g.cmÂ
Transmission Ratio: 136.02Â
No-Load Noise: < 48DB
6mm Four Stage Reduction Motor Parameters:
Rated Voltage: 3.0V DC
Start Voltage: 0.5DVCÂ
No-Load Current: 200MA maximum
Blocking Current: 200MAÂ
Output RPM: 46±5RPMÂ
Torsion Used: 180g.cmÂ
Transmission Ratio: 699.5Â
No-Load Noise: < 48DB
Package List:
1 x Reduction Motor
