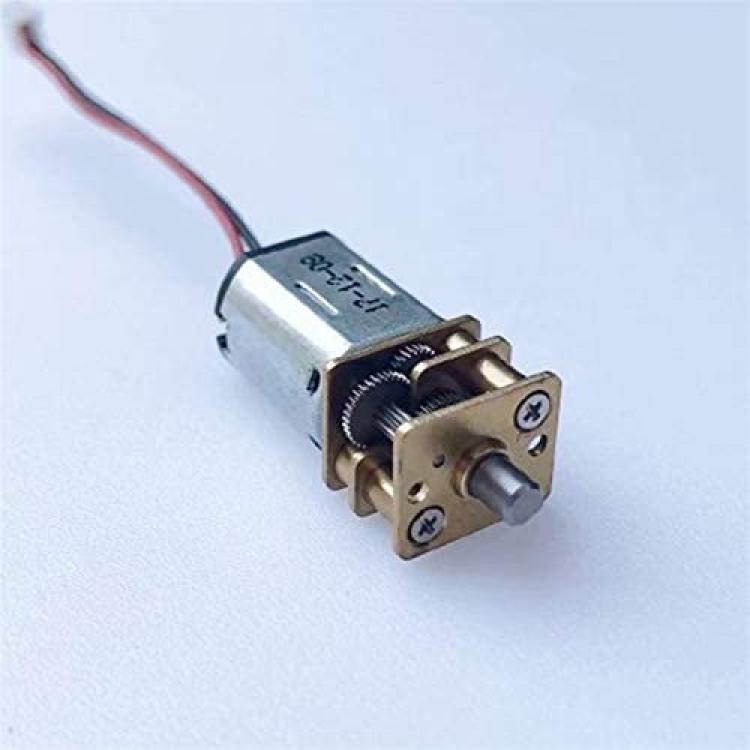

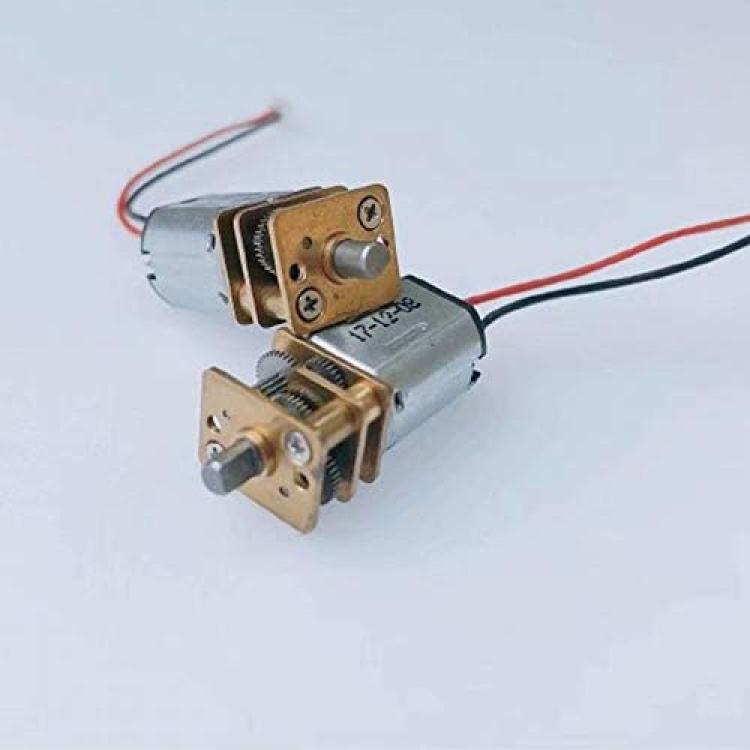

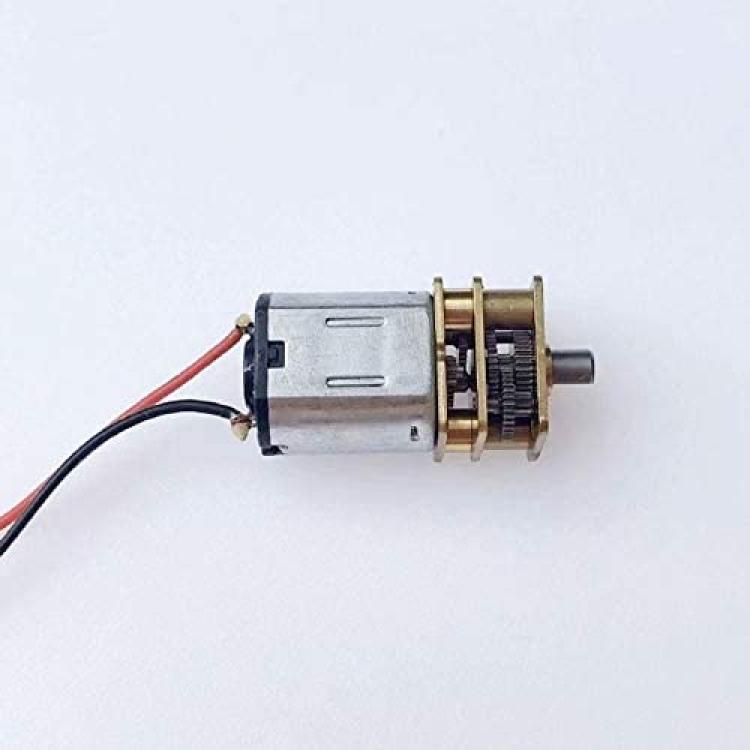

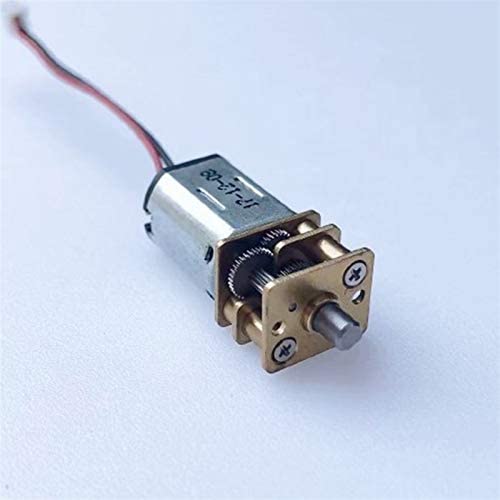

Xuulan Xianglaa-Motor 1PCS Micro N20 Full Metal Gear Motor, Reduction Gearbox Slow Speed Motor, DC 3V-6V 55rpm,
About this product
*Rated voltage: DC 5V
*Motor size: 10*12*15mm(N20 Motor)
*Suitable voltage: DC 3V-6V
*High temperature resistance, high wear resistance, strong carrying capacity, strong and durable.
*Used in a variety of small equipment and experimental equipment, with a wide range of applications
Description
Rated voltage: DC 5V
Motor size: 10*12*15mm(N20 Motor)
Gearbox size: 10*12mm
Output shaft diameter: 3mm(flat shaft 2.45mm)
Output shaft length: Model A: 10mm; Model B:8mm
Gear ratio: 1/298
Weight: 10g
Data:
Rated voltage: DC 5V
Rated load: 200g.cm
No-load speed: 55RPM(±10%)
No-load current: 48mA
DC3V: 32RPM/ 35mA; DC6V:65RPM/ 56mA
Package inlcuded:
1PCSx N20 Motor
