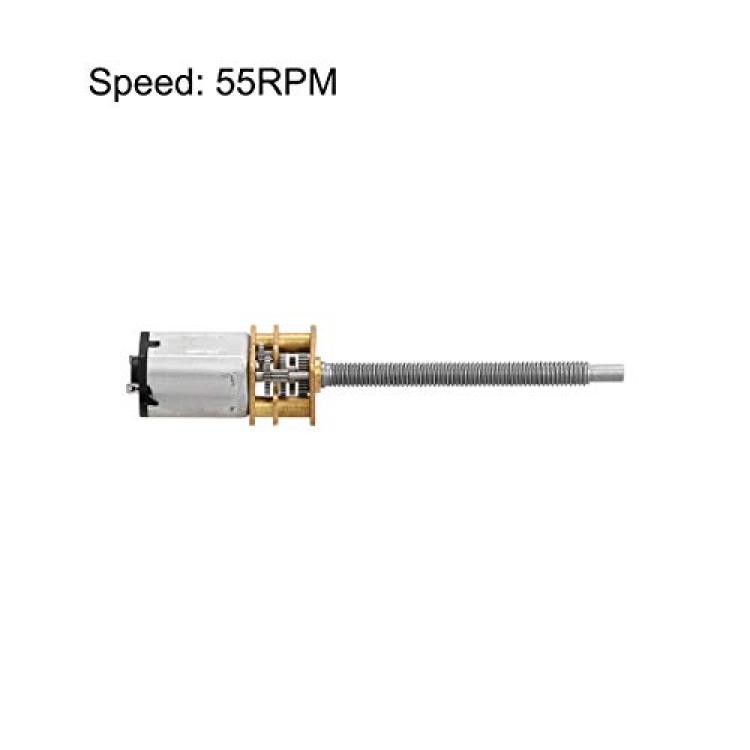

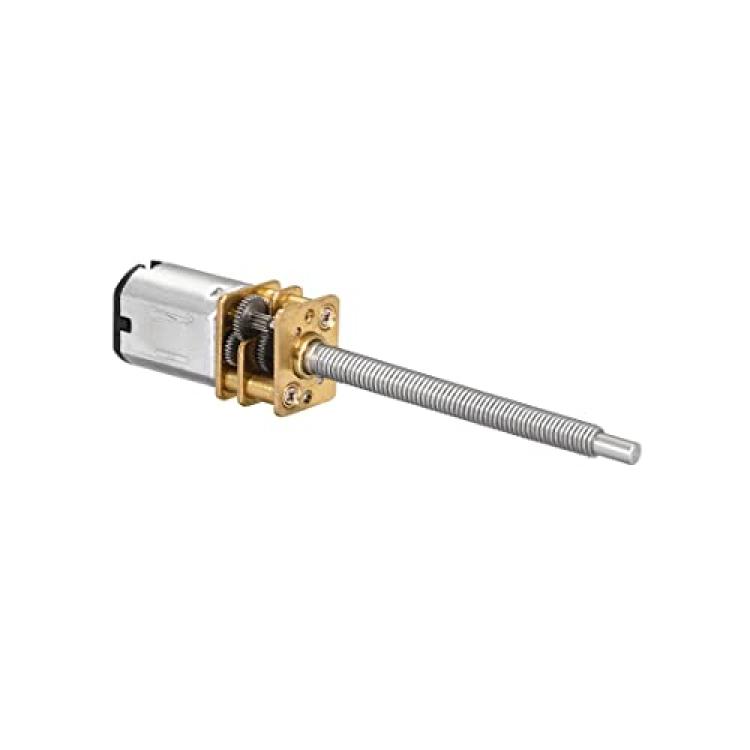

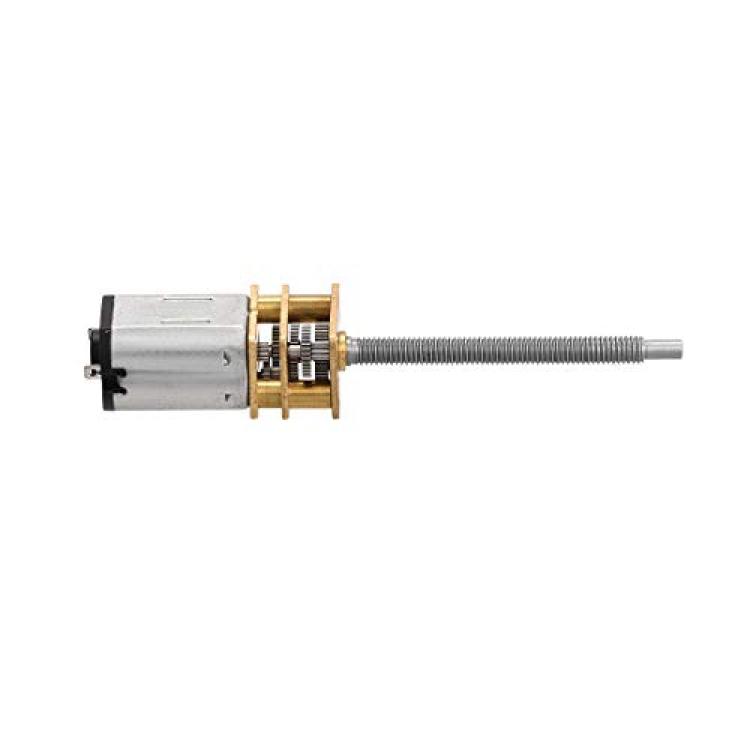

sourcing map DC Motor DC 6V 55RPM N20 Speed Reduction Gear with M3x34mm Screw Metal Gearbox
Availability: Pre-Order, Inquiry Price
About this product
*[Features]: Benefiting from high torque and low noise. Fine craftsmanship,durable,not easy to wear.
*[Advantage]: Gear motors are primarily used to reduce speed in a series of gears, which in turn creates more torque.
*[Durability]:This is a DC Mini Metal Gear Motor, for making robots Light weight, high torque. Fine craftsmanship, durable, not easy to wear.
*[Application]: Used in numerous applications:lifts, landing gear, mechanical ,electronic device and so on.
*[Specification]: Voltage :DC 6V, Speed: 55RPM, Output Shaft Diameter: M3, Output Shaft Length: 34mm /1.34 inches,Motor Size: 15 x 12 x 10mm/0.59 x 0.47 x 0.39 inches (L*W*H), Gearbox Size: 11.9 x 9 x 9.9mm/0.47 x 0.35 x 0.39 inches (L*W*H)
Description
Product Feature:
Features
- Benefiting from high torque and low noise.
- Fine craftsmanship,durable,not easy to wear
- This motor is solidly constructed, good for making robots, Light - weight, high torque and low RPM
- Used in numerous applications:lifts, landing gear, mechanical ,electronic device and so on.
- Gear motors are primarily used to reduce speed in a series of gears, which in turn creates more torque.

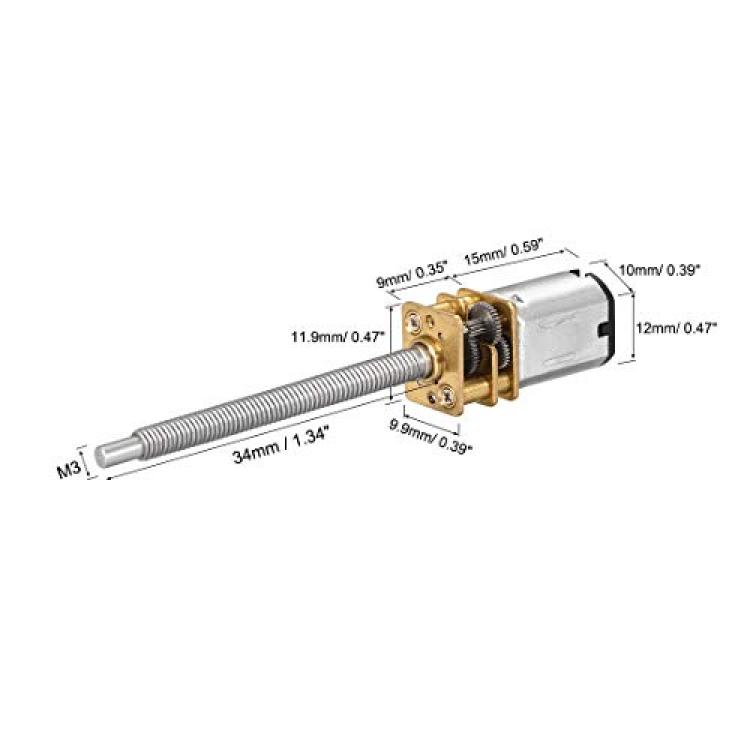

Specifications:
Voltage :DC 6V
Speed: 55RPM
Output Shaft Diameter: M3
Output Shaft Length: 34mm / 1.34 inches
Motor Size: 15 x 12 x 10mm/0.59 x 0.47 x 0.39 inches (L*W*H)
Gearbox Size: 11.9 x 9 x 9.9mm/0.47 x 0.35 x 0.39 inches (L*W*H)
Package Includes:
1 x N20 Gear Motor
Note:
1. P allow 1-3mm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. P take the real one as standard.
