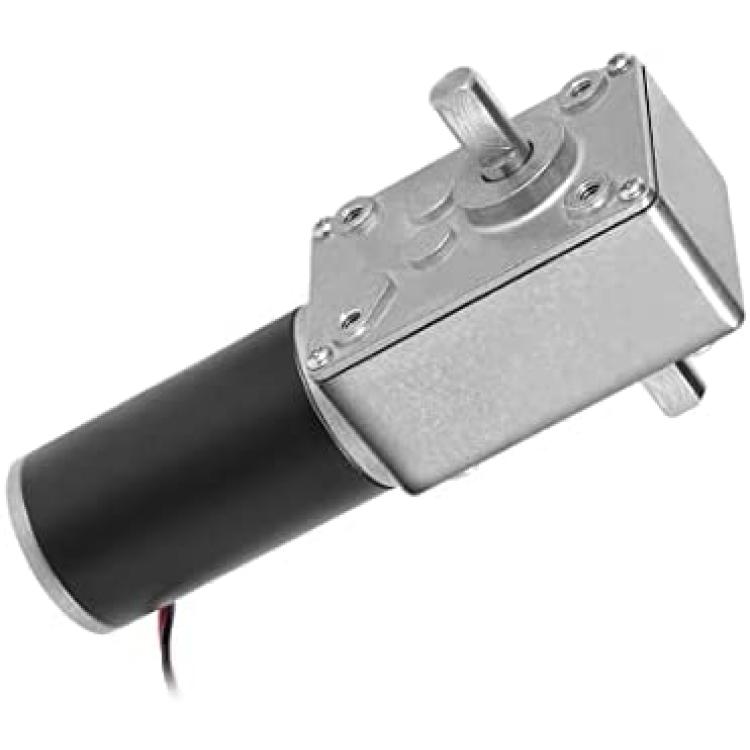

sourcing map High Torque Speed Reduction Motor Double Shaft Worm Gear Motor DC 24V 105RPM
About this product
*2.DC Motor Body Dimensions: 31 x 57mm/ 1.22inch x 2.24inch(D*L); Gear Box Dimensions: 58 x 40 x 35mm/ 2.28inch x 1.57inch x 1.37inch(L*W*H); Output Shaft: 8mm; Main Material: Metal, Electronic component.
*1.Rated voltage: DC24V; No-load speed: 105RPM; Rated torque: 8kg.cm; Rated Current: 1060mA.
*4.Feature: -Motor rotation can be changed by changing the wiring-connection. -Motor will be self-locking when the power goes out. -The reducer output shaft arranged vertically with the motor shaft, whole motor output is relatively short,can be widely used in various of occasions that require special installation size.
*3.Applications: Boat, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, faucet, safe, wet towel dispenser, vending machines, automatic monitoring and other modern art.
*5.Package:1 x DC Geared Motor; if you need other voltage and rpm, pls contact us, more models of this motor in store.
Description
Product Features:
This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed. It is also have addition two characteristics:
1 With self-locking, the output shaft can not rotation when switch off, that is self-locking.
2 Gearbox output shaft and motor shaft are come to be a rectangle, it is widely used in various of occasions that require special installation size.
Specification:
Rated Voltage: 24V DC;
No-Load Speed: 105 RPM;
Output Shaft: 8mm x 15mm/1.22inch x 2.24inch(D*L);
DC Motor Body Dimensions: 31 x 57mm/ 1.22inch x 2.24inch(D*L);
Gear Box Dimensions: 58 x 40 x 35mm/ 2.28inch x 1.57inch x 1.37inch(L*W*H);
Wire Length: 20cm;
Applications: Boat, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, , safe, wet towel , vending machines, automatic monitoring and other modern art.
Package Contents:1 x Worm Motor
