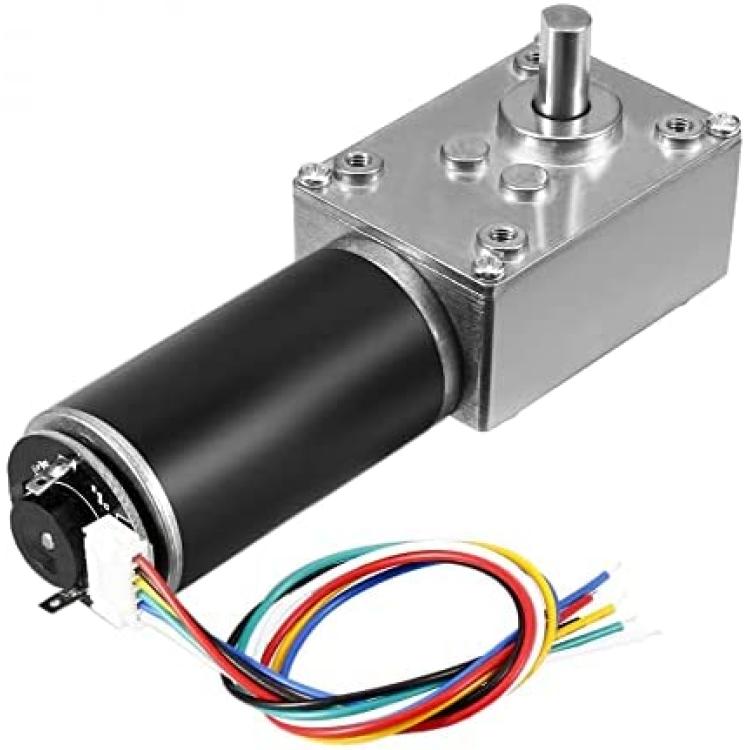

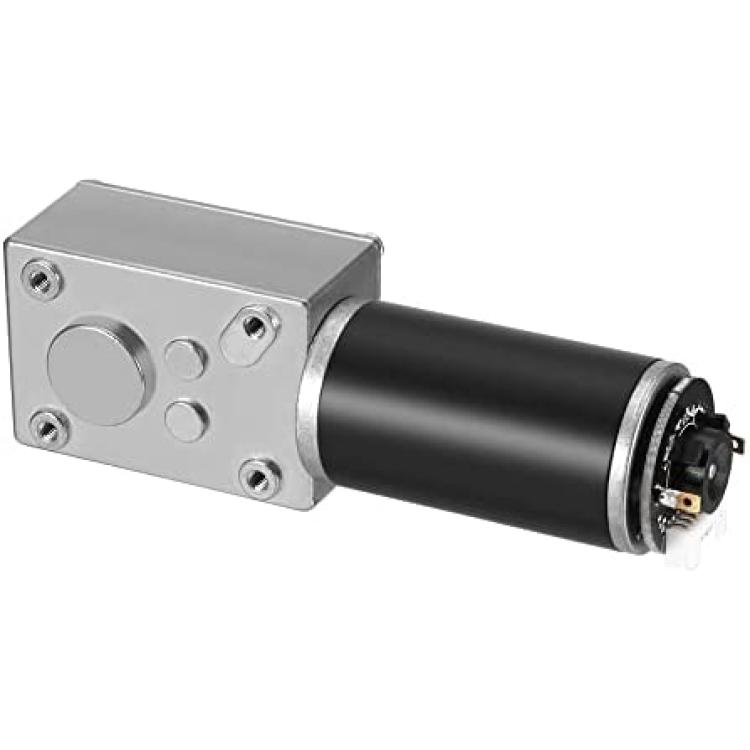

sourcing map Reduction Motor DC 24V 148RPM 12Kg.cm Worm Gear Motor with Encoder and Cable Self-Locking
About this product
*Output Shaft Diameter: 8mm D-type, Output Shaft Length: 15mm.
*Voltage: DC24V; No-Load Speed: 148rpm; Reduction Ratio: 1:54; Torque: 12Kg.cm(10.4lb.in).
*Application: Worm Gear Motor With Encoder And Cable, widely used for intelligence appliance, robots, Rocker arm camera, and Electric paper cutter.
*Total Size(not include shaft):40*36*125mm/1.57*1.57*1.41*4.92inch.
*Shaft rotation direction can be changed by changing the positive and negative wiring.
Description
Product Features
DC 24V 148RPM 12Kg.cm Self-Locking Worm Gear Motor With Encoder And Cable, High Torque Speed Reduction Motor
Specification:
Voltage: DC 24V
No-Load Speed: 148rpm
Reduction Ratio: 1:54
Torque: 12Kg.cm
Error: ±10%
Wire Length: 20cm / 7.87inch
Output Shaft Diameter: 8mm / 0.31inch D-type
Output Shaft Length: 15mm / 0.59inch

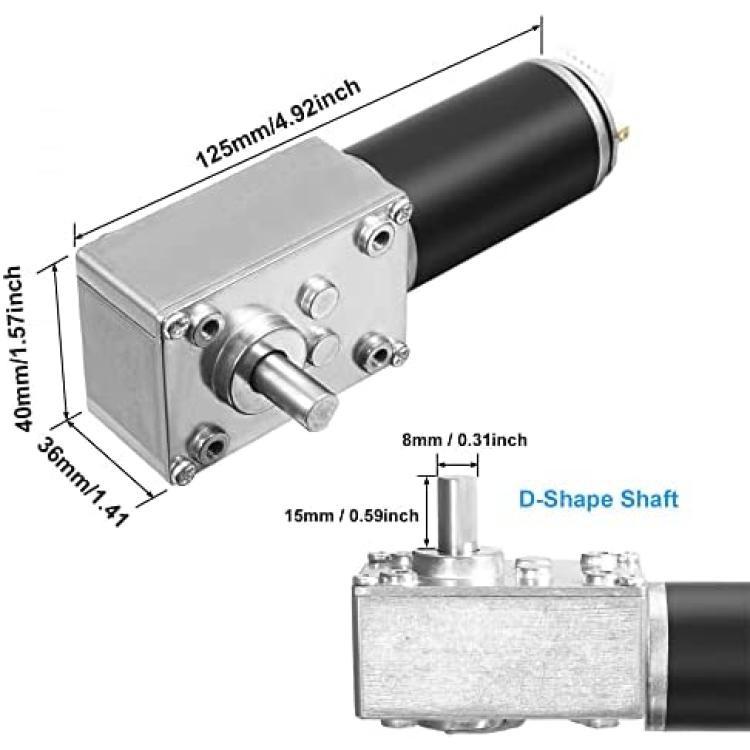

Total Size(not include shaft):40*36*125mm / 1.57*1.41*4.92inch
:
Notice:
1. The yellow and green wires are the speed signal output line, and they can't be connected any power supply, or it will be burnt.
2. Positive and negative power supply of encoder do not allow connect wrong;voltage is 3.3-5V.
3. Control CW or CCW of motor by changing the positive and negative power supply of encoder (change Red Wire and White Wire connect)

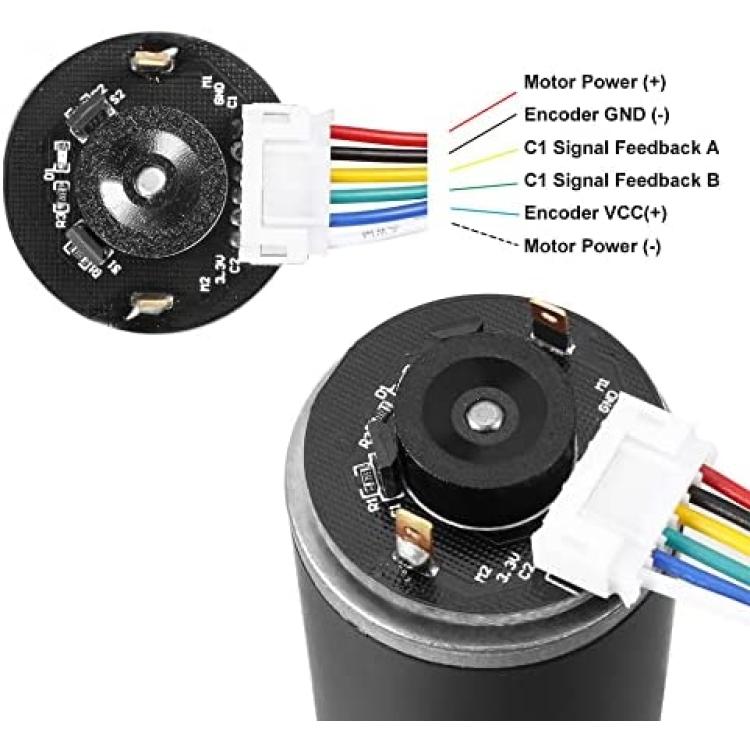

Red Wire - positive power supply of motor(+)
White Wire - negative power supply of motor(-)
Black Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong;voltage is3.3-5V)
Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong;voltage is 3.3-5V)
Yellow Wire - signal feedback (11 signals per motor turns a circle)
Green Wire - signal feedback (11 signals per motor turns a circle)
Package Include:

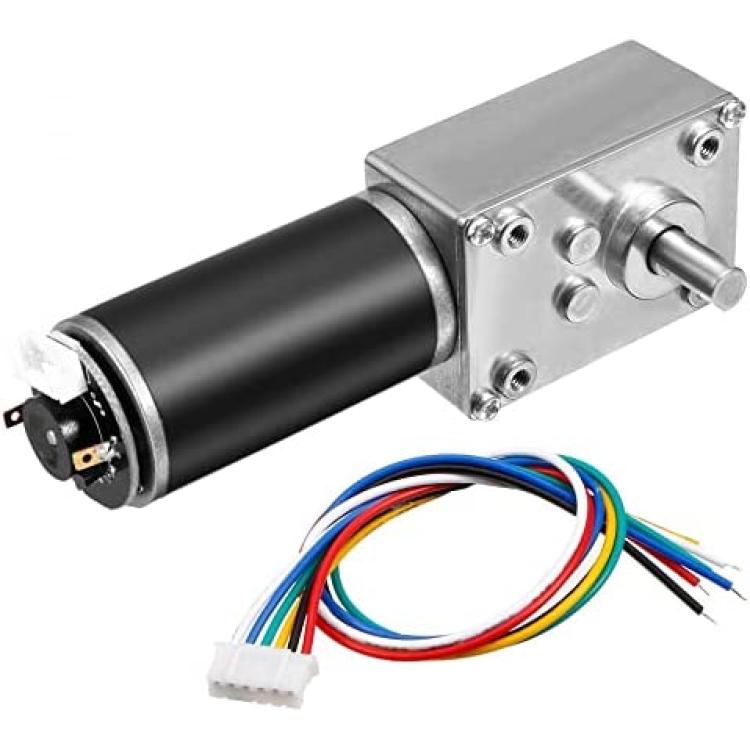

1 x motor , 1 x 6-Wire Connector
