FTVOGUE DC Motor 12V High Torque Worm Geared Motor Reduction Motor with Encoder Srong Self-Locking (100RPM)
Availability: Pre-Order, Inquiry Price
About this product

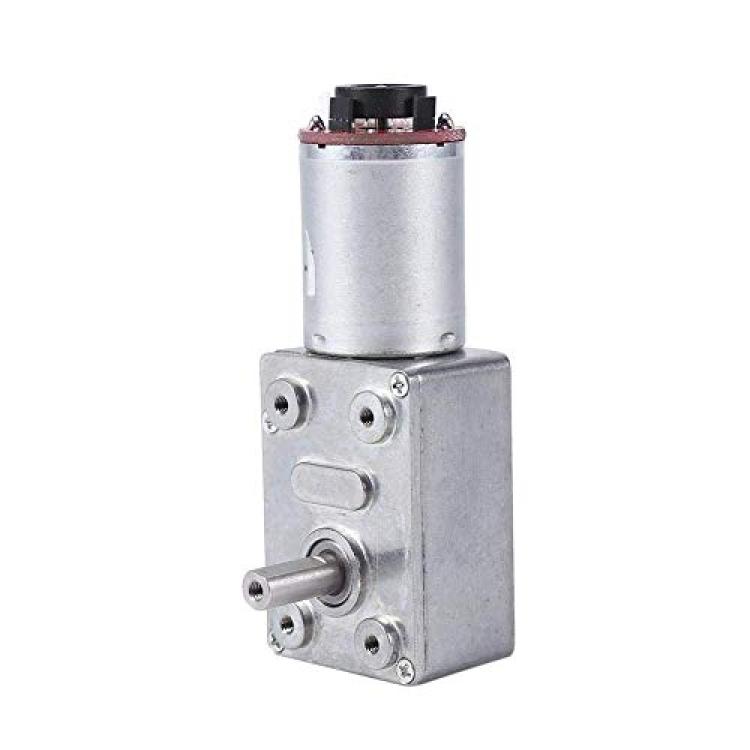

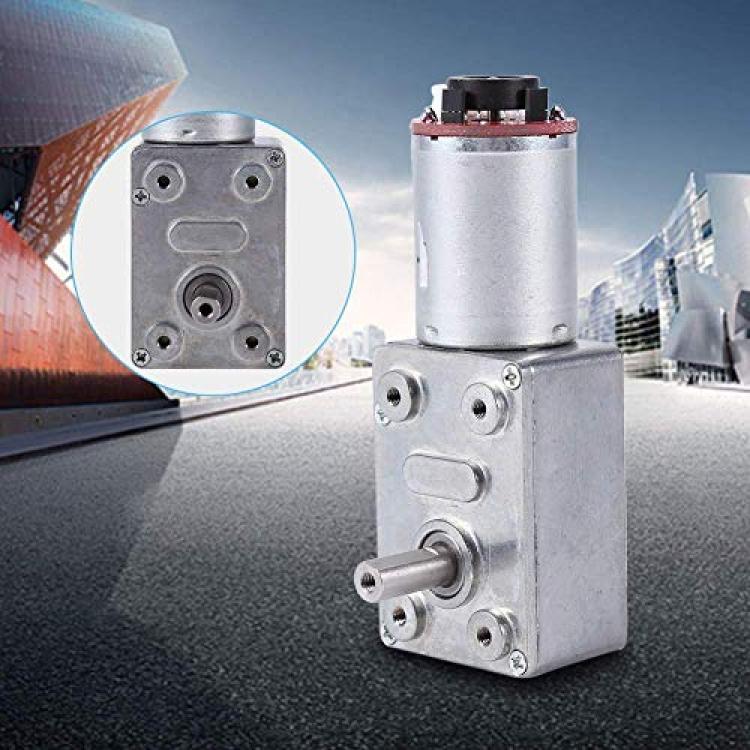

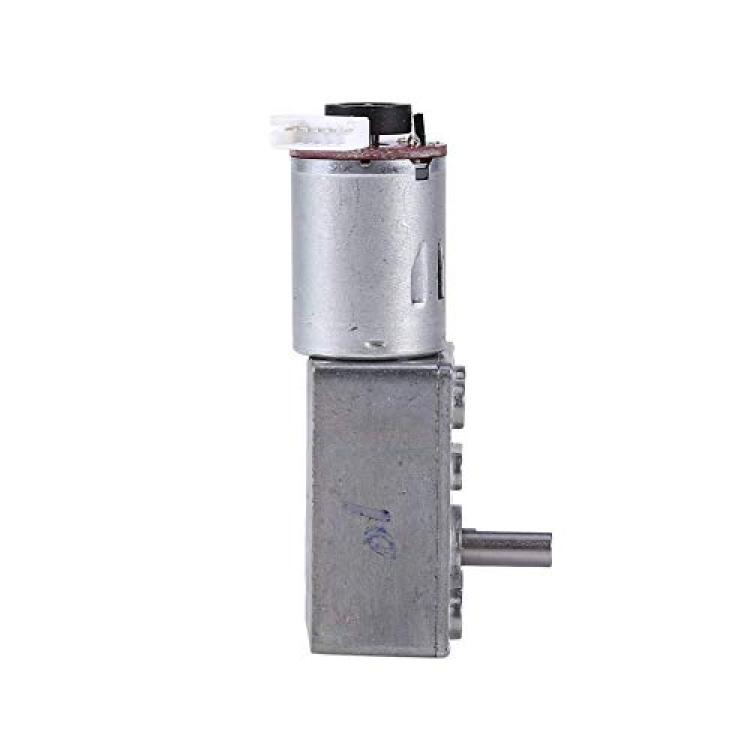

*This motor is a geared motor with a noble metal carbon brush magneto-magnet. Gearbox output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the general direction of gear motor short.
*Long service life, low noise, large torque, stable and reliable performance.
*Two-phase reduction gear motor with encoder. Can rotate and reversal, work more accurate.
*Wiring Methods: Red: Motor power + (exchange can control rotating and reversing); Black: Coding power- negative (3.3-5V) polarity cannot be wrong.
*This motor widely adapted to a number of installation dimensions of the requirement occasion.
Description
Description:

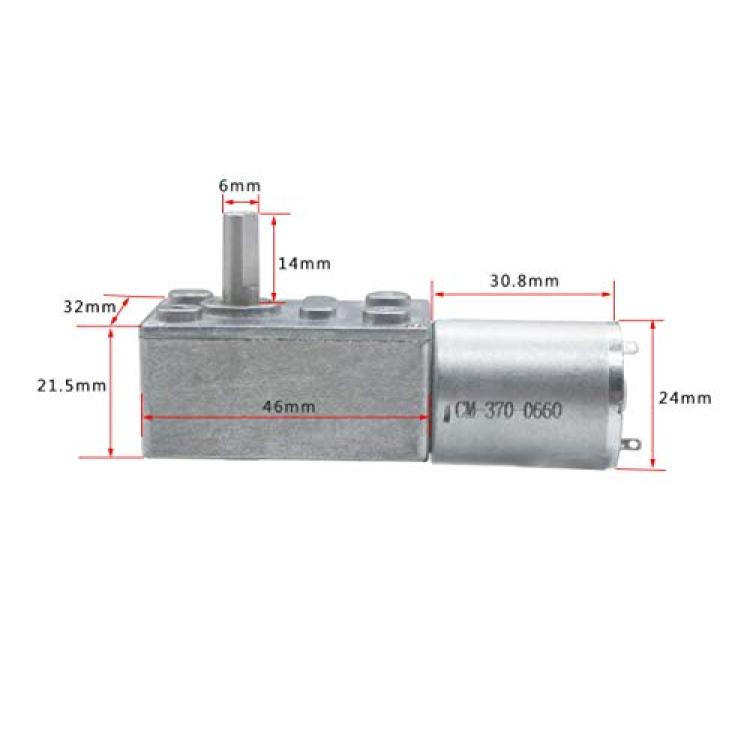

Gearbox output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to a number of installation dimensions of the requirement occasion.
Specifications:
Rated Voltage: 12V
No-loading Revolving Speed: 100rpm / 40rpm / 30rpm / 20rpm / 10rpm(optional)
Speed(rpm) 10 20 30 40 100Â
Rated Torque(kg.cm) 22.5 12 7.4 5.6 1.5Â
Max.Torque(kg.cm) 25 25 25 24 6.4Â
Reduction Ratio 600 340 200 150 40Â
No-load Current(MA) 60 Rated Current(A) 0.6 Stall Current(A) 1.3
Weight: 165g(approx.)

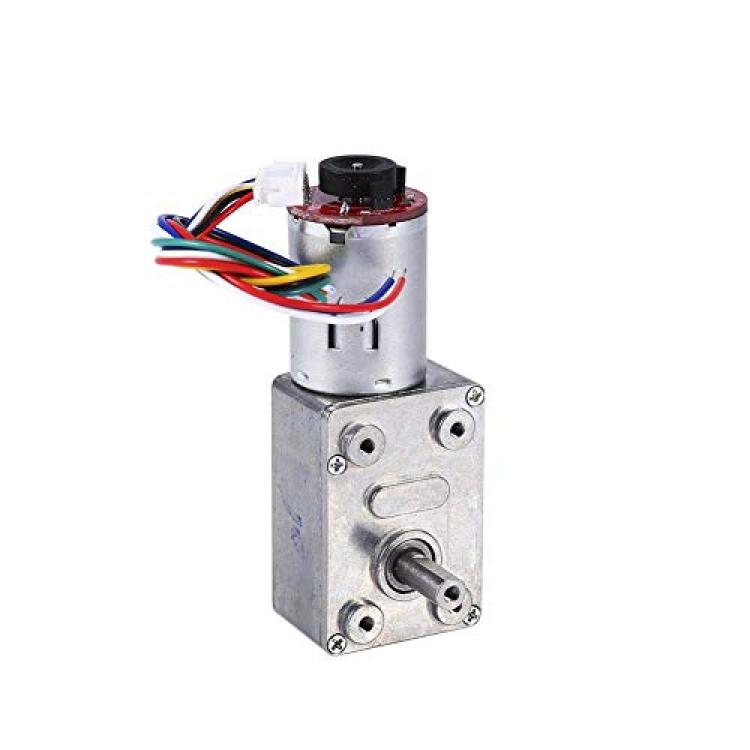

Wiring Methods:
Red: Motor power + (exchange can control rotating and reversing)
Black: Coding power- negative (3.3-5V) polarity cannot be wrong
Yellow: Signal feedback
Green:Signal feedback
Blue:Coding power + positive(3.3-5V)polarity cannot be wrong
White:Motor power - (exchange can control rotating and reversing)
Package Includes:
1 x Motor
