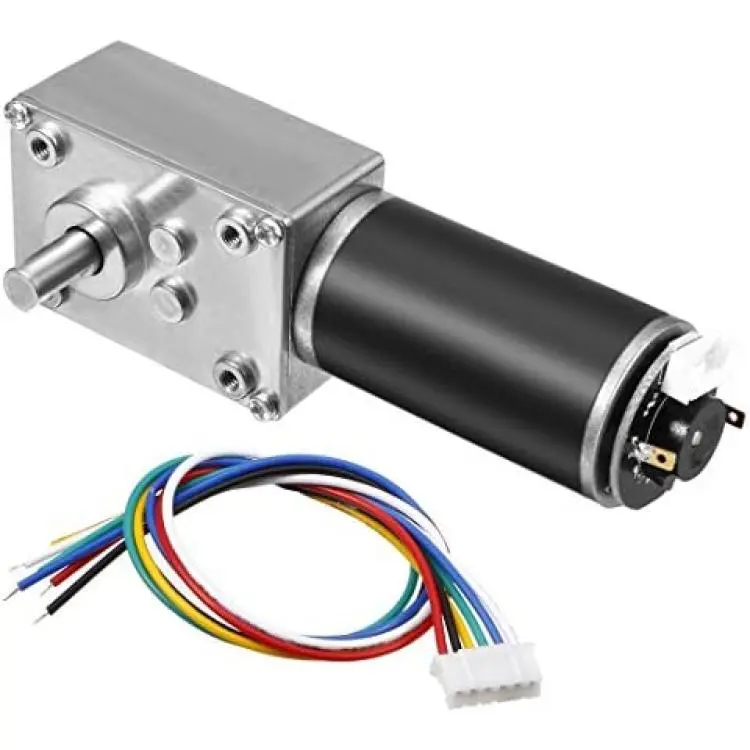

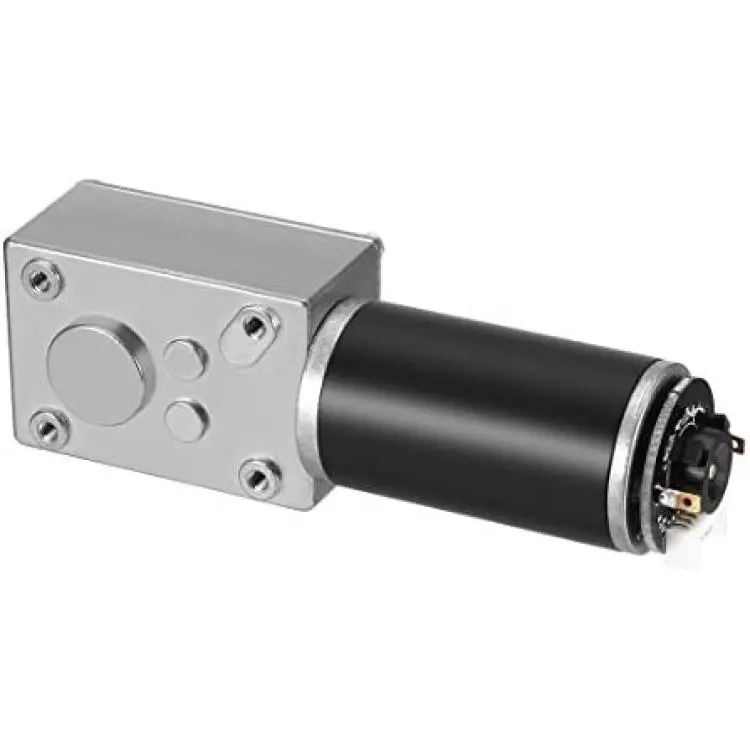

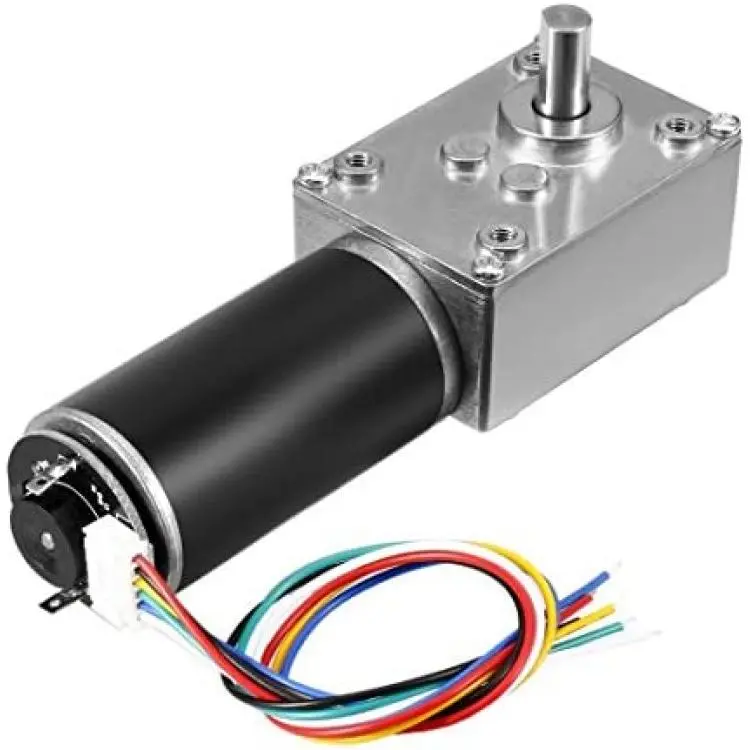

uxcell DC 24V 74RPM 25Kg.cm Self-Locking Worm Gear Motor with Encoder and Cable, High Torque Speed Reduction Motor
Product Code: MM6615
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
About this product
*Voltage: DC24V; No-Load Speed: 74rpm; Reduction Ratio: 1:108; Torque:25Kg.cm(21.7lb.in).
*Output Shaft Diameter: 8mm D-type, Output Shaft Length: 15mm.
*Total Size(not include shaft):40*36*125mm/1.57*1.57*1.41*4.92inch.

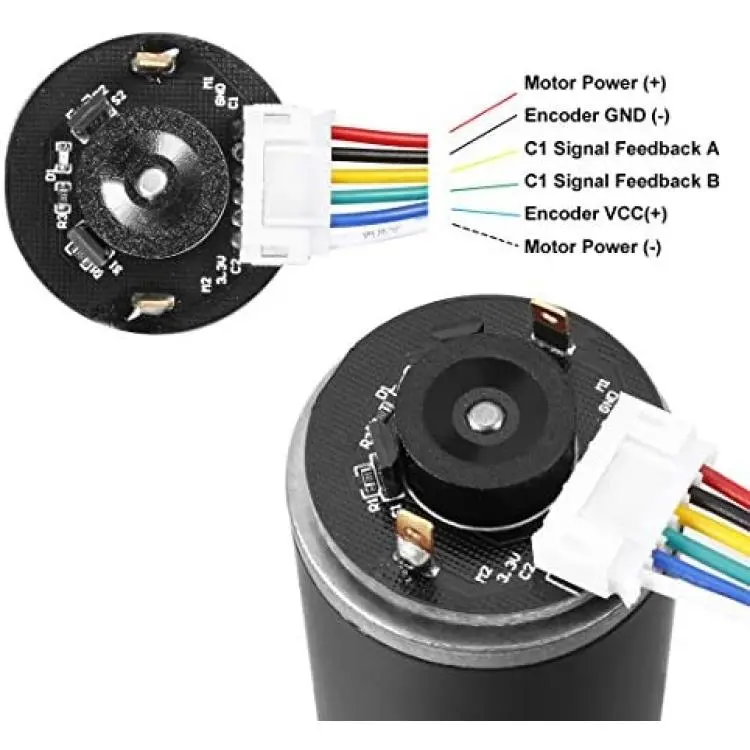

*Application: Worm Gear Motor With Encoder And Cable, widely used for intelligence appliance, robots, Rocker arm camera, and Electric paper cutter.
*Shaft rotation direction can be changed by changing the positive and negative wiring.
