Xuulan Xianglaa-Motor Right Angle Metal Gearbox Micro Gear Motor, for 3D Printing Pen DC Motor, DC 12V 11RPM N20,
About this product

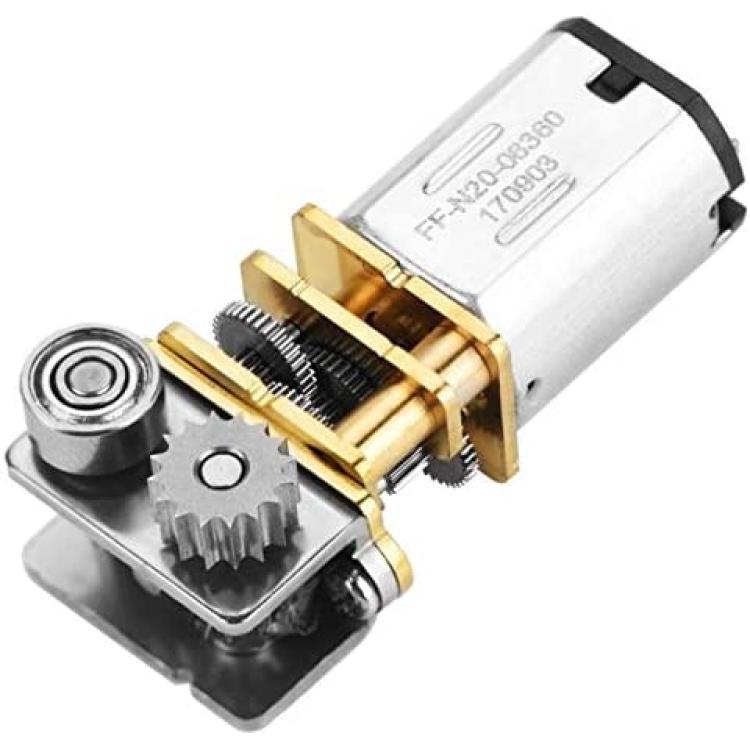

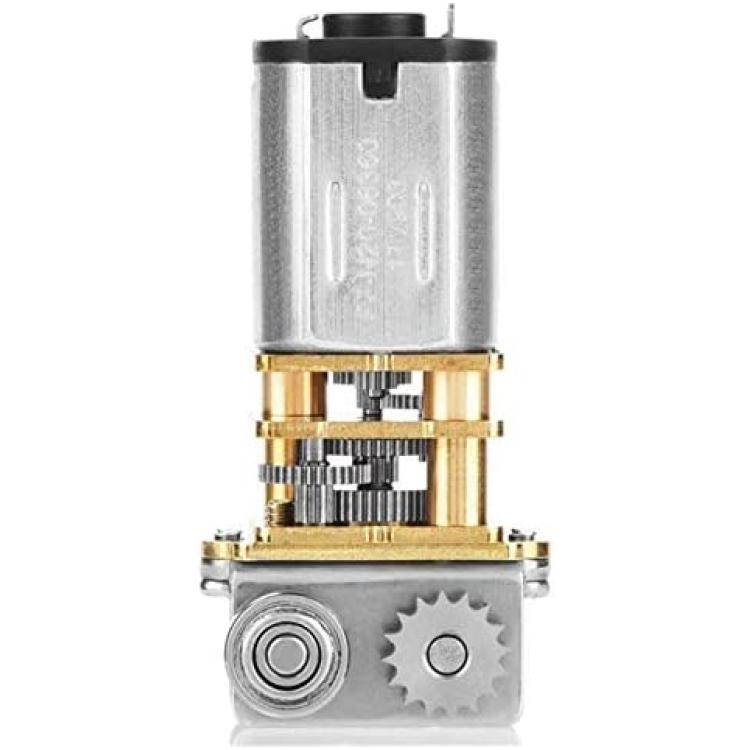

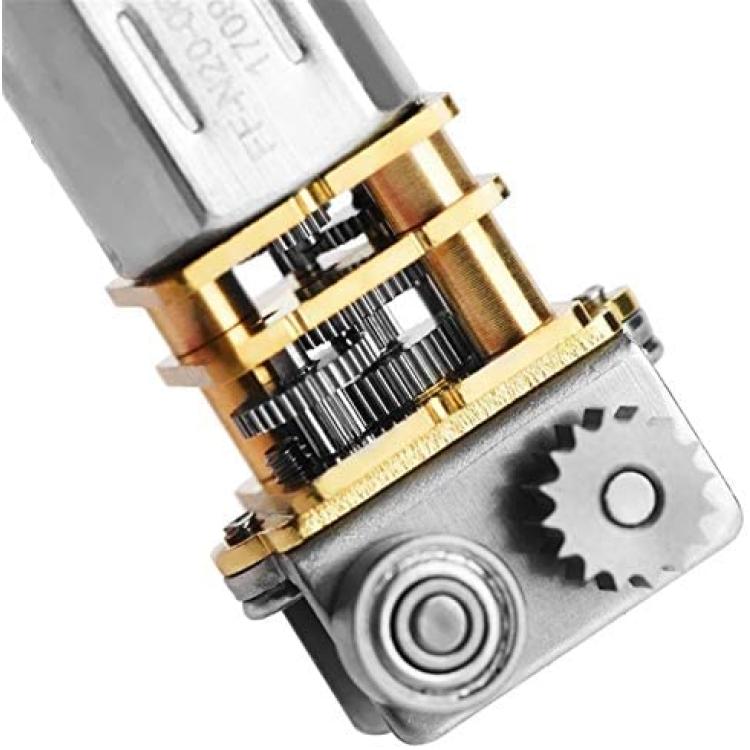

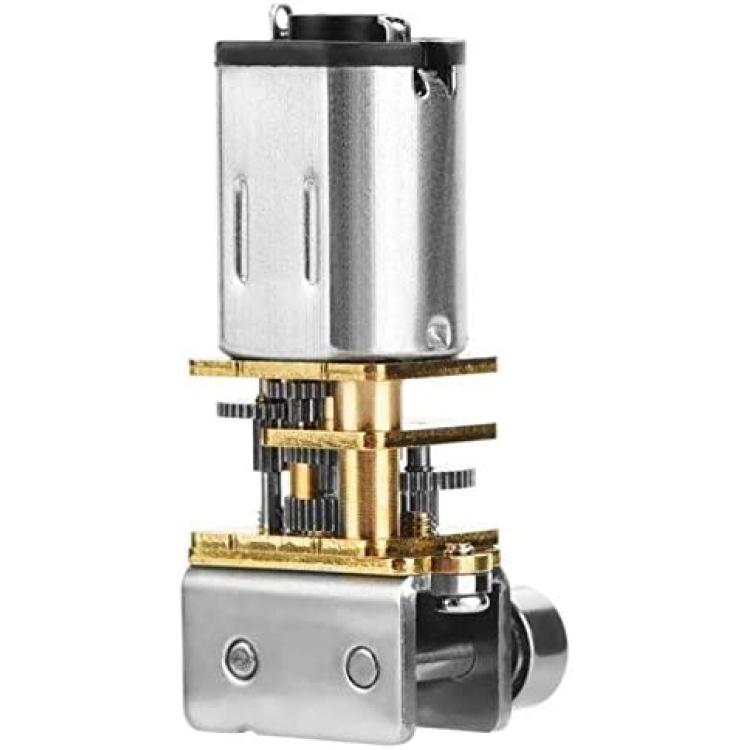

*This DC12V 11RPM N20 right angle metal gearbox Micro gear motor is used for printing pen
*This DC motor features large moment of force, low speed, and low noise.
*The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
*High temperature resistance, high wear resistance, strong carrying capacity, strong and durable.
*Used in a variety of small equipment and experimental equipment, with a wide range of applications
Description
This DC12V 11RPM N20 right angle metal gearbox Micro gear motor is used for printing pen
This DC motor features large moment of force, low speed, and low noise.
The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
This motor is adopted of pure copper wire coil, with low heat and low loss.
Easy to install and reliable to use
Specifications:
Model: GM12YN20-3DP
Rated power: 2 (W)
Product type: Brush dc motor
Rated voltage:12 (V)
Reduction Ratio: 298:1
Rotation Direction (CCW/CW): CW
No Load Speed: 11RPM (Error: ± 10%)
No Load Speed: ? 40mA
Rated Speed: 9RPM (Error: ± 10%)
Rated Current: ? 120mA
Rated moment of force: 1.0kgf.cm
Stall moment of force: 2.4kgf.cm
Stall Current: ? 420mA
Size: Approx. 3.5cm/1.4in
Weight: Approx.17g/0.6oz
Package list:
1 x gear motor
