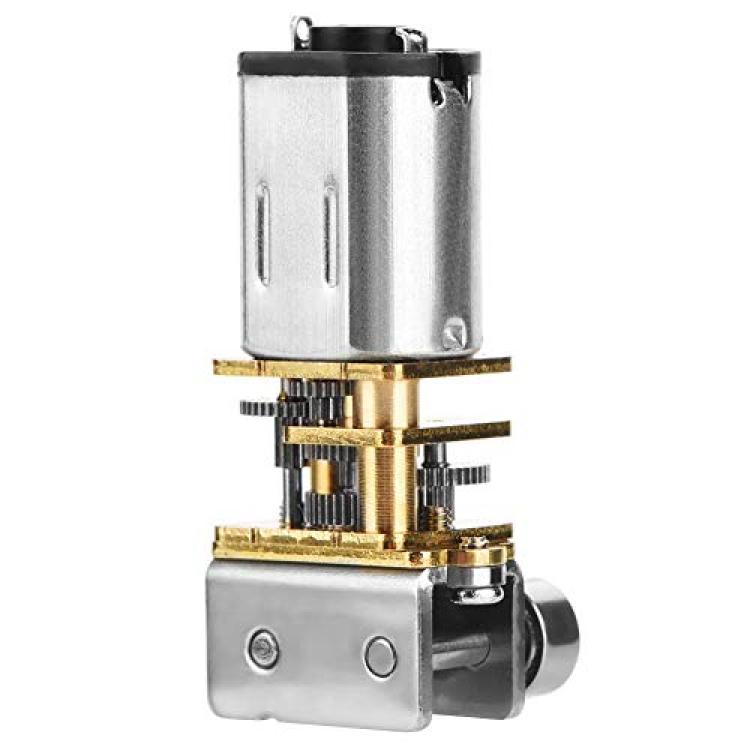

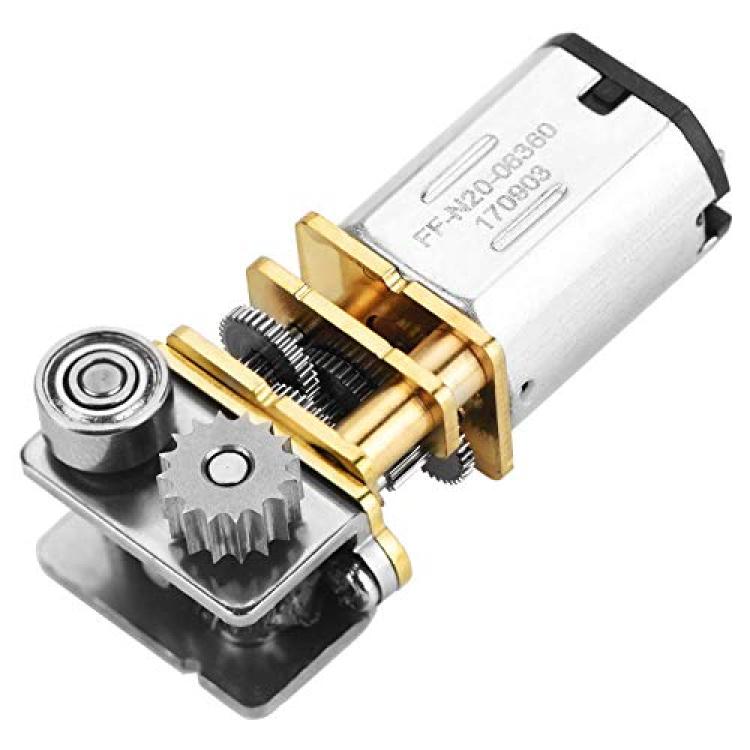

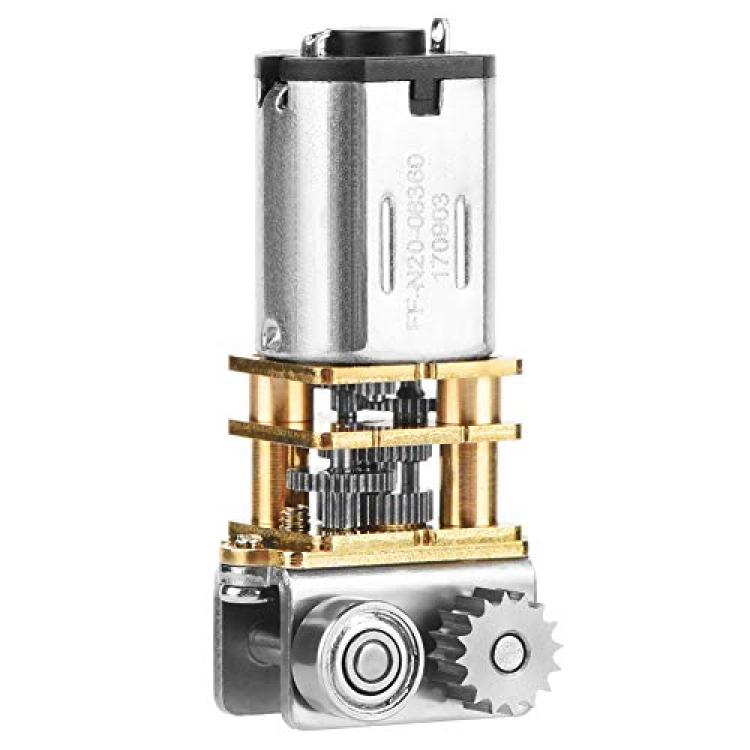

DC 12V Metal Gearwheel Gear Motor, 11RPM N20 Right Angle Metal Gearbox Micro Gear Motor for DIY RC Toys GM12YN20-3DP
Availability: Pre-Order, Inquiry Price
About this product

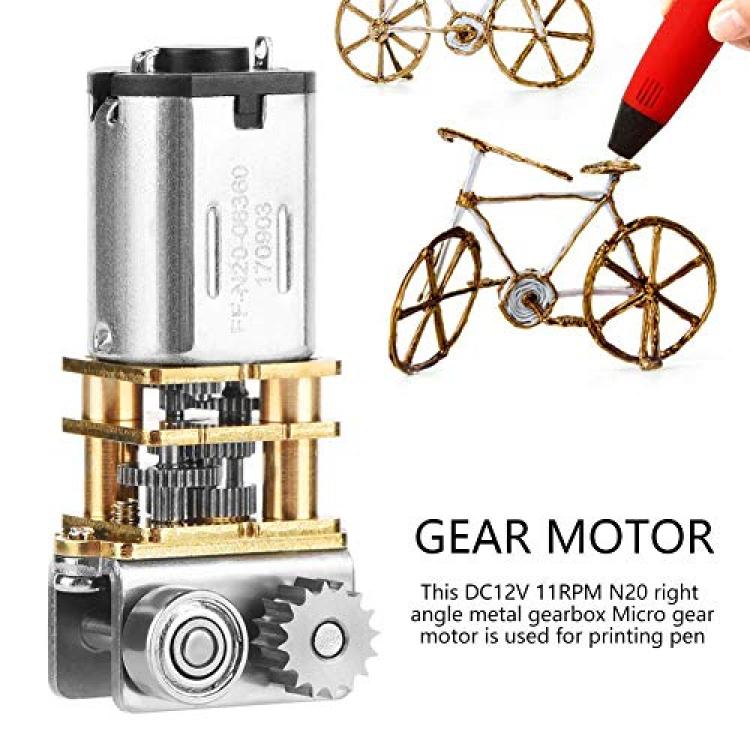

*【USE FOR PRINTING PEN】This DC 12V 11RPM N20 right angle metal gearbox Micro gear motor is used for printing pen
*【LOW SPEED AND LOW NOISE】This DC motor features large moment of force, low speed, and low noise.
*【LONG SERVING LIFE】The speed reduction motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
*【LOW HEAT AND LOW LOSS】This metal gearbox motor is adopted of pure copper wire coil, with low heat and low loss.
*【EASY TO INSTALL】This gear motor is easy to install and reliable to use.
Description
Specifications:
Model: GM12YN20-3DP
Rated power: 2 (W)
Product type: Brush dc motor
Rated voltage:12 (V)
Reduction Ratio: 298:1
Rotation Direction (CCW/CW): CW
No Load Speed: 11RPM (Error: ± 10%)
No Load Speed: 40mA
Rated Speed: 9RPM (Error: ± 10%)
Rated Current: 120mA
Rated moment of force: 1.0kgf.cm
Stall moment of force: 2.4kgf.cm
Stall Current: 420mA

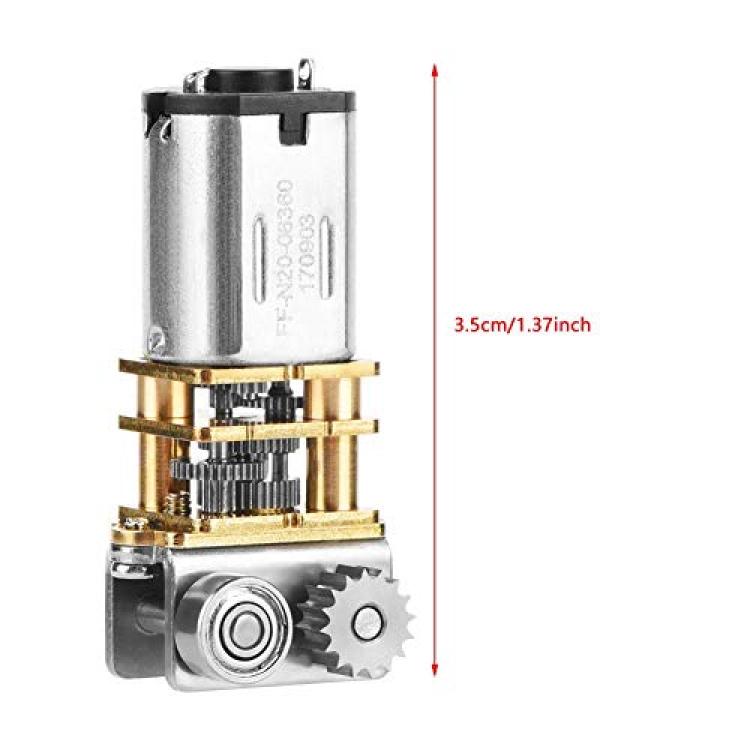

Size: Approx. 3.5cm/1.4in
Weight: Approx.17g/0.6oz
Package list:
1 x gear motor
