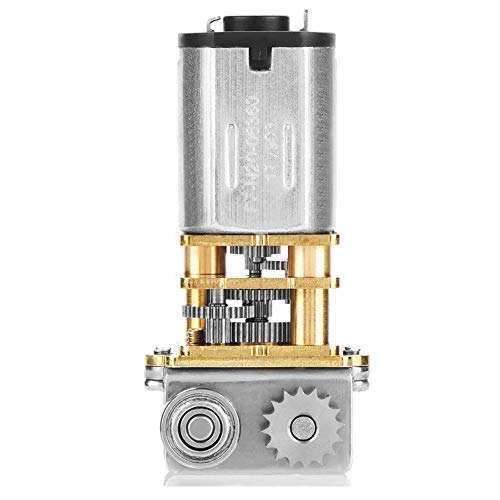

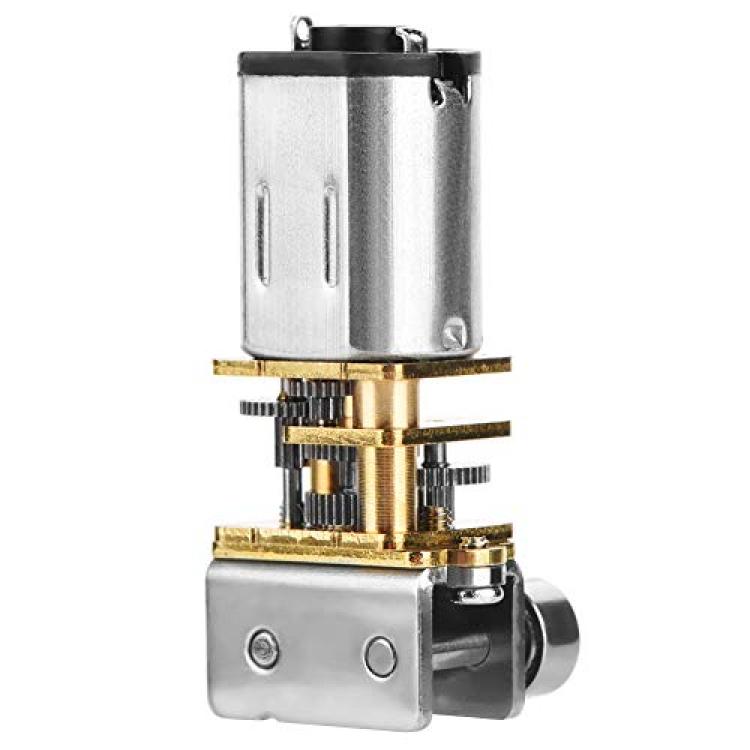

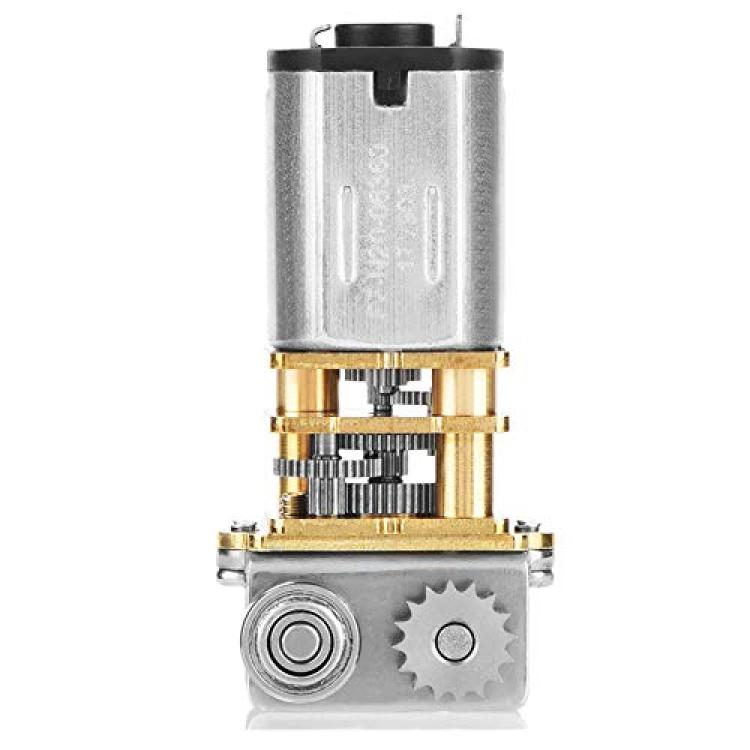

Gear Motor, DC12V 11RPM N20 Right Angle Metal Gearbox Micro Gear Motor with Low Heat and Low Loss, Low Speed Low Noise Wear-Resistant for 3D Printing Pen
Availability: Pre-Order, Inquiry Price
About this product
*【USE FOR PRINTING PEN】This DC 12V 11RPM N20 right angle metal gearbox Micro gear motor is used for printing pen
*【LOW SPEED AND LOW NOISE】This DC motor features large moment of force, low speed and low noise, high temperature resistance and vibration resistance.
*【THREE-LAYER COPPER PLATE】The speed reduction motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
*【LOW HEAT AND LOW LOSS】This metal gearbox motor is adopted of pure copper wire coil, with low heat and low loss.
*【EASY TO INSTALL】This gear motor is easy to install and reliable to use. We only offer high quality motors! Any quality issues, please feel free to contact our customer service!
Description
Features:
1. This DC12V 11RPM N20 right angle metal gearbox Micro gear motor is used for printing pen.
2. This DC motor features large moment of force, low speed, and low noise.
3. The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
4. This motor is adopted of pure copper wire coil, with low heat and low loss.
5. Easy to install and reliable to use
Specifications:
Model: GM12YN20-3DP
Rated power: 2 (W)
Product type: Brush dc motor
Rated voltage:12 (V)
Reduction Ratio: 298:1
Rotation Direction (CCW/CW): CW
No Load Speed: 11RPM (Error: ± 10%)
No Load Speed: ? 40mA
Rated Speed: 9RPM (Error: ± 10%)
Rated Current: ? 120mA
Rated moment of force: 1.0kgf.cm
Stall moment of force: 2.4kgf.cm
Stall Current: ? 420mA
Size: Approx. 3.5cm/1.4in
Weight: Approx.17g/0.6oz
Package list:
1 x gear motor
