Xuulan Xianglaa-Motor N30 Metal Brush Micro Motor, Fast Speed for DIY Model Toys Shaft Diameter: 1mm, DC 1.5-12V Small Mute Motor,
About this product
*Package includes: 1 piece of motor
*Model: N30, 3000-24000rpm

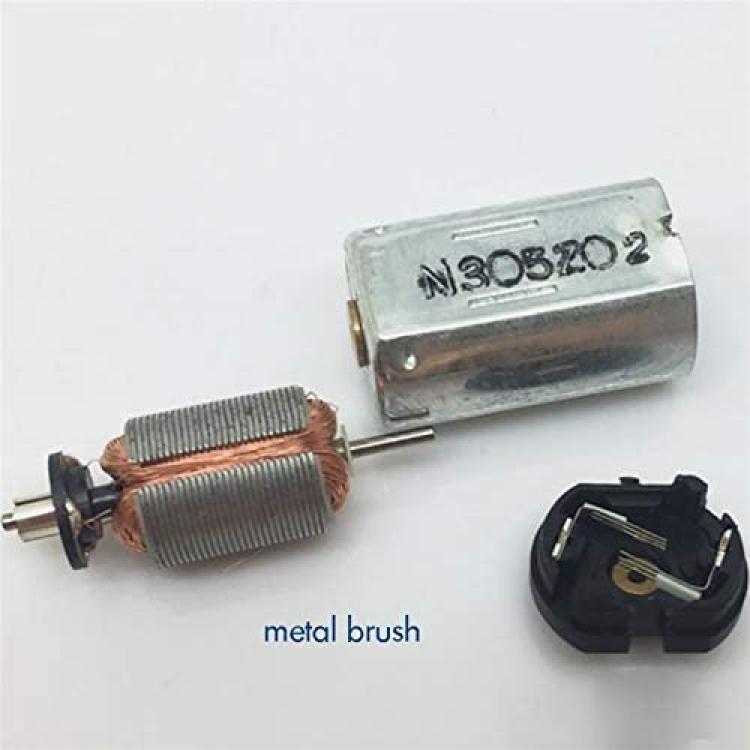

*Type: precious metal brush micro motor
*High temperature resistance, high wear resistance, strong carrying capacity, strong and durable.
*Used in a variety of small equipment and experimental equipment, with a wide range of applications
Description

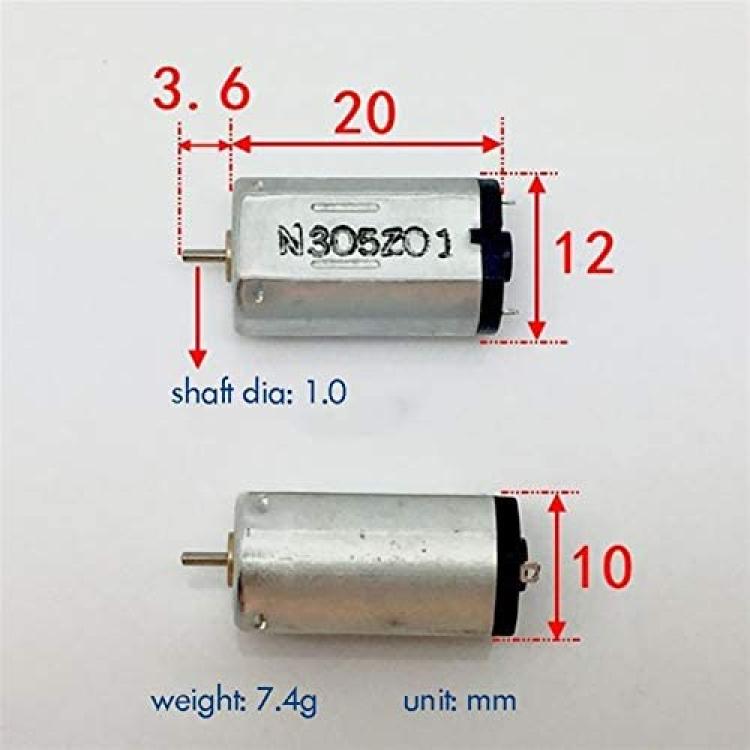

Motor specifications: 20*12*10mm (length * width * height)
Shaft length: 3.6mm
Shaft diameter: 1mm
Voltage range: 1.5-12 volts DC
Voltage: 1.5V
No-load current: 20 mA
Stall current: 120 mA
No-load speed: 3000 rpm / min
Voltage: 3V
No-load current: 20 mA
Stall current: 200 mA
No-load speed: 6000 rpm / min
Voltage: 6V
No-load current: 20 mA
Stall current: 420 mA
No-load speed: 12,000 rpm
Voltage: 7.2V
No-load current: 25 mA
Stall current: 550 mA
No-load speed: 14500 rpm / min
Voltage: 12V
No-load current: 80 mA
Stall current: 900 mA
No-load speed: 24000 rpm / min
The basic parameters corresponding to the above measured different voltages, 1.5 to 7.2 volts, are silent and stable, to 12 volts, the speed is very fast, relatively easy to heat, please use the appropriate voltage depending on the situation.
The motor is very quiet, the voltage range is widely used, it is not easy to burn out, and the small motor can be pressurized to 12 volts, and the output is still stable.
