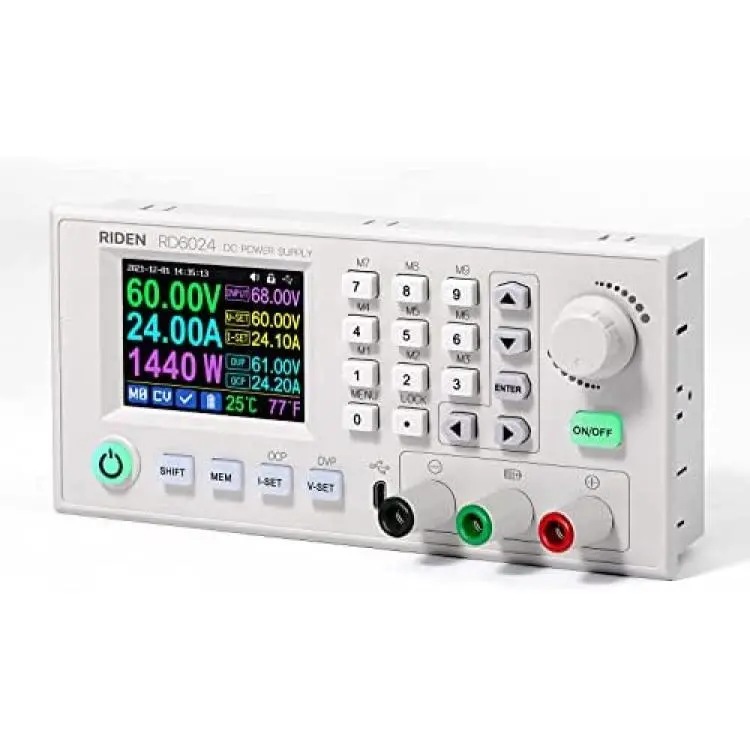

RD RD6024W 60V 24A Communication Version DC DC voltage current adjustable buck voltage conveter programble Step Down Power Supply (RD6024W)
Product Code: MM31075
Availability: Pre-Order, Inquiry Price
About this product
*This is RD6024-W dc to dc converter, it has extra APP control compared with RD6024. for operation way, please check the instructionperation instruction, please check the
*RD6024-W is the communication version, it can be connected to PC software or APP
*please check the manual to see the communication requests

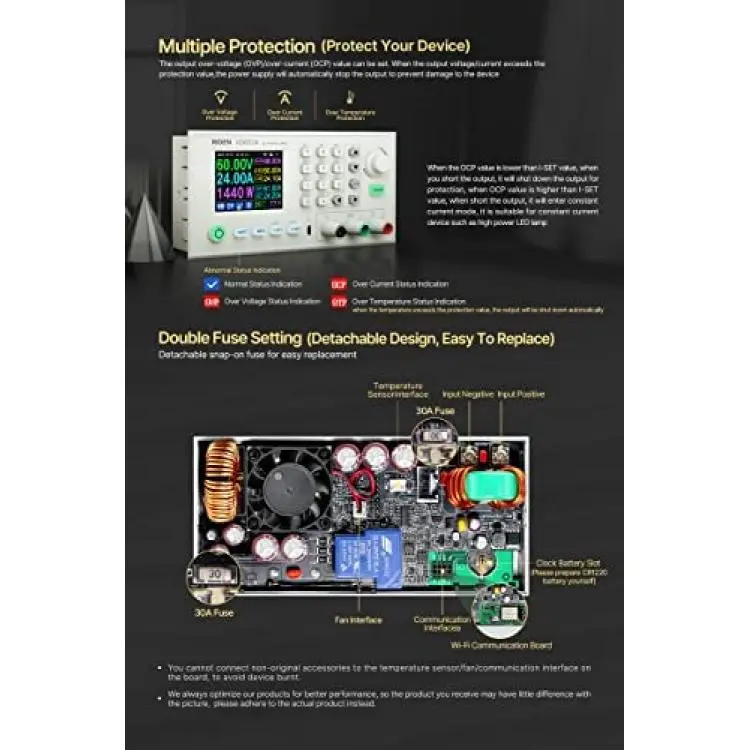

*There is a backup fuse in the box, if you burn the fuse, you can insert the fuse in the socket next to the burned one for short time use and in 10A range, you still need to replace the damaged one if you want to use full range

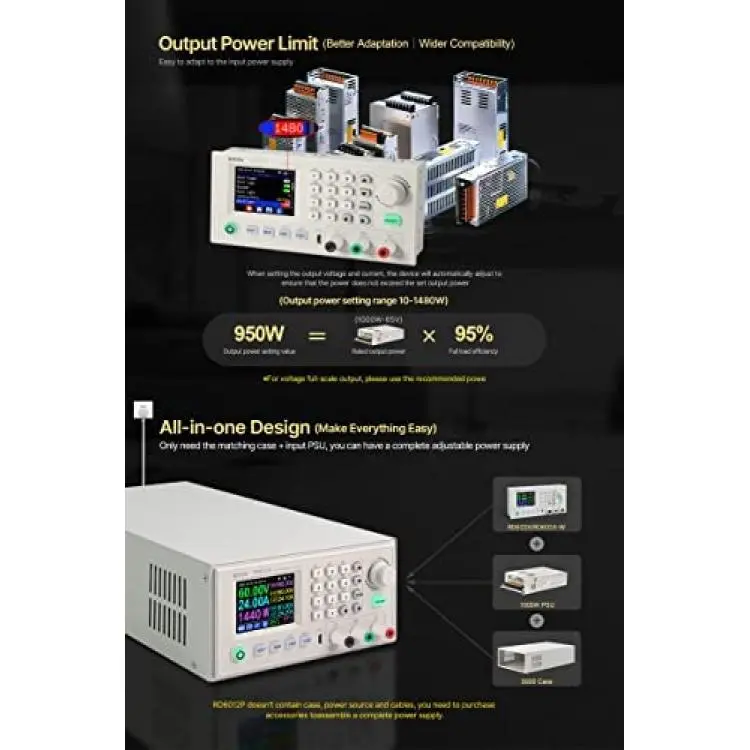

*Integrated panel, you only need a shell and a AC-DC power source to form a powerful and adjustable power supply.
Description
Model? RD6024/RD6024-W
Input voltage range: 6-70.00V
Output voltage range: 0-60.00V
Output current range: 0-24.00A
Output power range: 0-1440W
Output voltage accuracy: ±(0.3%+3 digits)
Output current accuracy: ±(0.5%+5 digits)
Output ripple typical: 100mV@12A?150mV@24A VPP
Working temperature range:-10?~40?
Constant voltage mode response time: 2ms?0.1A-5A load?
Capacity and energy statistical error: ±2?
Working mode: Buck mode: output voltage less than?input voltage÷1.1?-1
1*RD6024 or RD6024-W, and you need to prepare a CR1220 battery for Time Display
Technical ParemeterWhat you can getNote before buyingThis power supply has communication function, it supports APP and PC software connection, but please download the APP in advance to see if the APP has incompatibilities problem with your phone system, if it has, please do not order this product.For PC software, it only support win 7 and above for now. For APP, it only support android 8.0 and aboveIf there is any problem, please send us message, we will reply as soon as possible when we see the messagePlease DO follow the instruction to use this power supply.
