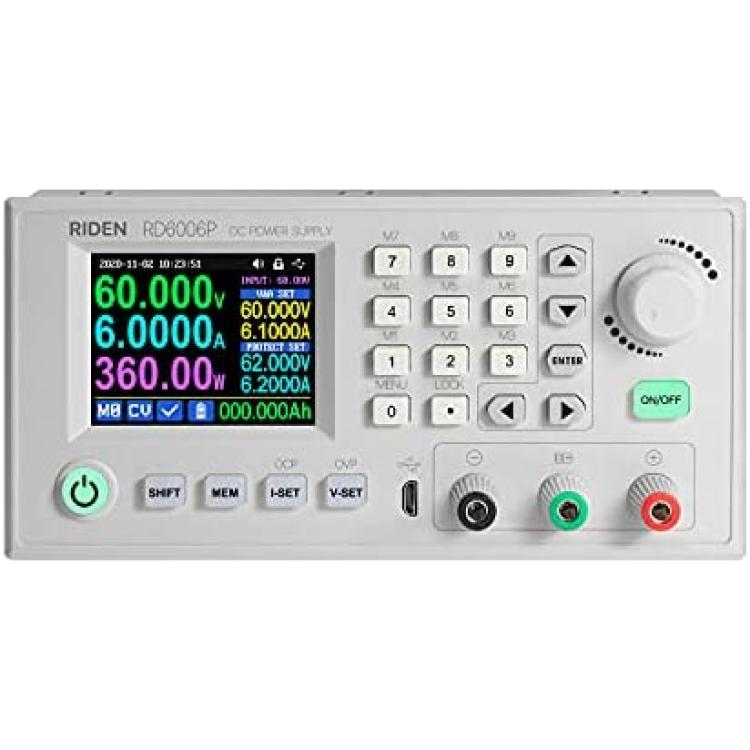

RD RD6006PW 5 Digit Communication Version DC DC Voltage Current Adjustable Programble Buck Voltage Converter Step Down Power Supply 60V 6A 360W(RD6006PW)
Product Code: MM24769
Availability: Pre-Order, Inquiry Price
About this product
*This is RD6006PW only, not containing the case and input PSU, please notice the product you can get

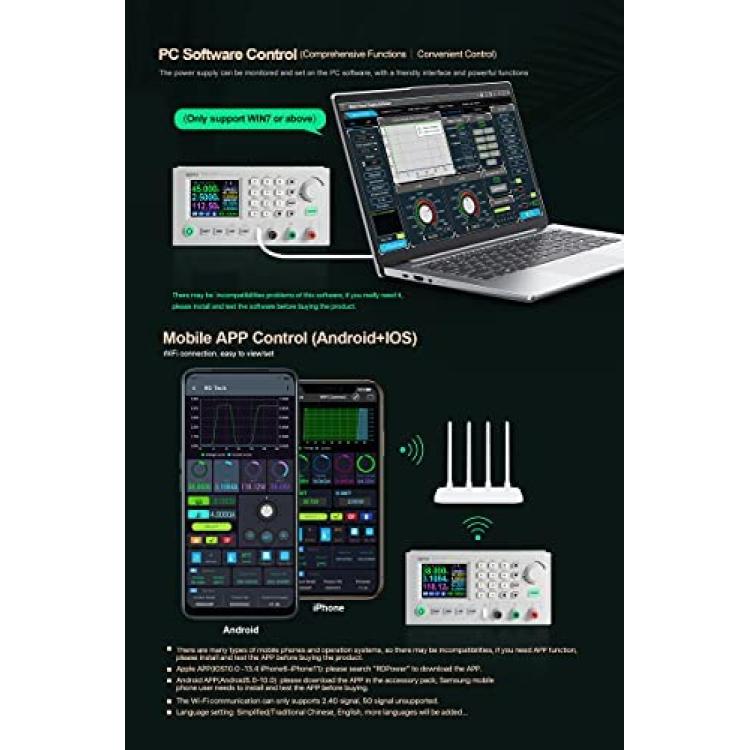

*RD6006PW supports USB connection to PC software, it can also be connect to phone app, for the connection way, please check the instruction
*output voltage range 0-60.000V DC, output current range 0-6.0000A

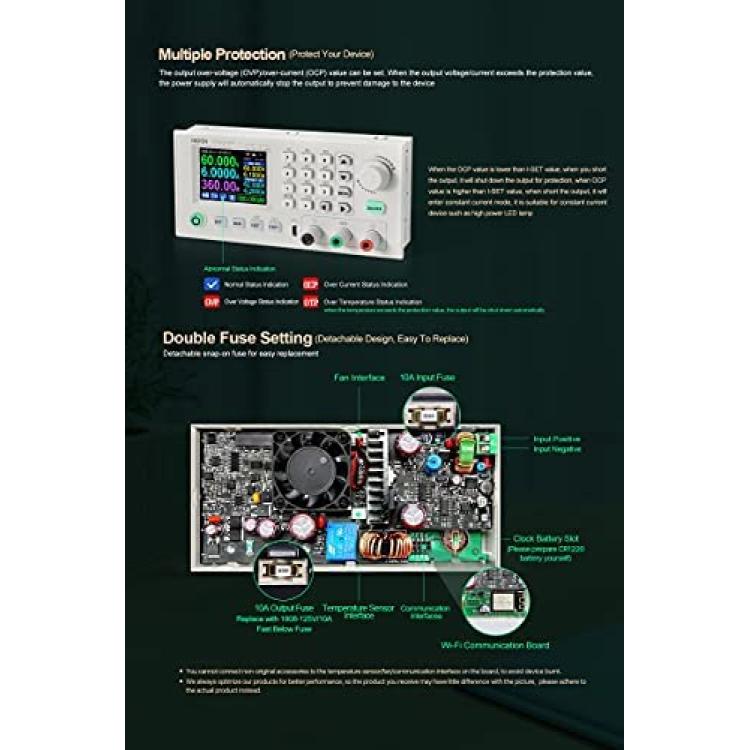

*There is a backup fuse in the box, if you burn the fuse, you can replace the damaged fuse

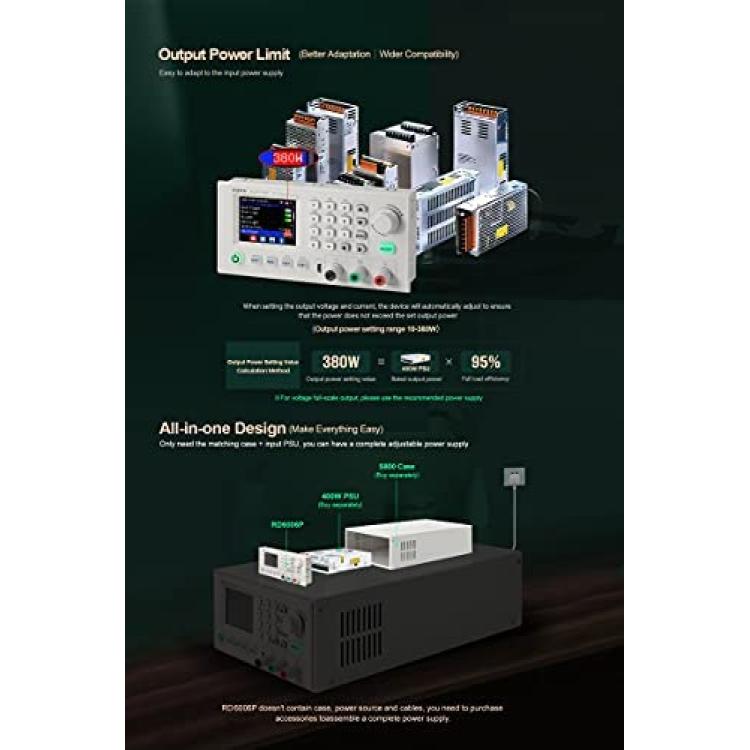

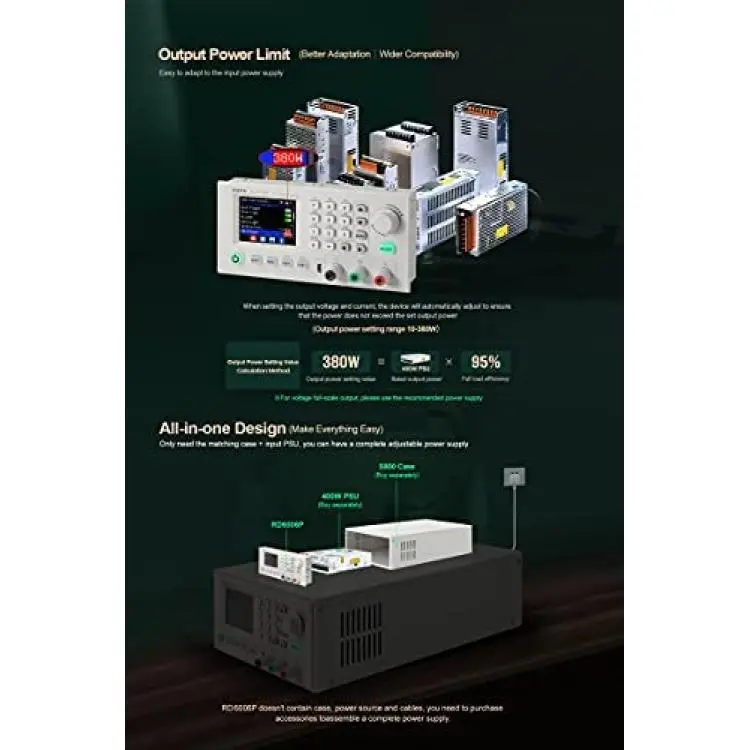

*Integrated panel, you only need a shell and a AC-DC power source to form a powerful and adjustable power supply.download the instruction from the card in the RD6006PW box
Description
Input voltage range: 7-70.00V
Output voltage range: 0-60.000V
Output current range: 0-6.0000A
Output power range: 0-360.00W
Output voltage accuracy: ±(0.5‰+4 digits)
Output current accuracy: ±(1‰+6 digits)
Output ripple typical: 20mV VPP
Working temperature range:-10?~40?
Constant voltage mode response time: 2ms?0.1A-5A load?
Capacity and energy statistical error: ±2?
Working mode: Buck mode: Voltage drop>10%*VOUT+2V
1*RD6006P-W, and you need to prepare a CR1220 battery for Time Display
Technical ParemeterWhat you can getNote before buyingThis power supply has communication function, it supports APP control, or PC software via USB connection, but please download the APP in advance to see if the APP has incompatibilities problem with your phone system, if it has, please do not order this product.For PC software, it only support win 7 and above for now. For APP, it only support android 5.0 and aboveIf there is any problem, please send us message, we will reply as soon as possible when we see the messagePlease DO follow the instruction to use this power supply.
