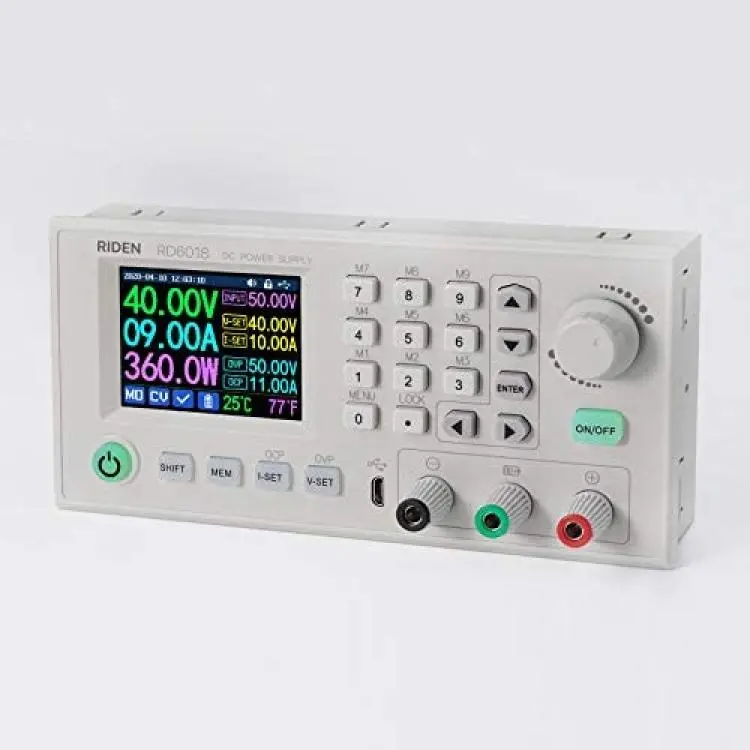

RD RD6018W 60V 18A Communication Version DC DC Voltage Current Adjustable Step Down Power Supply Buck Converter Voltmeter(RD6018W)
Product Code: MM25355
Availability: Pre-Order, Inquiry Price
About this product
*This is RD6018W only, not containing the case and input PSU, please notice the product you can get
*RD6018-W supports USB connection to PC software, it can also be connect to phone app, for the connection way, please check the instruction
*output voltage range 0-60.00V DC, output current range 0-18.00A

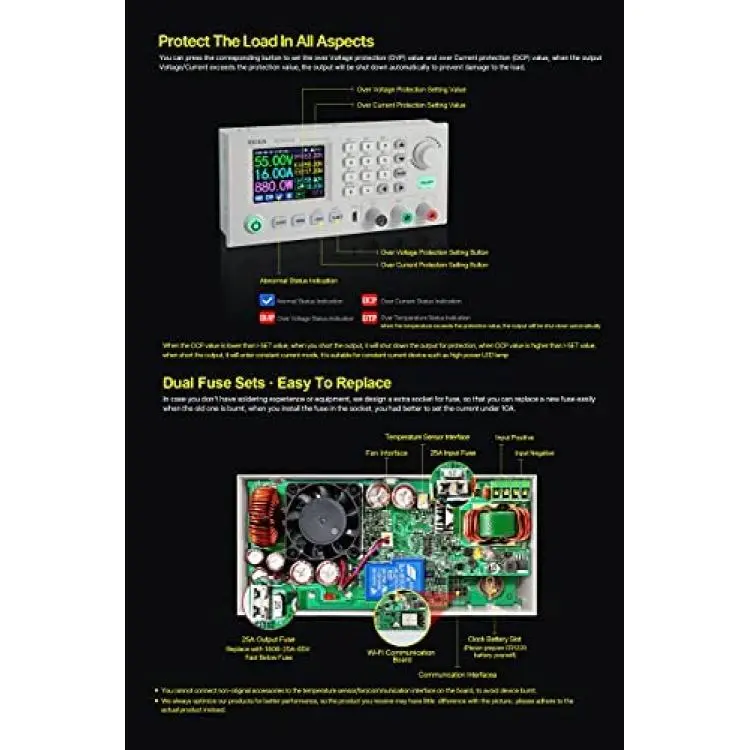

*There is a backup fuse in the box, if you burn the fuse, you can insert the fuse in the socket next to the burned one for short time use,but it can only work under 10A,if you want to use full output, replace the damaged fuse with good one
*Integrated panel, you only need a shell and a AC-DC power source to form a powerful and adjustable power supply.download the instruction from the card in the RD6018W box
Description
Model? RD6018-W
Input voltage range: 6-70.00V
Output voltage range: 0-60.00V
Output current range: 0-18.00A
Output power range: 0-1080W
Output voltage accuracy: ±(0.3%+3 digits)
Output current accuracy: ±(0.5%+5 digits)
Output ripple typical: 250mV VPP@6A
Working temperature range:-10?~40?
Constant voltage mode response time: 2ms?0.1A-5A load?
Capacity and energy statistical error: ±2?
Working mode: Buck mode:Voltage drop >1V and >10%
1*RD6018-W, and you need to prepare a CR1220 battery for Time Display
Technical ParemeterWhat you can getNote before buyingThis power supply has communication function, it supports APP control, or PC software via USB connection, but please download the APP in advance to see if the APP has incompatibilities problem with your phone system, if it has, please do not order this product.For PC software, it only support win 7 and above for now. For APP, it only support android 5.0 and aboveIf there is any problem, please send us message, we will reply as soon as possible when we see the messagePlease DO follow the instruction to use this power supply.
