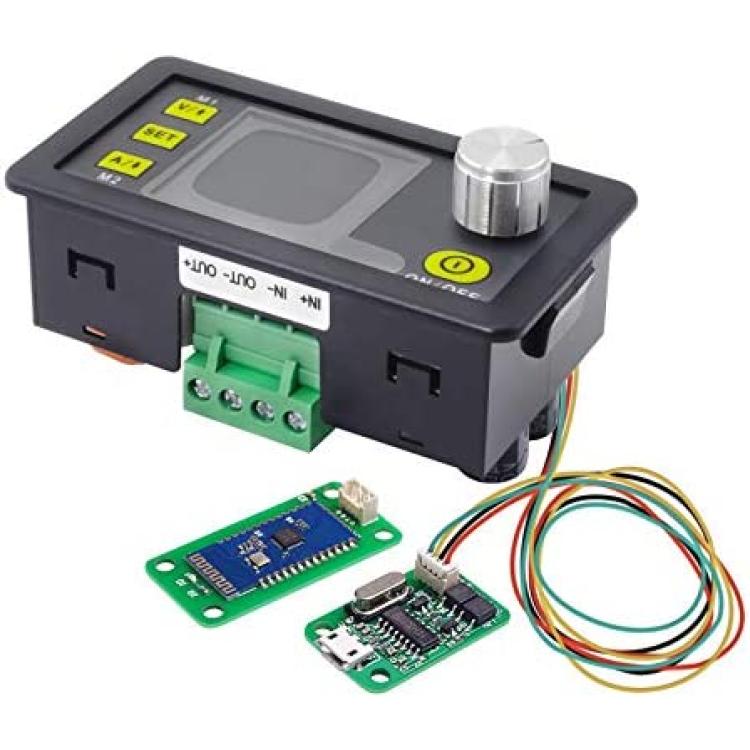

RD DPS3005 DC 6-40V to 0-32V 5A 160W Constant DC DC Voltage Current Step Down Stabilized Power Supply Module Buck Voltage Converter Voltmeter Support USB and Bluetooth Communication(DPS3005-USB-BT)

Technical Paremeter

Input voltage range: 6.00-40.00V Output voltage range: 0V-32.00V

Output current: 0-5.000A Output power range: 0-160.0W

Product Weight: about 113g Product Dimension: 79*43*48(mm) (L*W*H)

Open size: 71mm*39mm Output voltage resolution: 0.01V

Output current resolution: 0.001A Output Voltage accuracy: ± (0.5% + 3 digits)

Output Current accuracy: ± (0.5% + 5 digit)

Pay attention before buying:

Compatibility IssuesThere may be incompatibilities problems of the PC software with some Windows systems, if you really need it, please install and test the software before buying the product.There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need APP, please install and test the APP before buying the product.If the software crash on your PC or Phone, please order none communication version, or do not buy the device to avoid dispute later.Before buying this product, please download the upper computer software and test, if it fits your computer , you can buybefore using, please connect all wire well first, then turn on the input power supply, not turn on the input power supply first, then connect the wire. Otherwise it will cause the fuse and MOS damaged.if you connect inductive load (such as motor), the max working current is 1/3 of max current range. dont exceeds the limit.when you get the product in the first time, please dont use your hands to touch the components, because human static electricity can damage some chipsYou must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination.if you use AC-DC converter or transformer coil, please add rectifier (rectifier bridge) and filter (more than 4700uf filter capacitor). If input power supply is unstable, please add LC, L is over 47uH, C is over 2200 uf.
