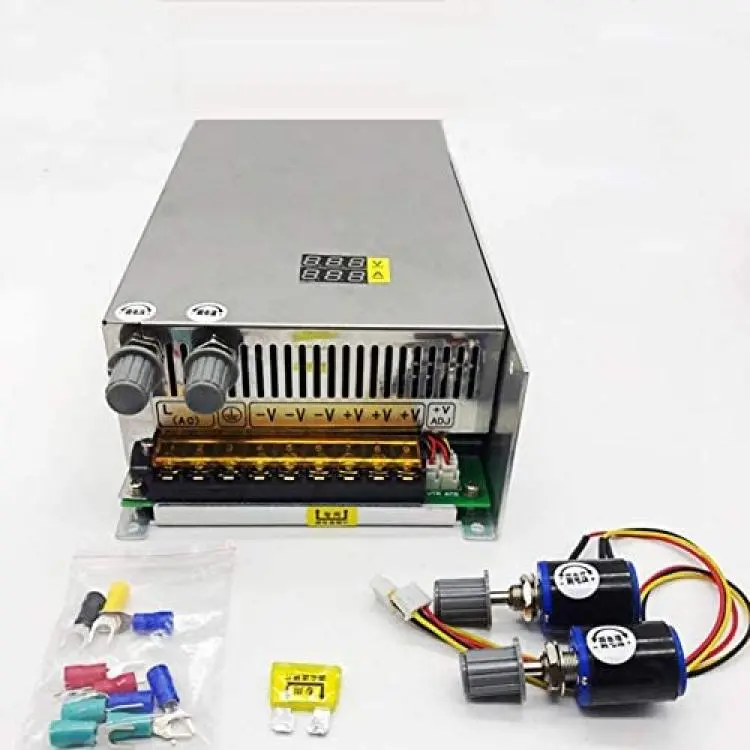

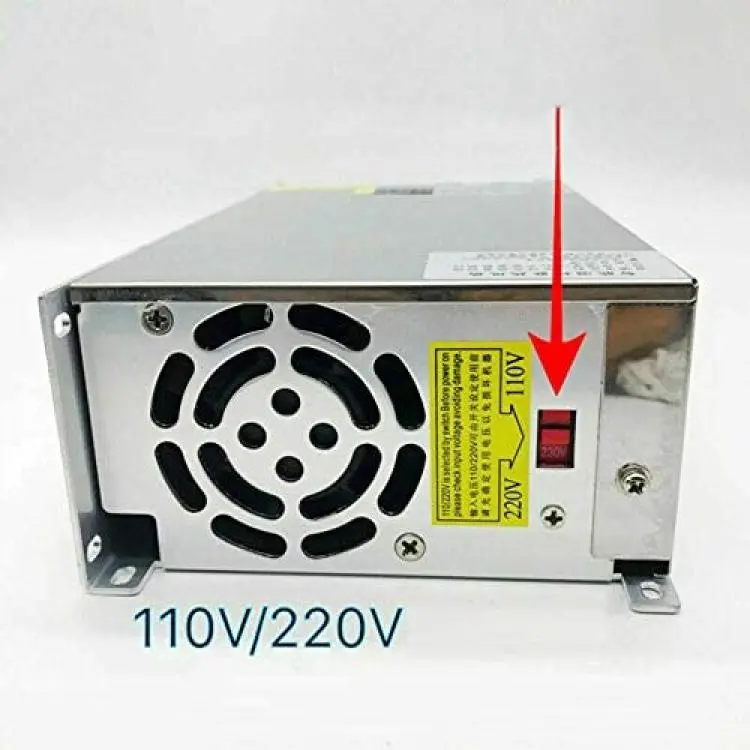

1000W 0-80V 0-12.5A Current and Voltage Adjustable Power Supply Current limiting Switching Power Supply 80V dc Transformer with Digital Display 110/220VAC

Specification

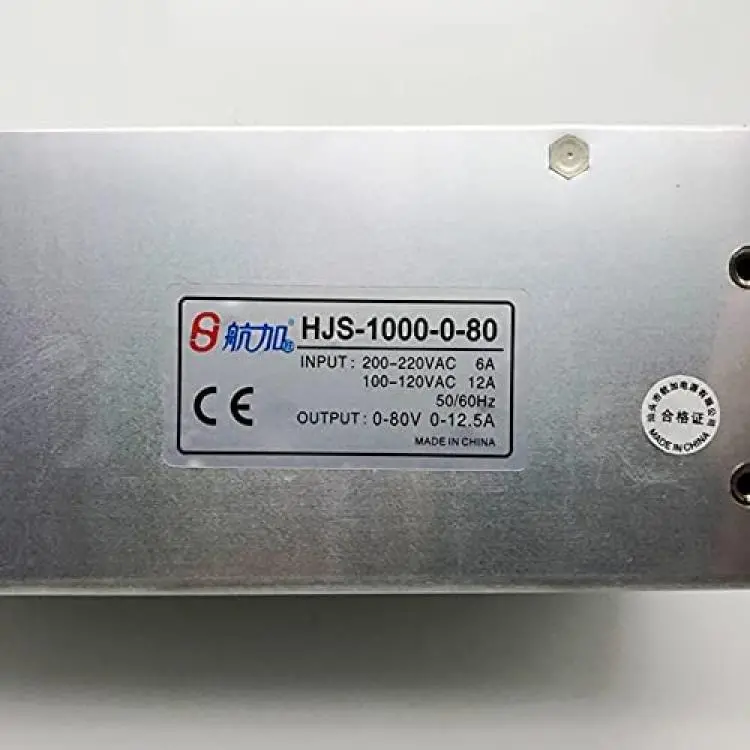

The current-limited adjustable power supply has stable and reliable performance. The DC output voltage is continuously adjustable from (0-80V). The adjustment accuracy is high. The high-precision multi-turn potentiometer is used. It has overload current limiting function and current limiting output (0-12.5A). Continuously adjustable, 0-5V signal control voltage and current, power 0-1000W
Operation to use
(How to limit current) to adjust current?This step just for adjust the current, if you no need adjus the current, you can not do it.
1. Turn off the power, the switching power supply without load. insert the plug ?special for adjust current) to the 6th and 7th ports of the wiring port, loosen the port screw with a screwdriver, and tighten with a screwdriver (at this time, connect to the listed power). ?as above the pciture.
2.Turn on the power, adjust right side knob, (adjust current knob), you can adjust the desired current limit parameter, and display the current parameter synchronously with the digital display Current can be adjusted in the whole process
3. Turn off the power, Remove the (special adjustment current plug), and then connect with your load.
When the load device is connected, the current value can be adjusted directly in real time. The maximum current value is the maximum current value of the load device. If the current adjustment knob clockwise exceeds the maximum current value of the device, the digital current value will not last. Real-time synchronized digital display, showing only the maximum current value of the device.Uses:
Mainly used for various battery charging, DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electroplating speed regulation, scientific research test, student experiment, etc., and a wide range of uses.
