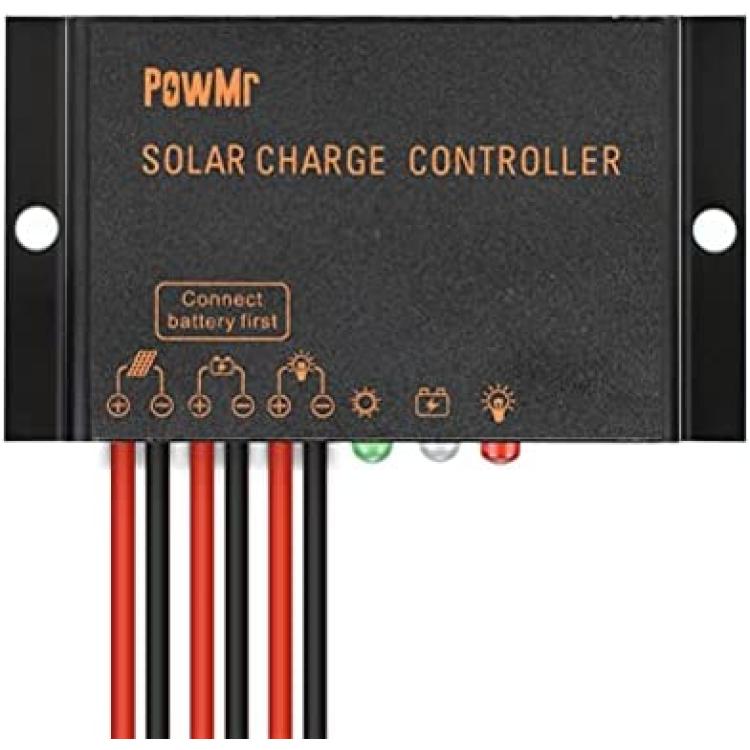

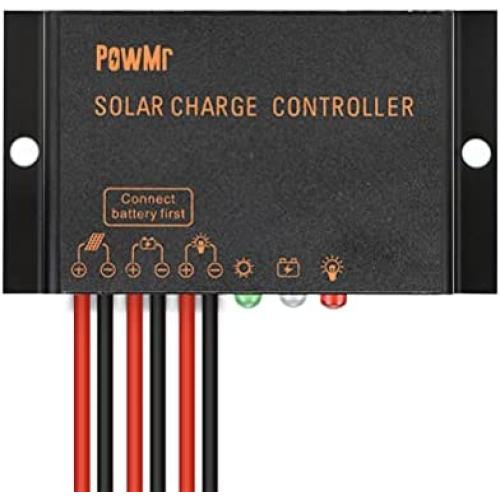

PowMr Solar Charge Controller Waterproof - 10A Charge Controller 12V 24V Auto Load on 24Hours IP68 Waterproof Solar Controller for Lead-Acid Battery (CMP-03 10A)

PowMr Waterproof PWM Solar charge controller 10a with built in high quality, high reliability components of ST, IR and Infineon, adopts the most advanced digital technique. Ensure it more safe and more power saving for household system, solar street light, solar garden lamp etc.

Key Features

Electronic protection:

It's helpful for finding out which part is wrong quickly.

Specification:

Specification:

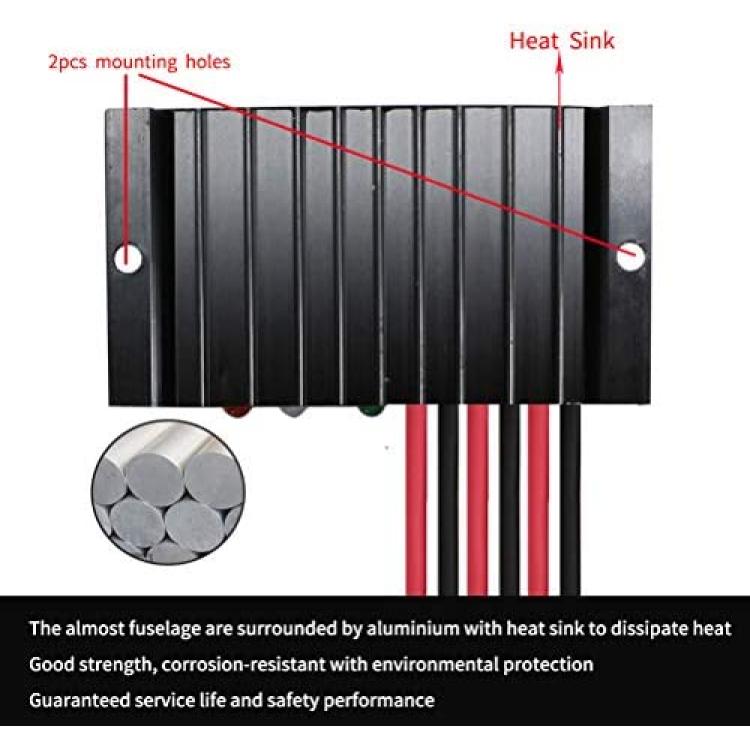

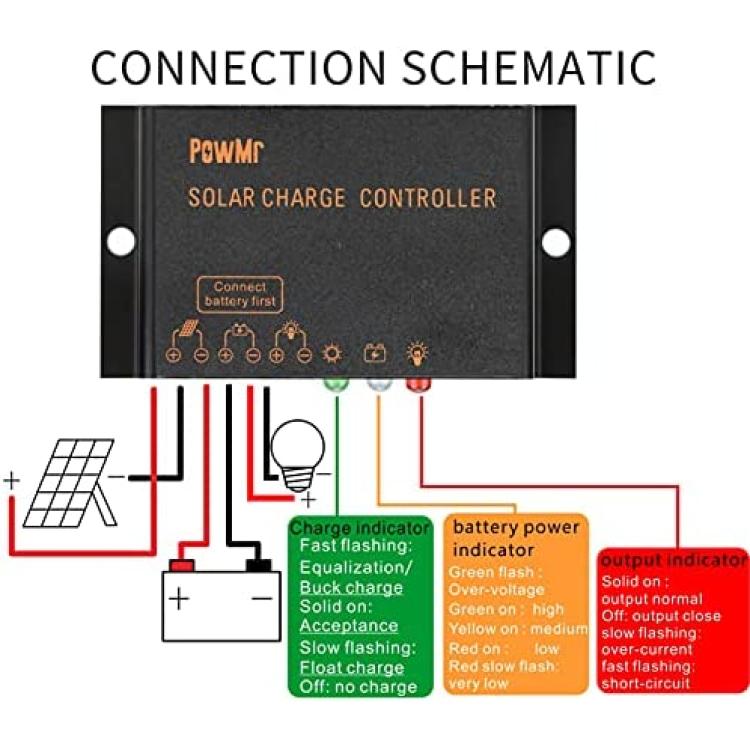

IP68 waterproof EASY TO MONITOR THE LED INDICATOR LIGHTS Package Include? 12V 24V auto identify positive ground.10A charge controllerIntelligent 4-stage PWM charging.The PV can convert light energy into electric energy stored in batteries which will be protected by the solar controller. - The solar controller integrates Three LED indicator lights: green (Charge indicator), White (BAT power indicator) and Red (Output indicator).Easy to mount directly to the frame of PV, the almost fuselage are surrounded by aluminium with heat sink to dissipate heat.The charge controller provides short-circuit, open-circuit, over charge, overload protection, as well as Dual MOSFET Reverse current and low heat protection.Automatically detect 12V or 24V DC system voltages4-stage PWM charginggreen (Charge indicator),White (BAT power indicator)Red (Output indicator).Color: BlackRated Charging Current:10ARated Discharging Current:10AMax Solar Input Voltage: ?41VSystem Voltage:12V/24V Auto AdaptSelf consume: ?10mAOperating Temperature: -20 ~ +60?Equalize Charging Voltage:14.4V/28.8VBulk Charging Voltage:14.2V/28.4VFloat Charging:13.8V/27.6VDischarge Stop Voltage:11.2V/22.4VDischarge Reconnect Voltage:12.6V/25.2VHousing: Aluminum AlloyMaximum Wire Size:16AWGSize/Weight: 3.23* 2.94* 0.83in/0.27lb 1 X 10A Waterproof Solar Charge Controller1 X English User Manual
