Wind Turbine Charge Controlle Waterproof Wind Turbine Generator Charge Controller Regulator 12V/24V
About this product
*This controller controls the wind turbine to automatically charge the battery.
*To control the wind turbine generator battery charge automatically; Protect the wind generator and prevent the battery from overcharging.
*Fully waterproof protection, fully waterproof and fully waterproof, with protection level above IP67
*The rectifier and brake circuit part of the controller adopts integrated module design.
*When the battery is full, the fan is braked by the internal circuit automatic control. When the battery voltage drops to the recovery voltage, the fan resumes charging the battery, thus protecting the fan and the battery.
Description
Specification:
Condition: 100% Brand New
Model: FW12/24
Battery Rated Voltage: 12/24V
Wind Turbine Rated Power: 300W/600W
Brake Start Voltage (Factory Value): 14.5V/29V
Brake Recovery Voltage (Factory Value): 13.2V/26.4V
Display Mode: Led (Light-Emitting Diode Display)
Working Temperature And Humidity Range: -35-+75
Quiescent Current: 15 mA
Protection Level: IP67
Weight: Approx. 255g / 9.0oz

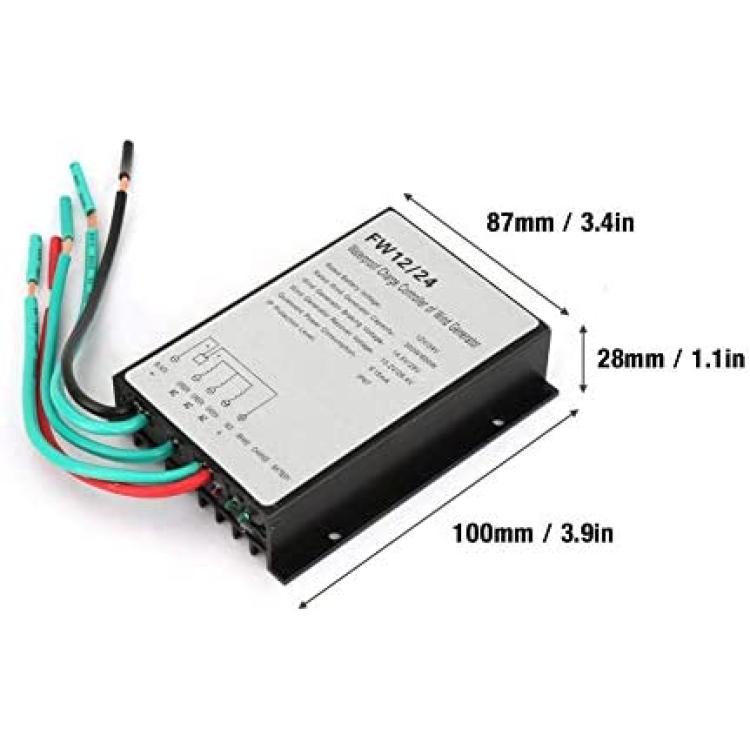

Size: Approx. 100 * 87 * 28mm / 3.9 * 3.4 * 1.1in
Wiring:
1. Connect the positive and negative terminals of the battery to the positive (red) and negative (black) terminals of the battery.
2. Connect the three-phase output voltage of the wind turbine to the three-phase input (green line) terminal of the controller fan.
