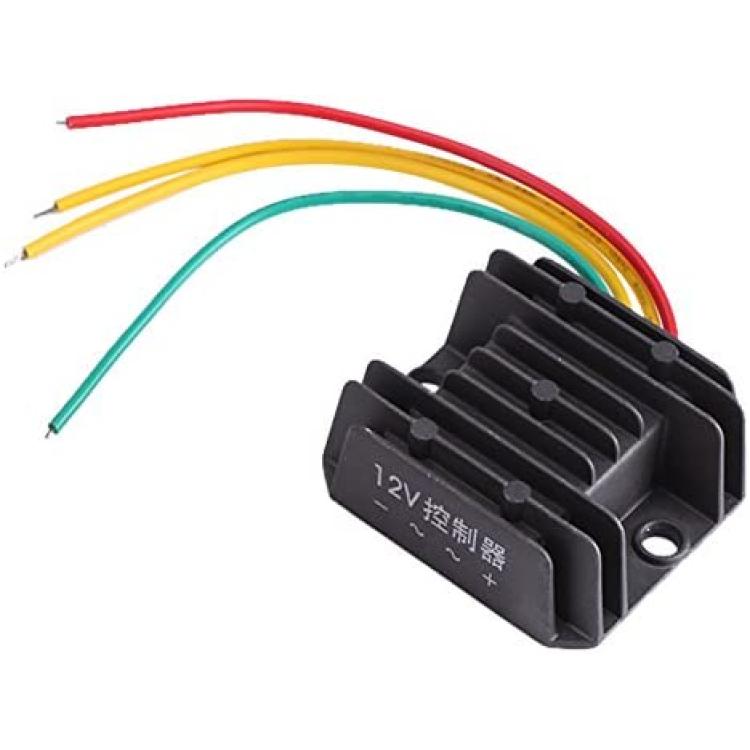

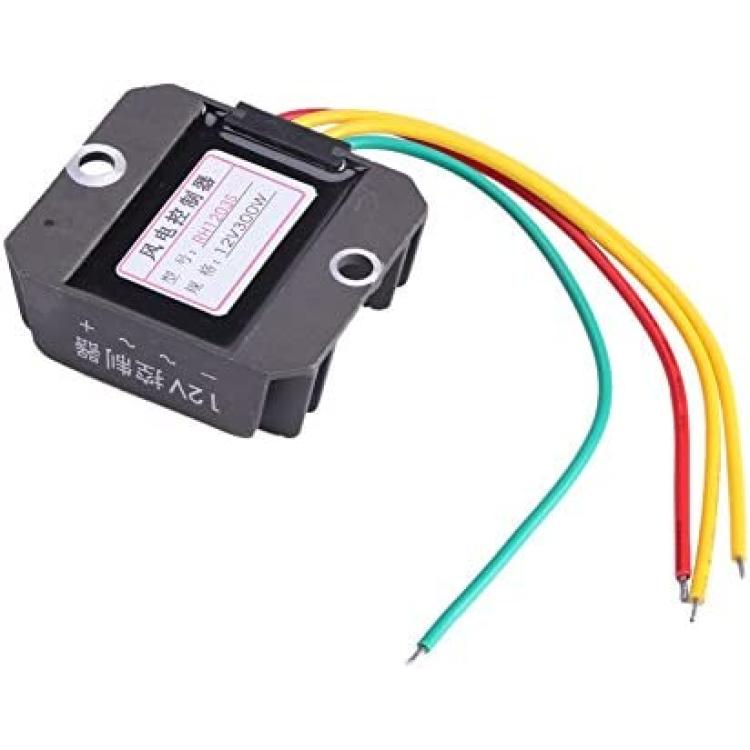

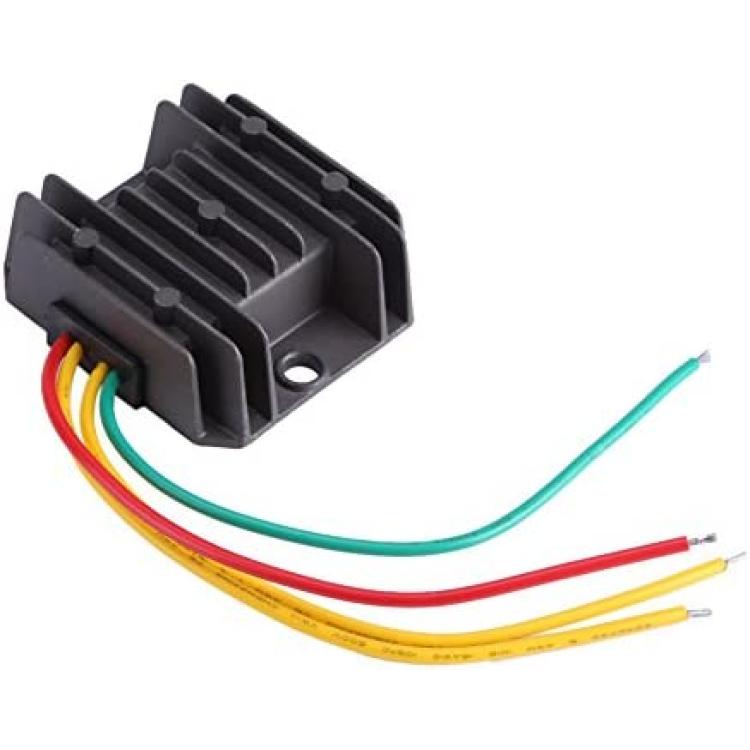

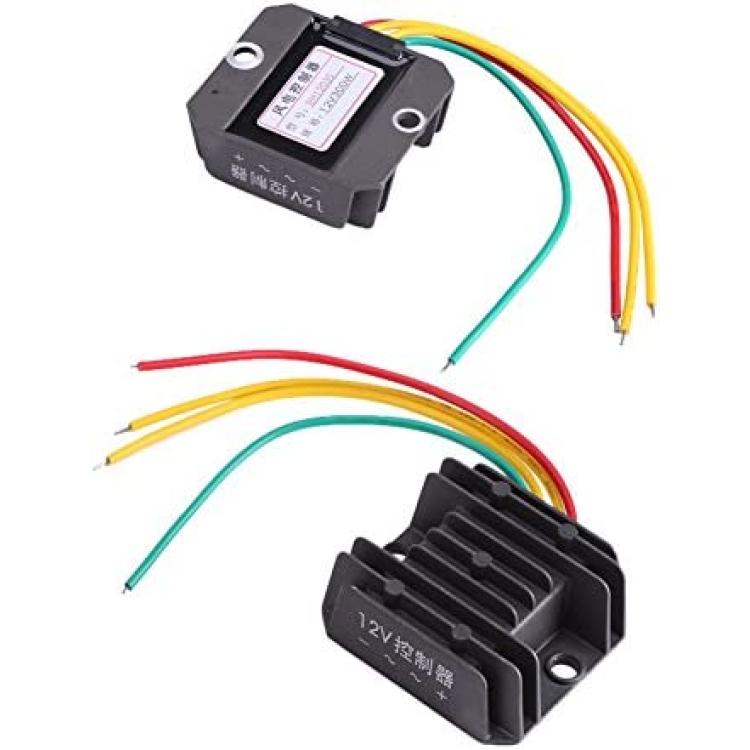

12V 300W Wind Turbine Generator Charging Controller Regulator Durable in Use Waterproof Wind Charge Controller in Use Single Phase/Three Phase(Single Phase)
About this product
*【High Quality】Our Wind Generator Controller is made of high quality material for long durability and stable performance.
*【Function】Protect the wind generator and prevent the battery from overcharging.
*【Feature】To control the charge of wind turbine generator battery.
*【Easy to install】Easy to install and convenient to use.
*【Optional】Single phase and three phase for you to choose.
Description
Specification:
Condition: 100% Brand New
Shell Material: Aluminum + Epoxy Resin
Color: Black

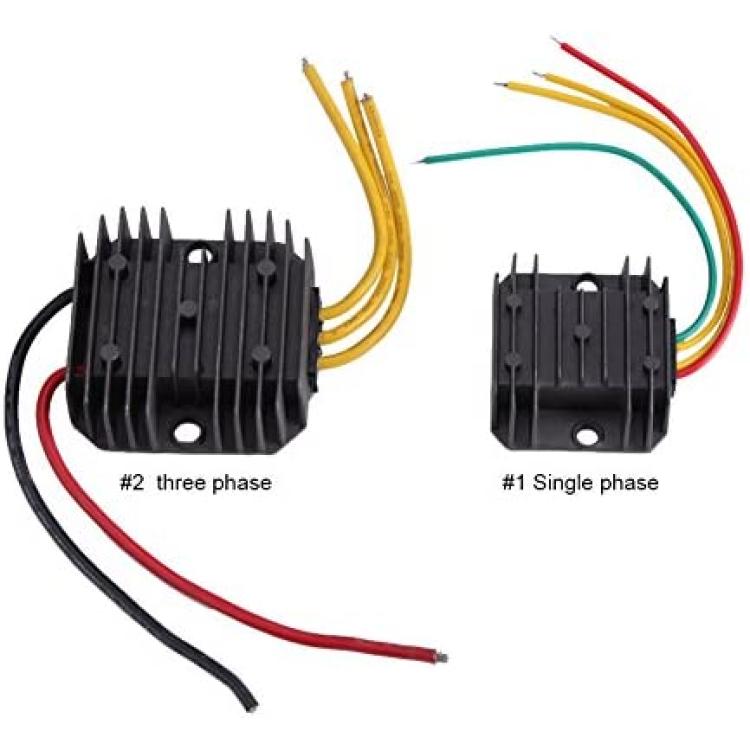

Type: Single Phase, Three Phase(Optional)
For Single Phase
Rated Power: 300W
Battery Rated Voltage: DC 12V
Controller Output Current: 15A
Controller Output Voltage: 14.2±0.3V
Start Braking Voltage: 14.5±0.5V
Recover Charging Voltage: 13.5±0.5V
Weight: approx. 121g
Connection Method: 2 yellow wires are connected to wind turbine generator, red wire for battery positive pole, green wire for battery negative pole.
For Three Phase
Rated Power: 300W
Battery Rated Voltage: DC 12V
Controller Output Current: 10A
Controller Output Voltage: 14.2±0.3V
Start Braking Voltage: 14.2±0.5V
Recover Charging Voltage: 13.5±0.5V
Weight: approx. 247g
Connection Method: 3 yellow wires are connected to wind turbine generator, red wire for battery positive pole, black wire for battery negative pole.
Package Included:
1 x Wind Turbine Generator Charge Controller
