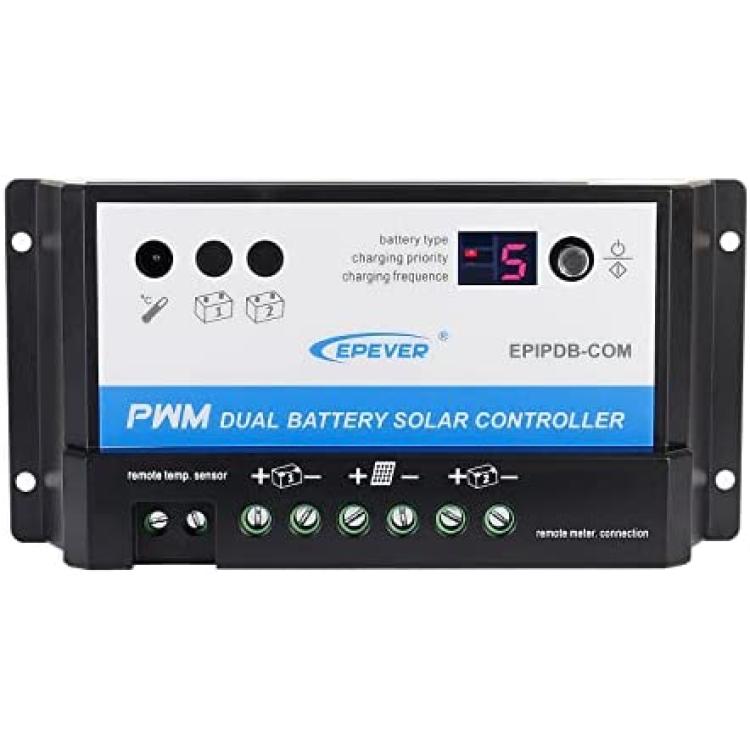

Temank Dual Battery Solar Charge Controller 20A 12V 24V Duo-Battery Solar Controller for RVs Caravans and Boats
About this product
*Fit for RVs,Caravans and boats which with two batteries. Support 3 battery types: GEL,Flooded,Sealed
*Battery Voltage: 12V/24V auto; Rated Charge & Discharge Current: 20A
*High efficient PWM charging, improve the solar system performance and protect the battery

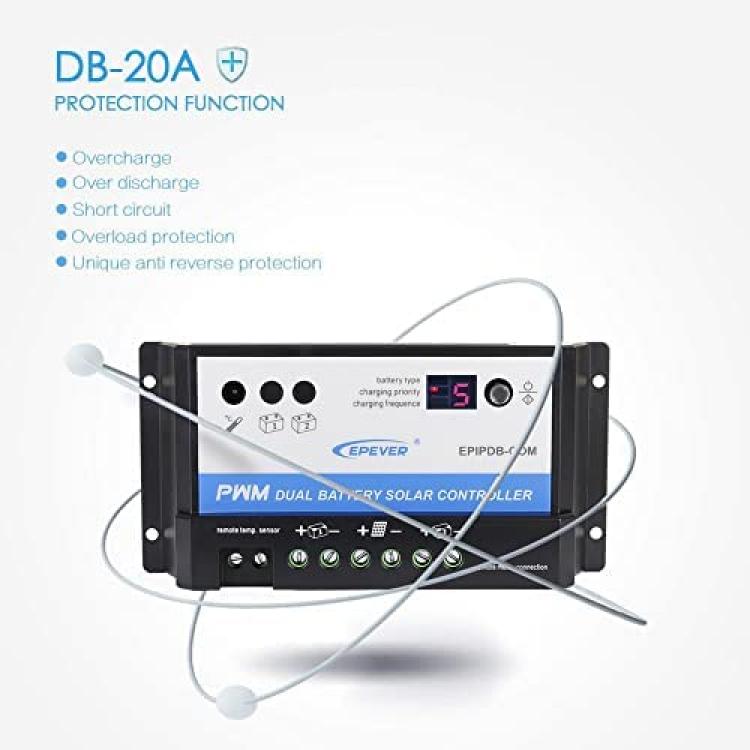

*Protection: over charging, short-circuit, reverse polarity, revert current to PV
*12 months warranty and professional after-sale service.
Description
Features:
Dual battery charging
12V/ 24V auto work
Battery type selection
PWM Charge mode
Digital LED Indicator Light
Temperature compensation
Easy operation with 4 keys
Electronic protection
Over load protection
Short circuit protection
Reverse polarity protection
Over charging or discharging protection
Reverse current protection during night
Specifications :
Solar System:12V/24V Auto recognition
Battery Types:Sealed, Flooded, VRLA(GEL, AGM)
Rated Charge & Discharge Current: 20A
Max PV Input Power:240W (12V),480W(24V)
Max Solar Input Voltage: 30V (12V), 55V (24V)
Operating Temperature: -31°F to +131°F
TROUBLESHOOTING
Look at the indicator light in the upper left corner of the controller.
1. Indicator light blinking, short circuit, check thePV and battery, and make sure that they are in correct connection
2. Indicator light slowly flashing?fully charged
3. Indicator light ON, on charging
4. Indicator light frequent flashing, with battery, no charging
5. Indicator light OFF, no battery?or over voltage
Package include:
1 x 20A Duo Battery Solar Charge Controller
1 x User Manual in English
