Engine Speed Controller, Electric Generator Governor Engine Speed Controller Electronic Governor Diesel Generator Control Regulator
About this product
*【Scope of Application】The governor has a wide frequency range and a maximum output current of 15A, which can be applied to steam, diesel, and natural gas engines with high sensitivity and small speed changes.
*【High Quality】The product is made of high-quality materials, good material, can be used for a long time, and has a long service life.
*【Function】For instantaneous load changes, it can quickly and accurately control the engine speed, has the engine idle speed setting function, and is equipped with control terminals for remote control.
*【Quality Assurance】The products are produced in accordance with strict quality standards before they leave the factory, with excellent performance and can be used with confidence.
*【Quality Service】We strive to provide you with high quality and convenient service. You are welcome to contact us if you have any problem about our product, we will give you a satisfactory reply.
Description
Specification:
Item Type: Engine Speed Controller
Working Voltage: 12/24VDC
Output Current: Minimum 0.5A maximum 15A
Operating Frequency Range: 600-9500Hz (MPU speed sensor signal)
Idle Frequency Range: 30-85% of operating frequency (adjustable)
Sensitivity: When the load is stable, the speed variation range is less than ±0.25%
Temperature Difference Stability: No more than ±0.5% between -40-+85
Remote Speed Adjustment Range (2 Groups): About ±5% adjustment range when using 5K? potentiometer
Speed Rise Time: 3-20 seconds (adjustable)
Operating Temperature: -40-+85
Storage Temperature: -40-+85
Relative Humidity: 95% or less
Vibration: 3G at 100Hz-2KHz

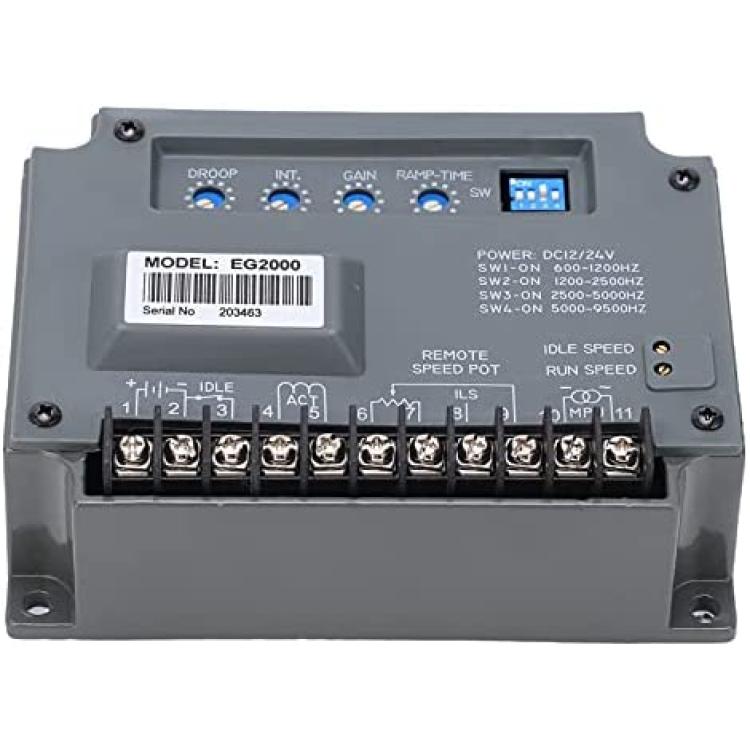

Parameter Adjustment Potentiometer:
DROOP: Adjust the rate of speed drop
GAIN: Adjust
ACT output gain loop
INT.: Integral loop stability adjustment
RAMP-TIME: Speed rise time
SPEED: Speed adjustment
IDLE: Idle speed with line

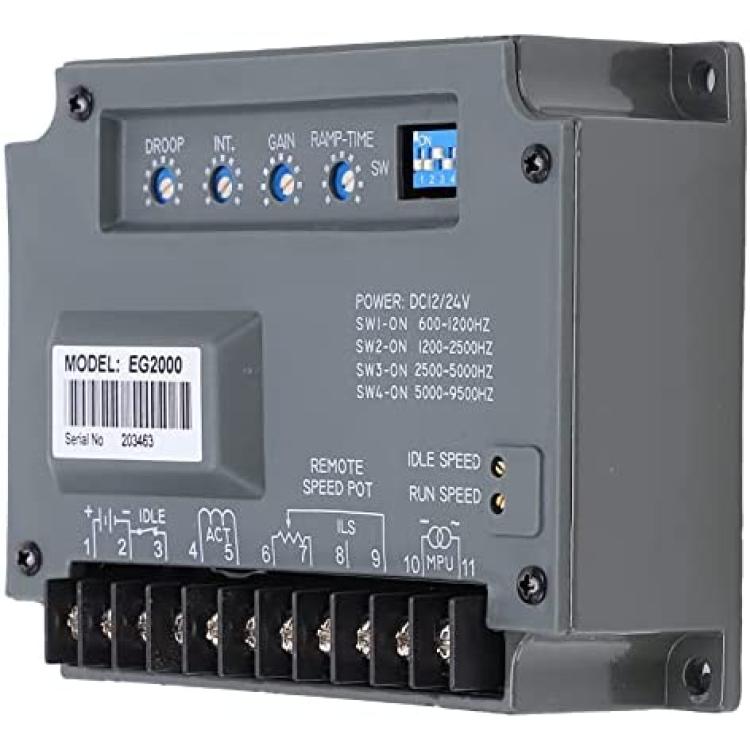

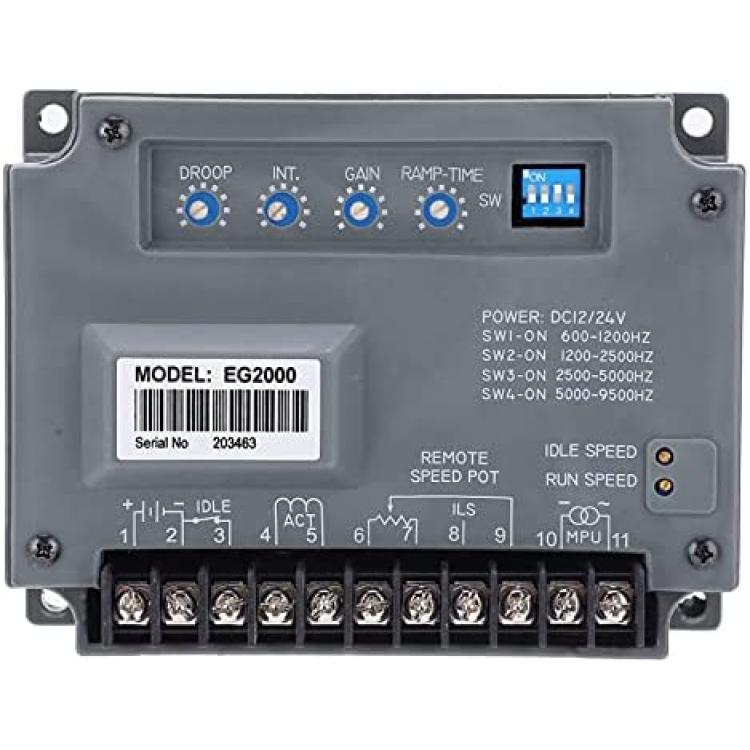

DIP Switch Description:
SW1: ON 600-1200 Hz
SW2: ON 1200-2500 Hz
SW3: ON 2500-5000 Hz
SW4: ON 5000-9500 Hz
Package List:
1 x Engine Speed Controller 1 x User Manual
