12V ESD2210 Engine Speed Control Unit ESD2210-12controller Governor
About this product

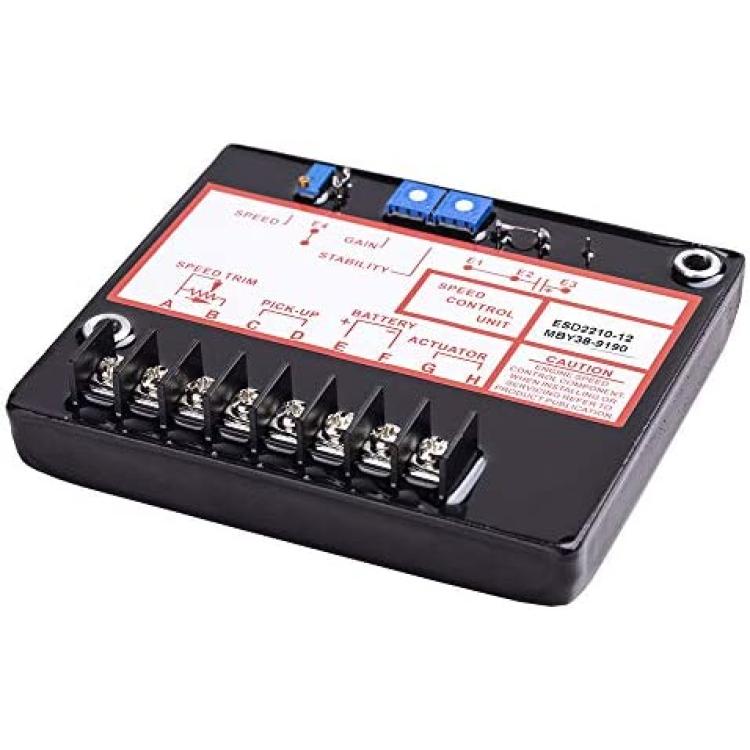

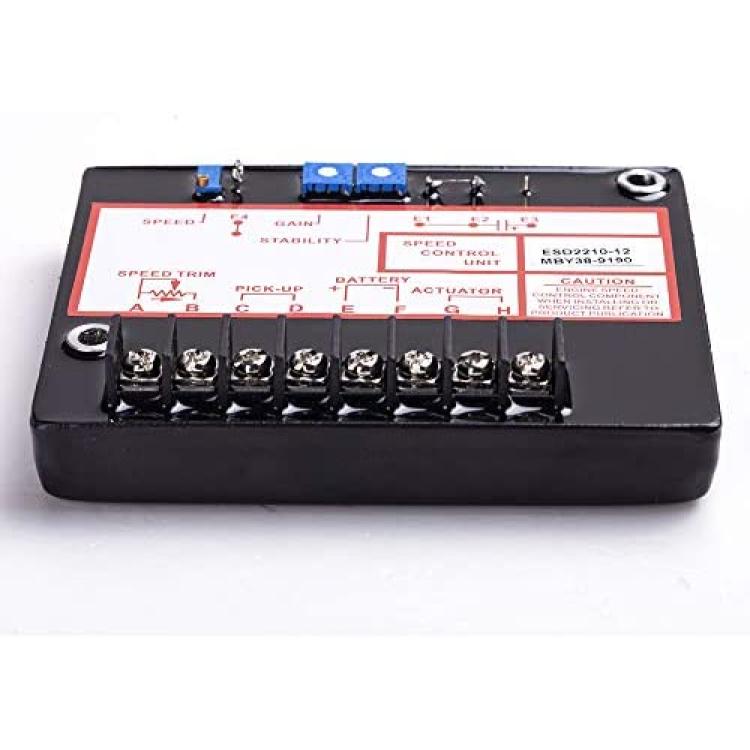

*The ESD2200 Series speed control unit is an all-electronic device designed to control engine speed with fast and precise response to transient load changes.
*ESD2210 Speed controller have 12V product ESD2210-12 and 24V product ESD2210-24. Pls choose the right product.
*ESD2210 is closed loop control, when connected to a proportional electric actuator and sup plied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode.
*ESD2210 is designed for high reliability and it’s hard potted to withstand the engine environ ment.Simplicity of installation and adjustment was foremost in the design.
*Non-interacting performance controls allow near optimum response to be easily ob tained.
Description
12V/24V ESD2210 Engine Speed Control Unit ESD2210-12 ESD2210-24 controller Governor
ESD2200 Series Speed Control Units
ESD2210-12: Standard unit, 12V
ESD2210-24: Standard unit, 24V
The ESD2200 speed control unit is an all-electronic device designed to control engine speed with fast and precise response to transient load changes.
This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode.

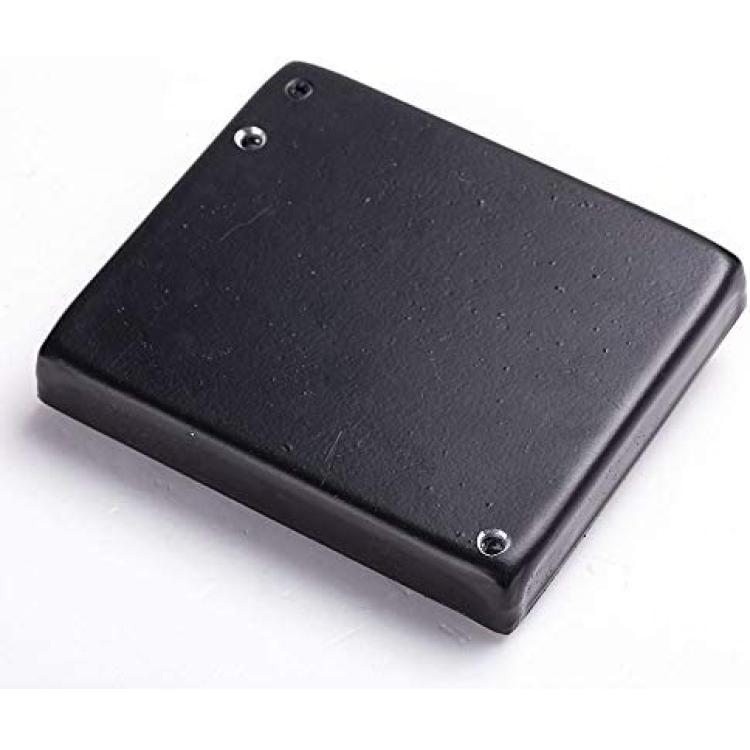

It is designed for high reliability and it’s hard potted to withstand the engine environment.
Simplicity of installation and adjustment was foremost in the design.
Non-interacting performance controls allow near optimum response to be easily obtained.
Other features of Engine Speed Control Unit ESD2210 include protection against reverse battery voltage, transient voltages, accidental short circuit of the actuator, and fail safe design in the event of loss of speed sensor signal or battery supply.
Specifications of ESD2210 Engine Control Unit
Performance
Isochronous Operation/Steady State Stability : ±0.25% or better
Speed Range/Governor: 1K-7.5K Hz continuous
Speed Drift with Temperature: ±1% Maximum
Speed Trim Range : ± 250 Hz. Typical
Terminal A Sensitivity : 130 Hz., ± 15 Hz / Volt @ 5.1K Impedance
Input Power
Supply: -12; 8-20VDC, -24; 16-32VDC (Transient and Reverse Voltage Protected)
Polarity: Negative Ground (Case Isolated)
Power Consumption: 60 mA continuous plus actuator current
Actuator Current Range @ 77°F (25°C): 10Amps continuous
Speed Senior Signal: 0.5-50 Volts RMS
