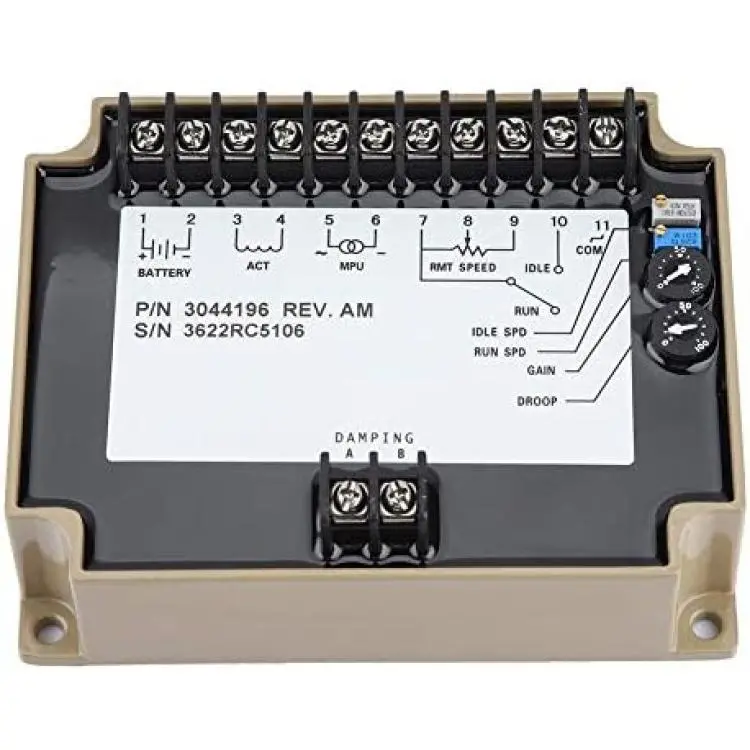

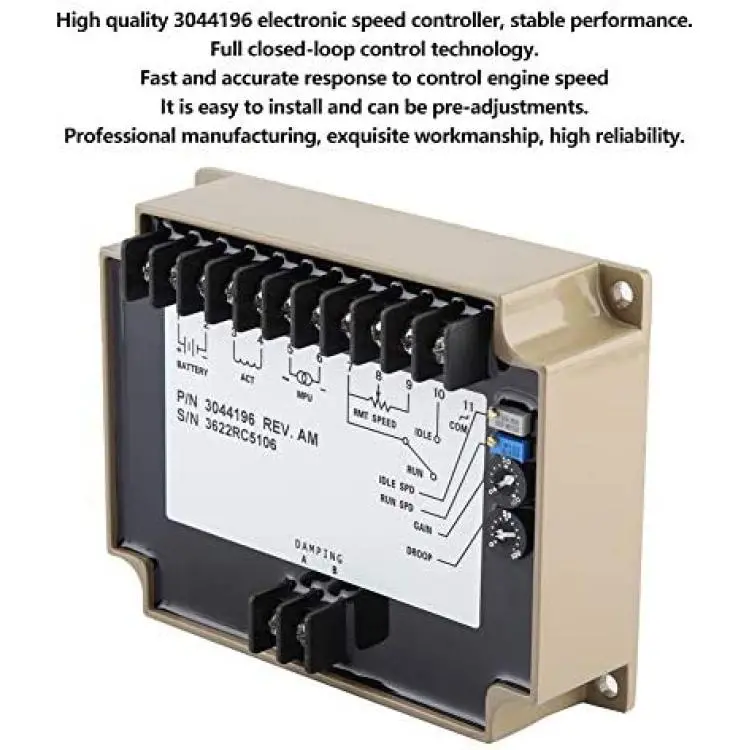

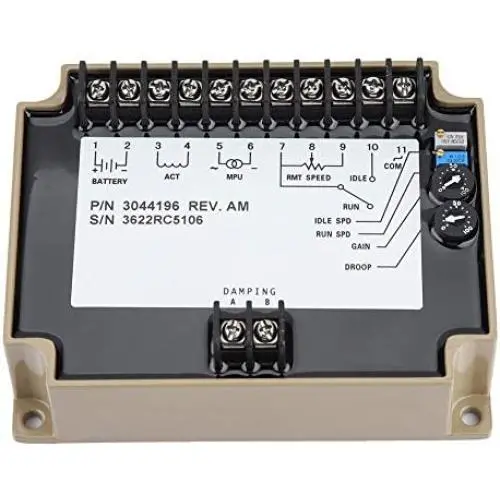

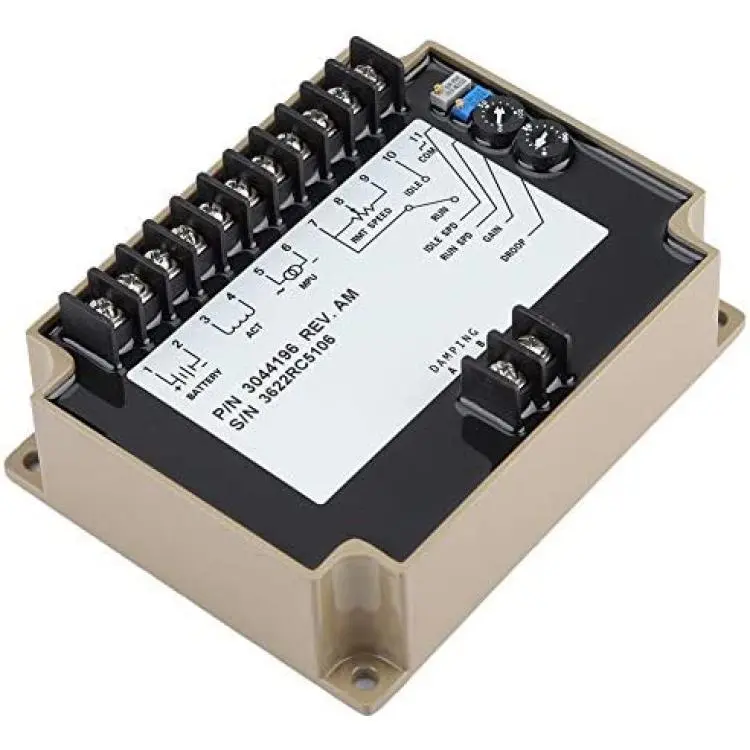

Generator Speed Controller Electronic Engine Speed Controller Governor 3044196 Generator Speed Control Board 1KHz~6.5khz
About this product
*✔【FAST AND ACCURATE RESPONSE】-----This 3044196 electronic speed controller with full closed-loop control technology, it is the moment to load changes with fast and accurate response to control engine speed, when connected to the matching EFC Series electric actuators and magnetic speed sensor signal , can be perfectly controlled engine.
*✔【PREVENT REVERSE VOLTAGE】-----In the design, it is easy to install and can be pre-adjustments, including adjusting the idle speed and work, to assist for input multiple machines or special purpose machines, as well as to prevent reverse battery voltage, transient voltage pulse implementation of the short-circuit fault and security in case of loss of speed sensor signal or power supply and so on.
*✔【FULL CLOSED-LOOP CONTROL】-----High quality 3044196 electronic speed controller, stable performance. Full closed-loop control technology. Fast and accurate response to control engine speed
*✔【EASY TO INSTALL & PRE-ADJUST】-----It is easy to install and can be pre-adjustments. For input multiple machines or special purpose machines.
*✔【OPERATING FREQUENCY OF 3800HZ】-----The above performance parameters are measured at the operating frequency of 3800Hz.
Description
Specification:
Condition: 100% brand new
Model: 3044196Â
Rotational speed stability: better than 0.25%
Speed range: 1KHz to 6.5khz
Thermal stability: maximum ±0.7%
IDLE adjustment: 260±20Hz~ 85% of rated speed
DROOP adjustment:
Minimum position: 15Hz±6Hz/ change of load current per ampere
Maximum position: 400Hz±75Hz/ ampere load current variation
External speed regulation: ± 200 Hz (external 1?k)
AUX input sensitivity: 148Hz / 1V, ±10Hz, impedance 1m?Â
Environment:
Operating temperature range: - 40 ? ~ 85 ?
Working humidity range: 95% Max
Temperature: - 55 ? ~ 92 ?
Vibration: 20-100hz 500mm/Sec.
Input power:
Power supply voltage: 12V and 24V DC battery system
Ground polarity: negative
Power consumption: 40mA
Actuator continuous current: Minimum 1A; Maximum 4.5AÂ
Speed sensor signal: 2~120V RMS
Package List:
1 * Generator Speed Controller
Note:Â
The above performance parameters are measured at the operating frequency of 3800Hz.
