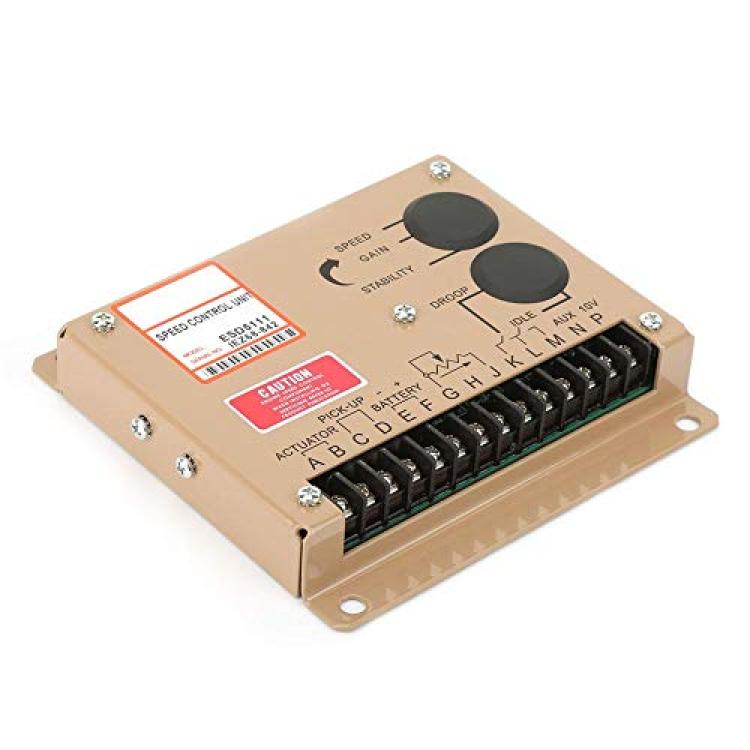

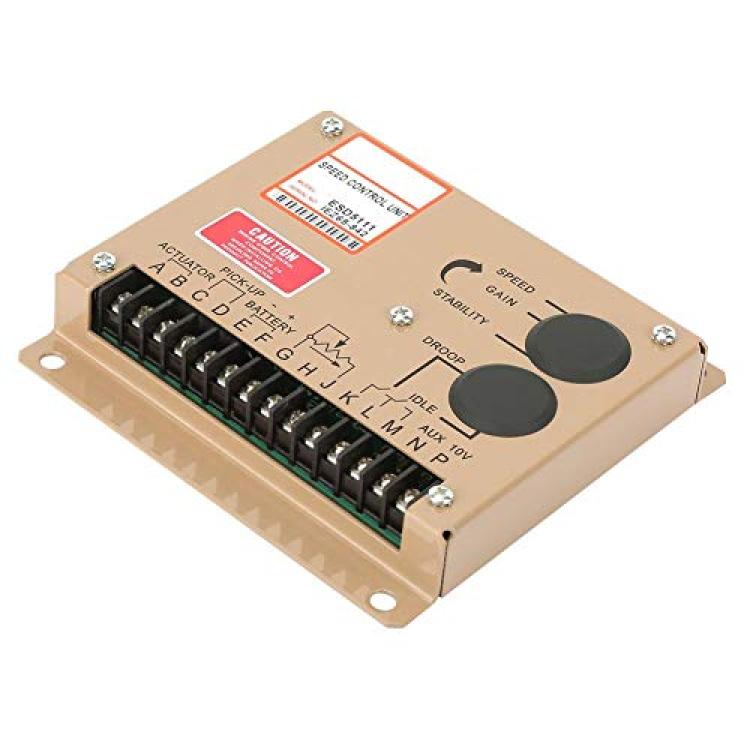

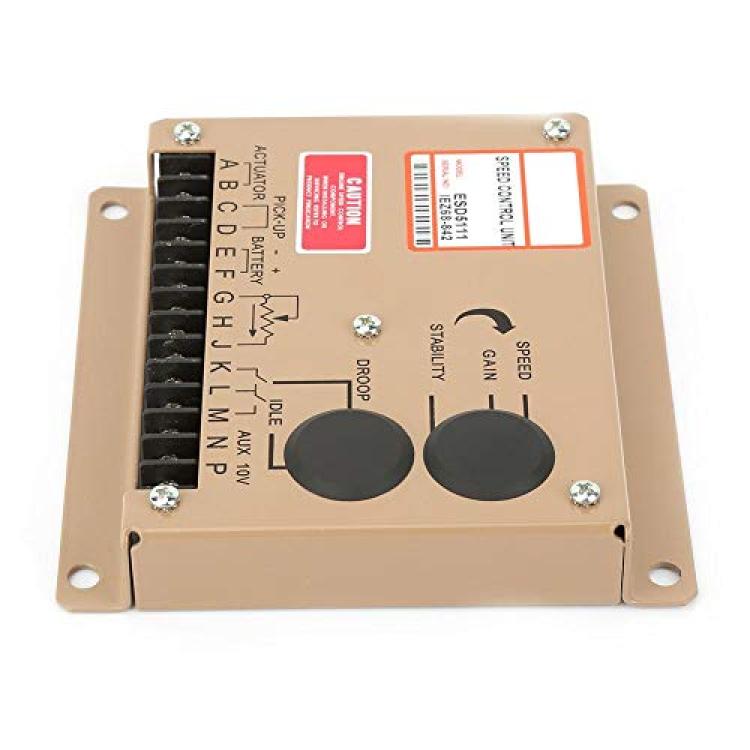

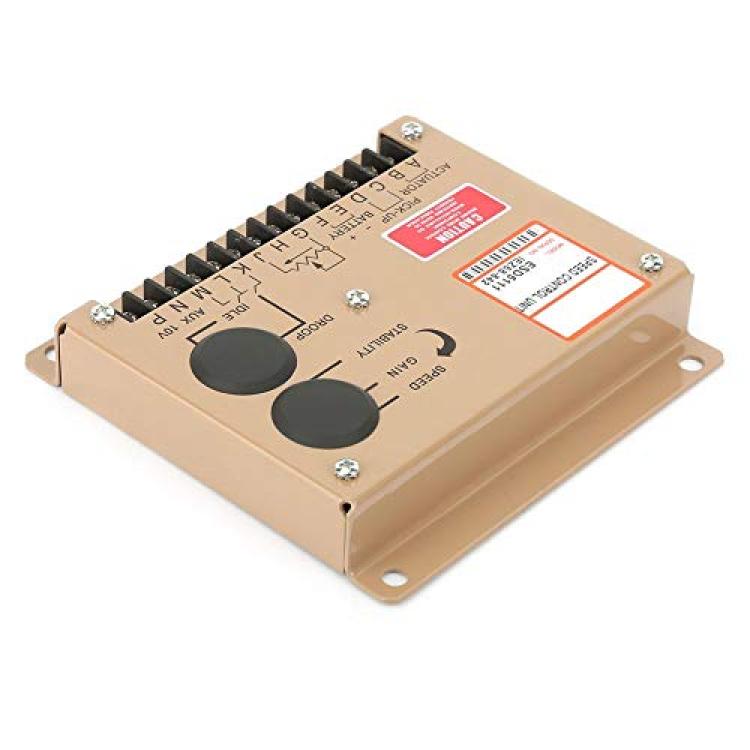

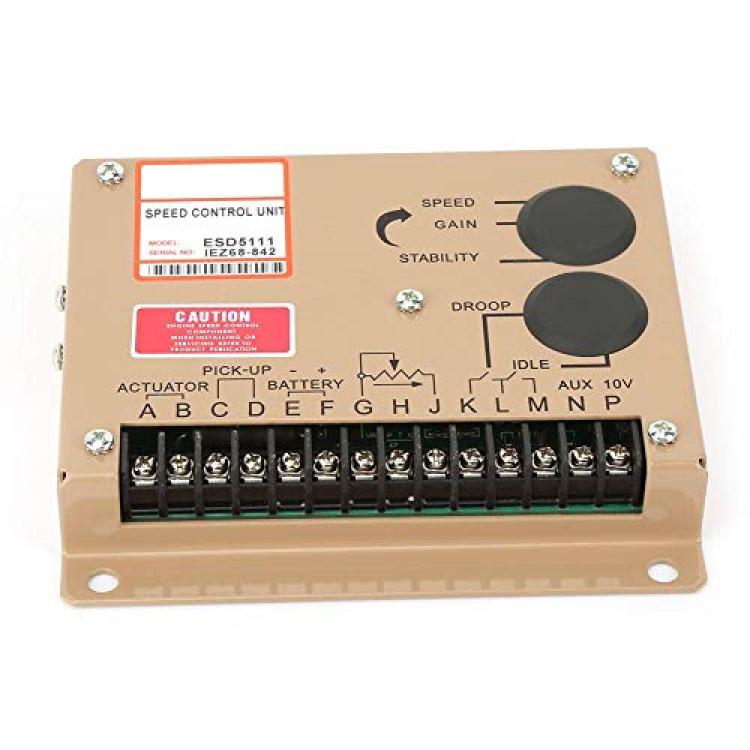

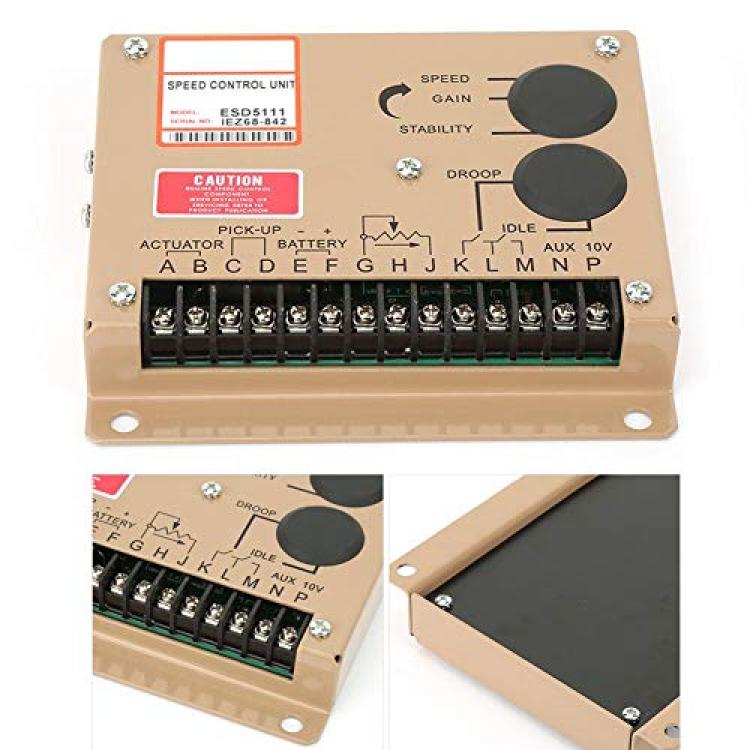

Wal front ESD5111 Generator Electronic Engine Speed Controller for Motor Speed Control Adjustable Speed Regulator Board
Availability: Pre-Order, Inquiry Price
About this product
*ATTRIBUTES: The ESD5111 speed control unit is an all-electronic device designed to control engine speed with fast and precise response to transient load changes.
*WORKING PRINCIPLE: Based on a closed loop control, the basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed rate.
*FUNCTION: It has speed control function,high/low speed switch function, speed fine adjustment, automatic stop protection function.
*HIGH SPEED START: Steady speed governing factor (speed drop) is adjustable, and it supports high speed start, full range speed adjustment and parallel operation function.
*NOTICE: The ESD5111 speed control unit provides a series of protection once the power supply is reversely connected, transient over-voltage or actuator fault happens, or speed input breaks.
Description
Specification:
Model: ESD5111
Speed control unit: IEZ68-842
Speed stability: better than ±0.25%
Speed range: 1KHz-7.5KHz
Thermal stability: up to ±1%
IDLE adjustment: 160±20Hz-95% of rated speed
DROOP adjustment:
Minimum position is 15Hz ± 6Hz / load current change per ampere
Maximum position 400Hz ± 75Hz / load current change per ampere
External speed adjustment: ±200Hz (external 1KQ)
Package list:
1 * Engine Speed Controller
Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
