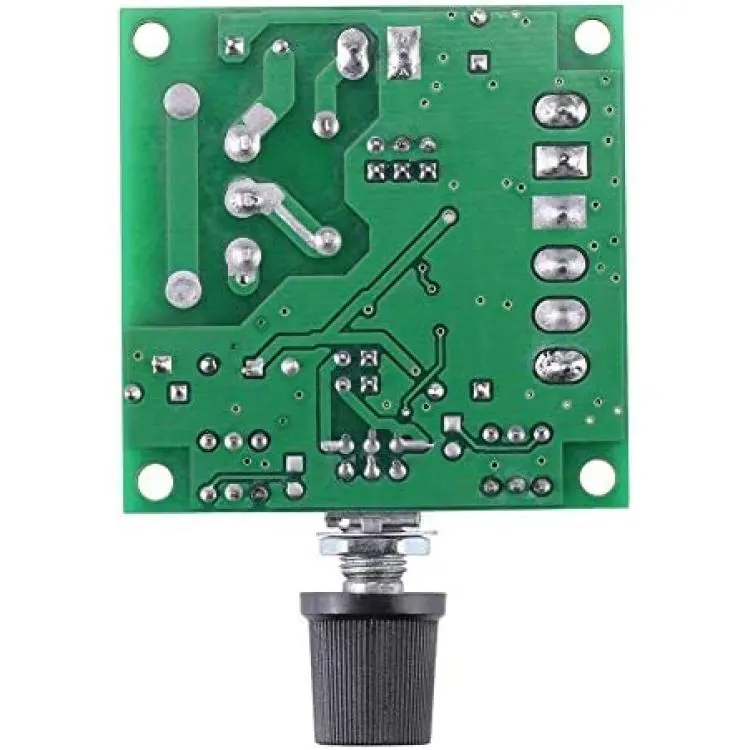

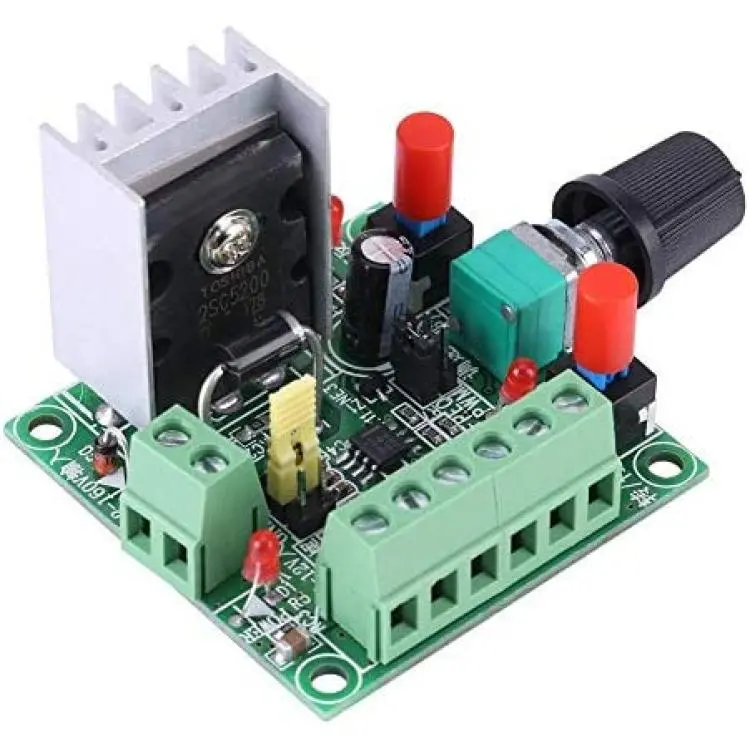

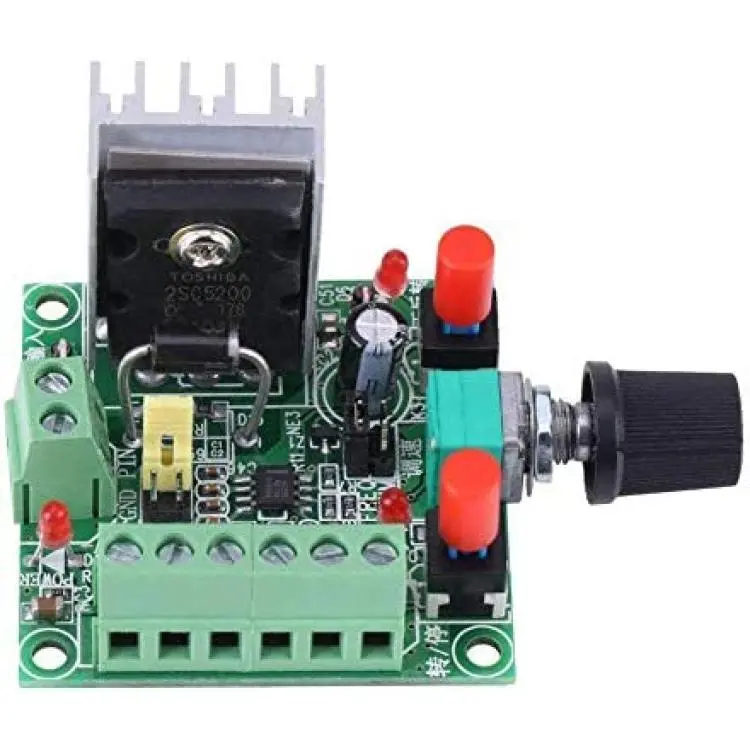

DC 5-12V/15-160V Stepper Motor Drive,PWM Adjustable Stepper Motor Controller Signal Generator Speed Regulator
About this product
*Power supply: 15-160VDC or 5-12VDC. If you are using 5-12VDC power, positive end connect DC 5-12V Input, negative end connect Common Cathode End.
*3 Frequency: High: 5.8KHZ-127KHZ, Mid: 590HZ-15.8KHZ, Low: 82HZ-2.3KHZ
*To control the stepper motor, mus connect to the driver
*PUL + and PUL- pulsed positive and negative; EN + and EN- is to enable the positive and negative terminals; DIR + and DIR- are the positive and negative directions.
*Frequency of measurement can amount PUL and common cathode terminal (GND) two ports.
Description
Specification:
Power supply voltage: 15-160V / 5-12V
Frequency: High: 5.8KHZ-127KHZ, Mid: 590HZ-15.8KHZ, Low: 82HZ-2.3KHZ
Size: Approx. 73 x 51 x 37mm / 2.87 x 2 x 1.45inch
Weight: 50g
Quantity: 1pc
Package List:
1 x PWM Generator
Note:
If you use to start or stop the function, ENA controller enable terminal must be connected to common cathode or common anode drive.
