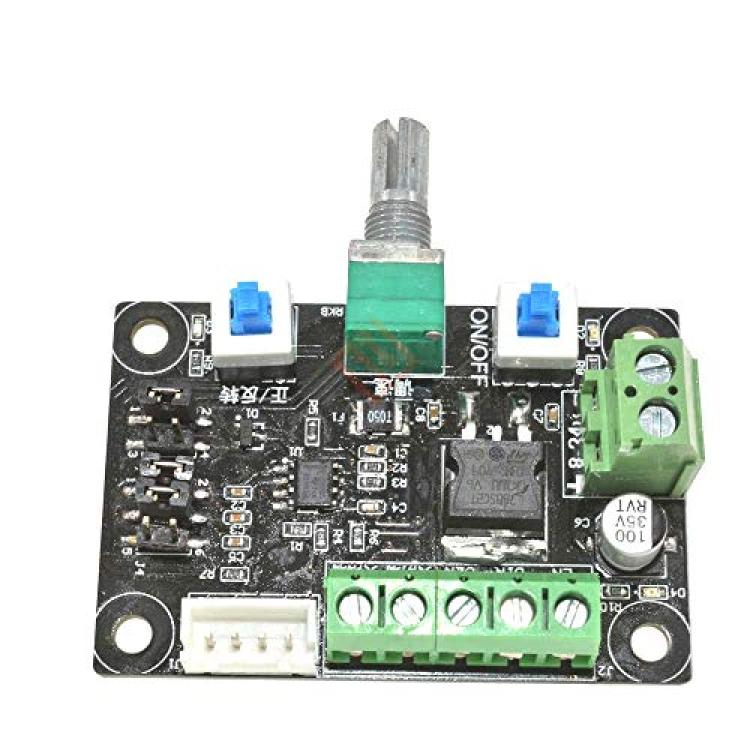

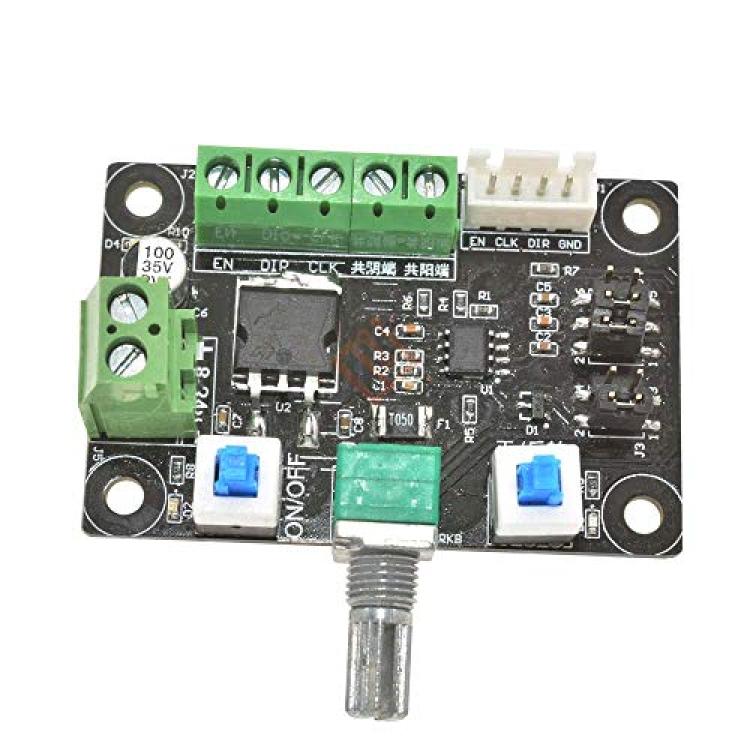

Motor Pulse Signal Generator for Stepper Motor Driver Controller Speed Regulator
Availability: Pre-Order, Inquiry Price
About this product
*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.
*Test before shipping.
*USA and Canada Estimated Delivery Time: 6-24 days(trackable),----- We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $150, we will use Expedited Shipping service for free.
*We make every effort to provide customers with satisfactory service.any question,please feel free to contact me.
*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.
Description
Feature:
1, this module is a pulse generation module, supply the control signal to stepper driver.
To control the stepper motor, it must be equipped with a drive.
2, this simple controller + stepper motor + stepper motor + DC power supply can be composed of a simple set of control platform.
3, the controller has high 5.4k-160khz, middle 540-16.6khz, low 80-2.4khz total of 3 kinds of low frequency signal can be used to select the jumper.
4, can produce pulse signal, can also produce PWM signal, can choose the jumper.
5, the frequency of measurement: PUL and common cathode end.
Different stepper driver may mark different name
EN=ENA=FREE Enable
PUL=PULS=CLK Pulse
DIR=CW=CWW Direction
Common anode Connection method (B)
EN+ PUL+ DIR+ connect together to com+.
EN- connect EN
PUL- connect CLK
DIR- connect DIR
Common cathode Connection method (B)
EN- PUL- DIR-
connect together to com-
.
EN+
connect
EN
PUL+
connect
CLK
DIR+
connect
DIR
Package Included:
1x Control Signal Generator Module
