Industrial Type DKC-1A Stepper Motor Controller Pulse Generator servo Potentiometer Speed

Industrial Type DKC-1A Stepper Motor Controller Pulse Generator servo Potentiometer Speed

Name: Industrial Type DKC-1A Stepper Motor Controller Pulse Generator servo Potentiometer Speed
SKU: MM27830
Availability: InStock

Product Code: MM27830
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*We are a professional supplier of integrated circuit products. Just search keywords in our store. I believe you can find the Product you need.

*Delivery time: 6-18 days by special line for USA , 8-30 days by regular post for Worldwide,If it is not received within the specified time, please contact us and we will refund you in full.

*If you need the product urgently, you can choose expedited service. We will use DHL to serve you. Delivery time: 3-7 days.

*any question,please feel free to contact me.I believe our sweet service will satisfy you.

*Please note that the products are only offered by the brand: DIYQuantum . Other sales people is not reliable.

Description

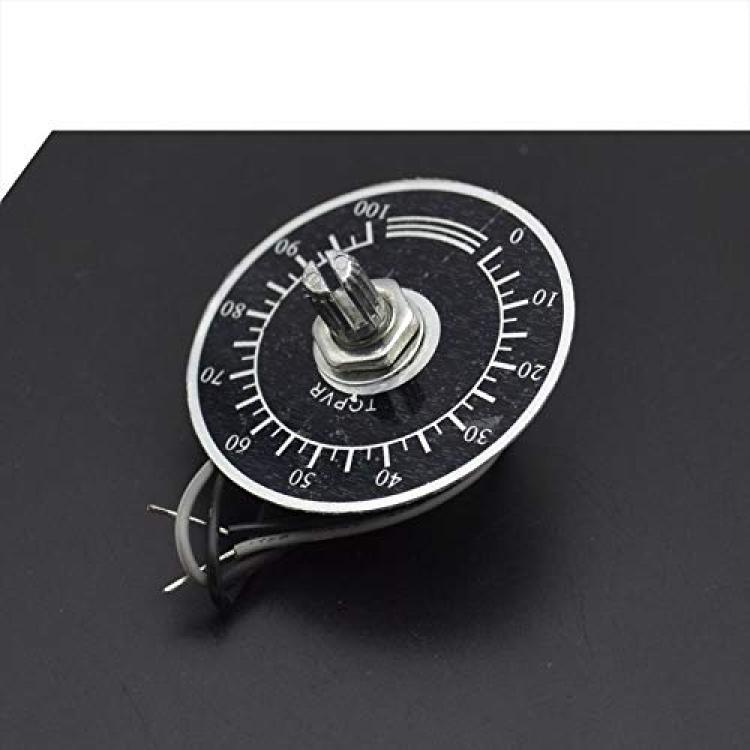

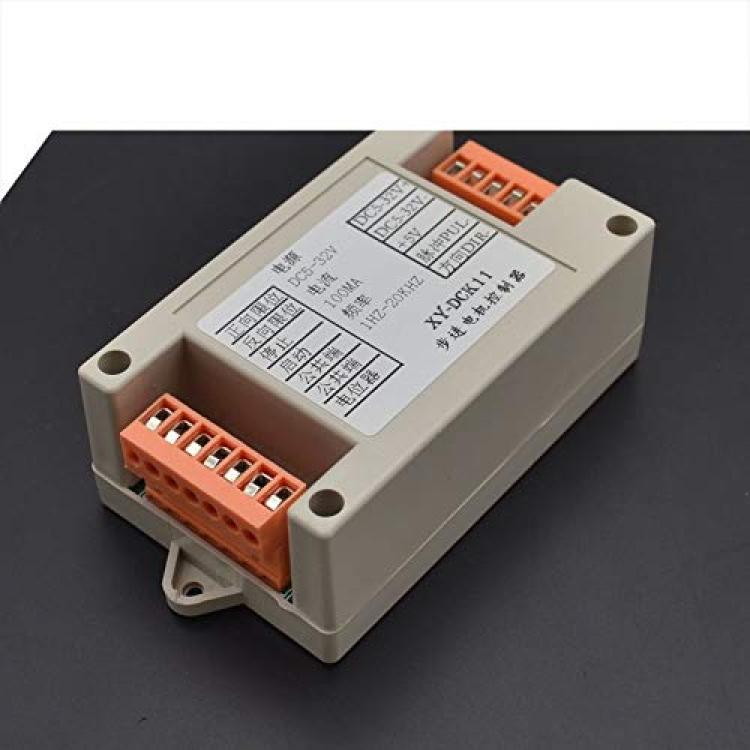

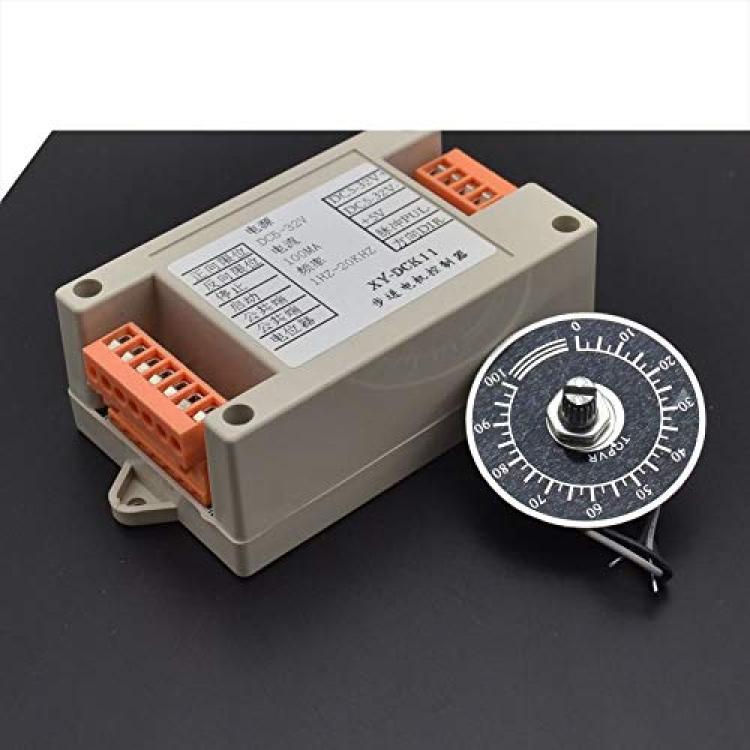

Industrial type DKC-1A stepper motor controller pulse generator servo potentiometer speedWide voltage input,5-32DC;With a power anti-reverse protection , overvoltage protection, overcurrent protection, complete protection of the safety controllerSignal input point for bottom -level input;OptimizedSType acceleration curveMaximum output frequency can be achieved20KAll opto-isolated inputs and outputsBoard planted potentiometer speed , external potentiometer speed automatic switchingA variety of functions , set up a simple , functional and practical , volume 5 * 8.2CMFunction modes are:1: Automatic shuttle mode2 : Single Entry Mode3 : Single-Shot mode4 : Jog mode
:( Automatic control applications a round-trip mode )1EquipmentAPointBRunning back and forth between points.After the device is powered , external trigger startOperation, equipment operation toAPoint Forward LimitAfter running the automatic reversalBPointAfter reversing limit ,Forward run again toAPoint , so run back and forth . Until the trigger to stop the motor stops running.Parameter settings:
1Set upSW1=OFF,SW2=OFF( Automatic shuttle mode )2. Onboard governorOr external potentiometer,Adjust the appropriate speed.
:( Control application two single -shot mode )1Equipment fromAPoint toBAfter stopping point . Again to stop the boot device from B to A points.After the device is powered , external trigger startRuns from the device toAPointDeparture , when the device is running toBPoint Forward LimitAfter the device stops running , if you start again from point B to reach the trigger deviceAPoint , the device stops. Start upA-\u003e B stop, start, B-\u003e A stop motion process . If the trigger to stop the motor running in the device to stop running immediately .Parameter settings:
1Set upSW1=OFF,SW2=ON( Single Shot mode )2. Onboard governorOr external potentiometer,Adjust the appropriate speed.
:( Control applications three single round trip mode ) 1Equipment fromAPoint toBA point after po

Tags: Stepper Motor Controller, DKC-1A, Pulse Generator, Servo Potentiometer, Speed Controller, Industrial Stepper Motor, DC Input, Opto-Isolated Inputs, Automatic Shuttle Mode, Single Shot Mode, Jog Mode, DIYQuantum, Motor Speed Control
