Electronic Generator Controller, Durable Dc20D Generator Controller Control Panel Automatic Control Module For Diesel Generator For Diesel Engine Or Generator
About this product

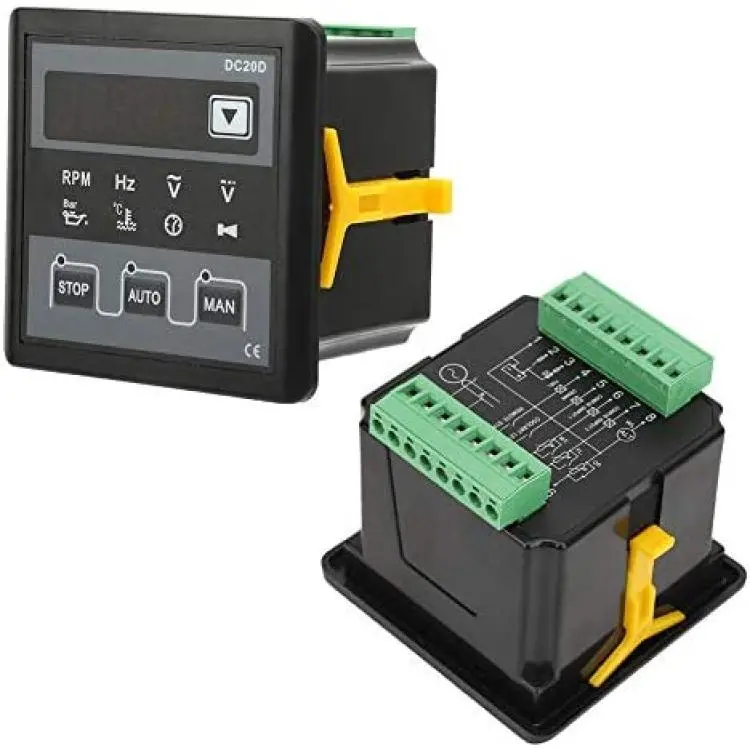

*GENERATOR CONTROLLER: DC20D is a module for diesel engines or generators. The status of the engine and generator can be easily checked
*MULTI-FUNCTION CONTROLLER: The electronic generator controller has the functions of automatic start and stop, protection and alarm indication. Front panel indicates DC power and operation
*DISPLAY A VARIETY OF PROMPTS: The generator controller can display over frequency, low frequency, over voltage, under voltage, low oil pressure, high temperature, low water level, low oil level, charging failure, overtime shutdown, emergency shutdown alarm system and low battery voltage in time hint
*APPLICABLE TO VARIOUS OCCASIONS: The output contact adopts relay, which can withstand large output current, and system parameters can be set according to the button to meet the application of different occasions
*WHAT YOU WILL GET: 1 Generator Controller + 24 Hours Customer Email Service + 100% Satisfaction Guarantee + Fast Delivery. If at any time you are not satisfied with our products, please feel free to contact us
Description
Main Features:
Micro-computer Control
Manual/Auto Start/Stop

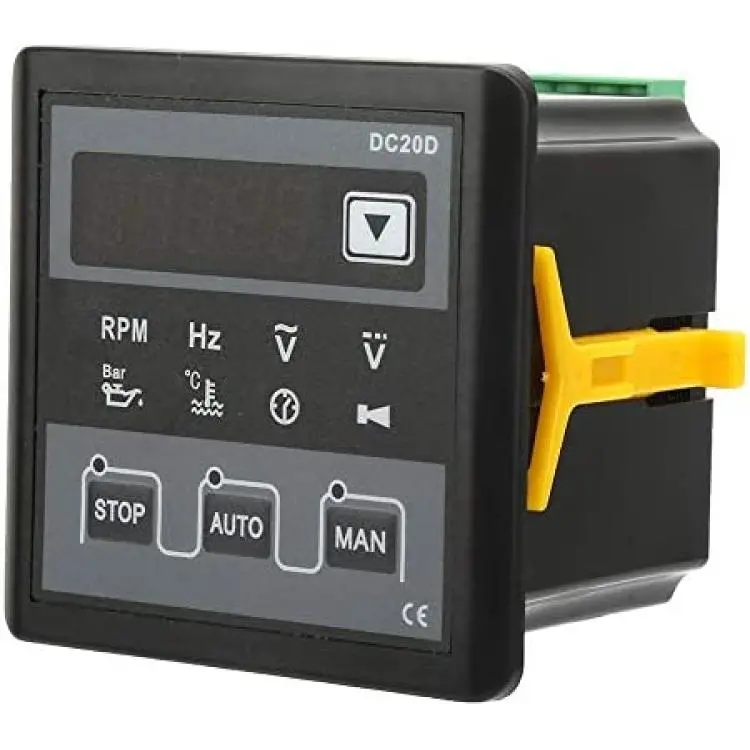

5 Units LED tube Display
LED and Fault Alarm Code Indication
Two Group of programmed Relay output
Application for various kinds of Engine by self-setting
Control Function:
Automatic control of the car
Start delay control
Local manual start/stop
Remote automatic start/stop
Automatically restart the motor from, the oil pressure switch back to the motor
Preheat control
Cold machine control
Parking/idle control
The parameter display:
Engine speed
Generator frequency
Generator AC voltage
Engine battery voltage
Engine oil pressure
Engine water temperature
Cumulative running time
Protection Function:
Lubricating oil pressure protection
Low cooling water level protection
Cooling water temperature protection
Generator overvoltage protection
Overclocking/overspeed protection
Generator set emergency stop
Engine downtime failed
Engine start failed
Low fuel level warning
Low battery voltage warning
Configuration method:
Configuration parameters via controller front panel buttons
Specification:
Condition: 100% Brand New
Item Type: Generator Controller
DC Supply: DC 8-36V
Power Consumption: MAX 3W
Measuring Frequency: 10-70Hz
Input voltage range: AC 20-276V

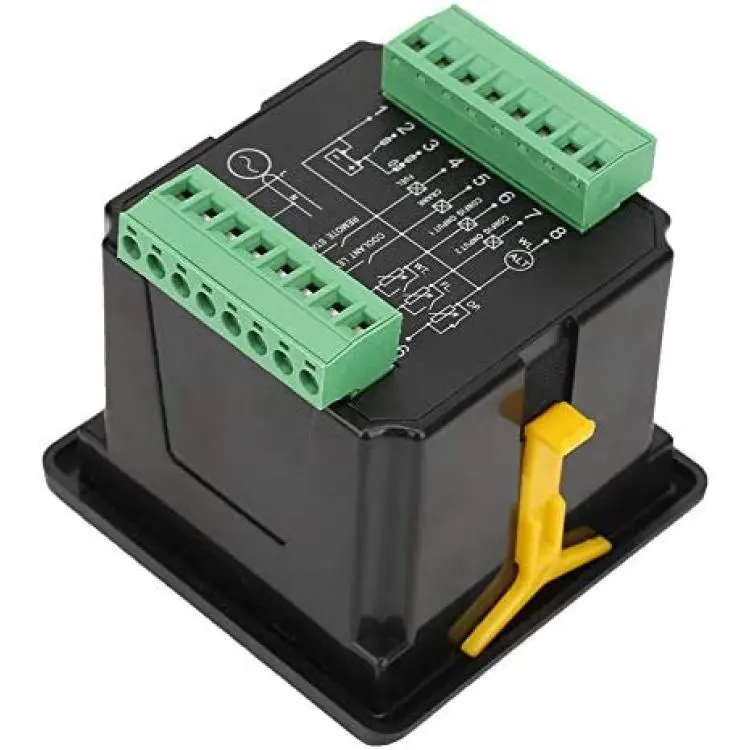

Relay Output:
Fuel Output: MAX 3.5A
Start Output: MAX 3.5A
Configurable relay output: MAX 3.5A
Excitation output: MAX 3.5A

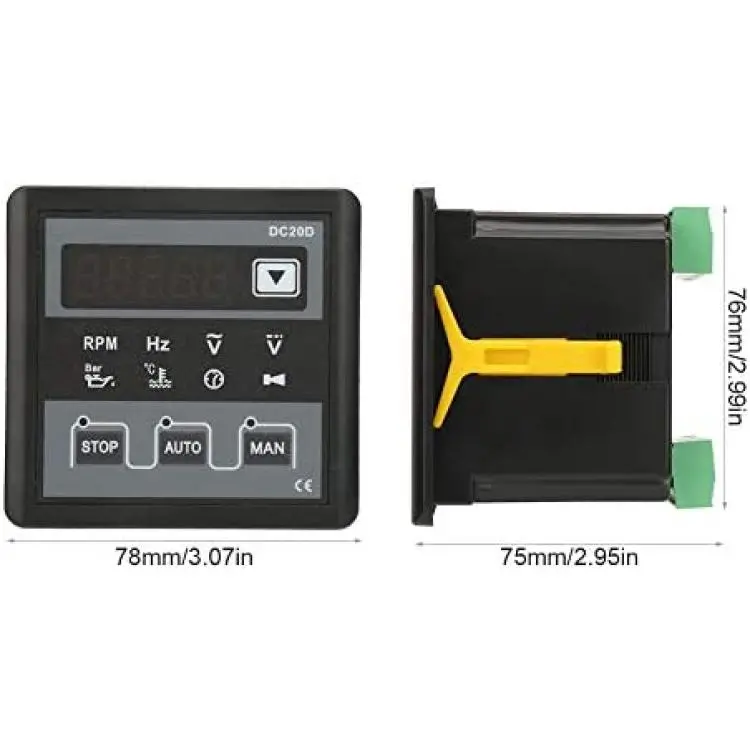

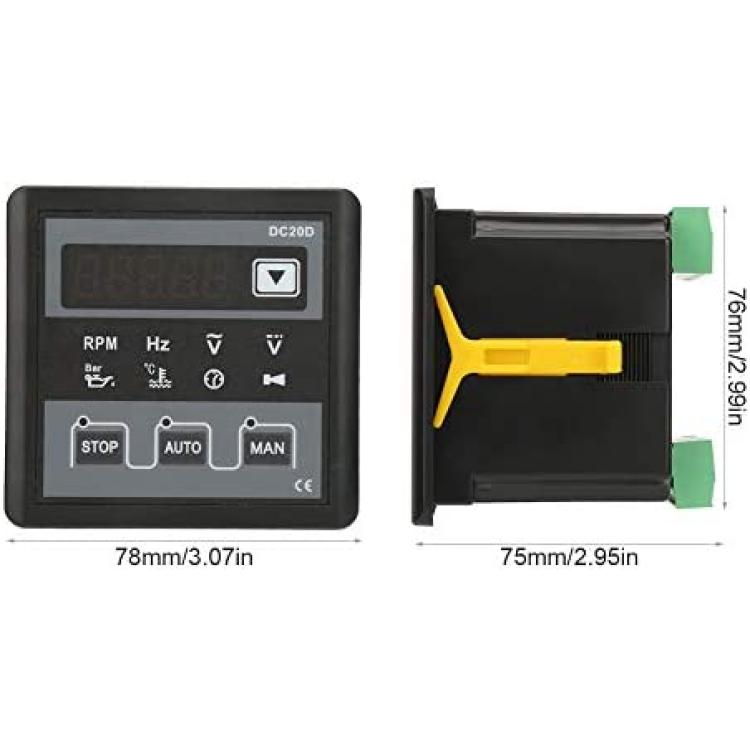

Size: Approx. 78mm * 75mm * 76mm / 3.07 * 2.95 * 2.99in
Hole Size: Approx. 67mm * 67mm / 2.6 * 2.6in
Operation Temperature :-30?-70?
Storage Condition:-40?-85?
Panel: Chinese/English Optional
Package List:
1 * Controller
