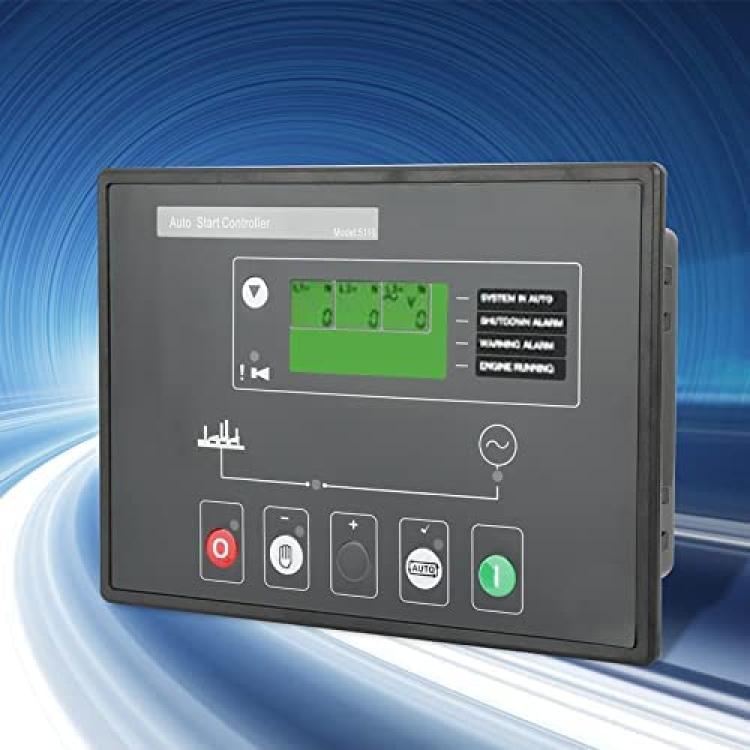

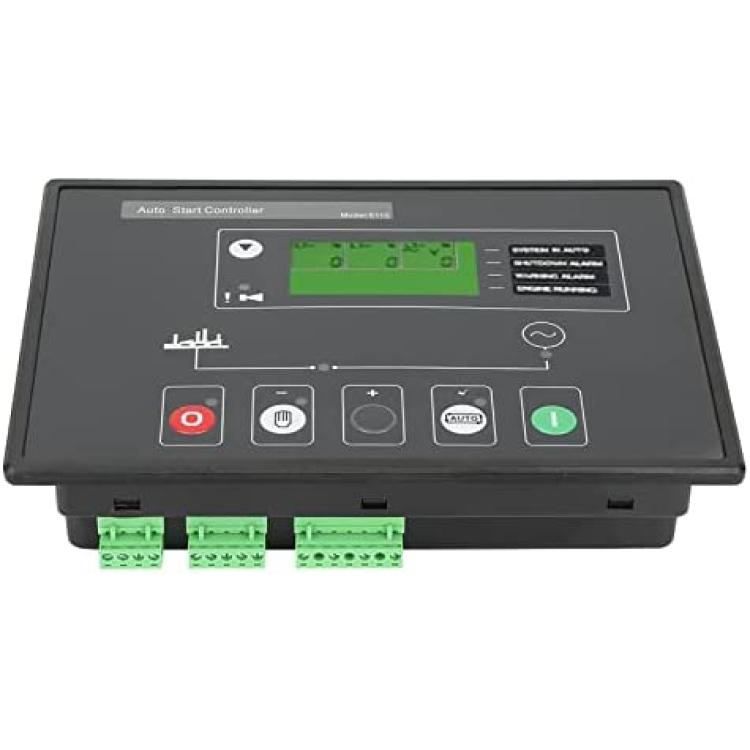

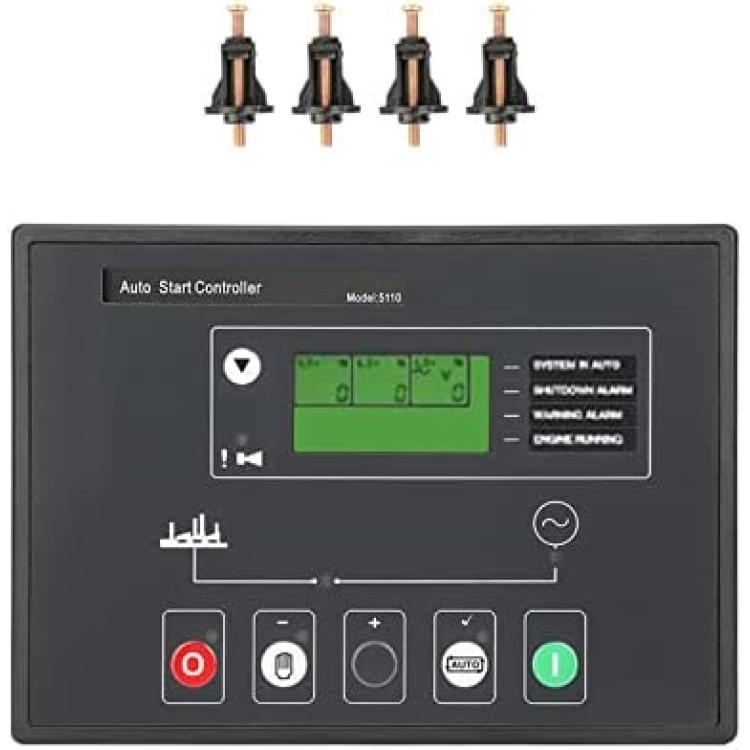

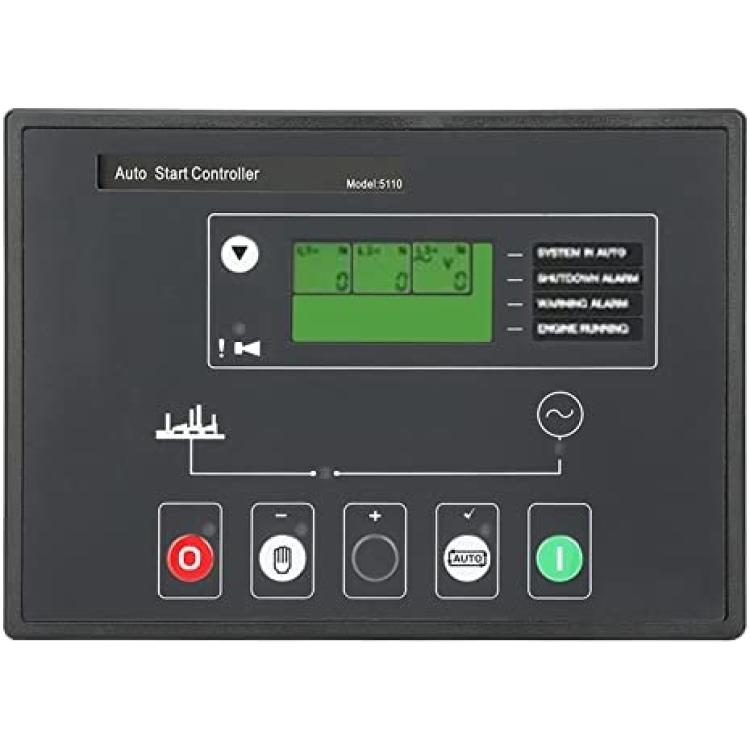

Generator Controller Module Panel, Separate Core DSE5110 Generator Electronic Controller Module Control Panel LCD Display
About this product
*✅【LCD Display】: The microprocessor with LCD display controls the automatic start-up module of the multi-function engine, which has different kinds of fail-over protection function and the state display composed of LED.
*✅【Displaying Parameters】: Its biggest characteristic is real-time displaying generators various parameters by the graph LCD: three-phase voltage, three-phase current, unit frequency, cooling water temperature, oil pressure, engine speed, battery voltage, accumulative running time, fault reason,etc.
*✅【Accurately Display Time】: Accurately display time and record time. Multiple start and stop cycles can be preset. Maintenance cycle reminder function can be preset.

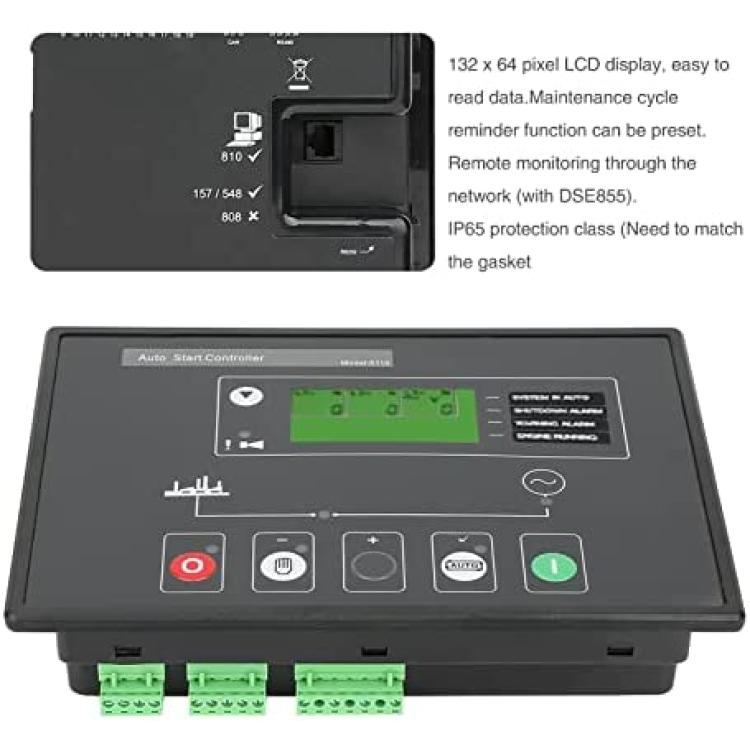

*✅【Equipment Protection】: All kinds of equipment protection conditions: generator overspeed/ underspeed, low oil pressure, high water temperature, start failure, emergency stop, speed signal loss, charging failure. 132 x 64 pixel LCD display, easy to read data. IP65 protection class (Need to match the gasket).

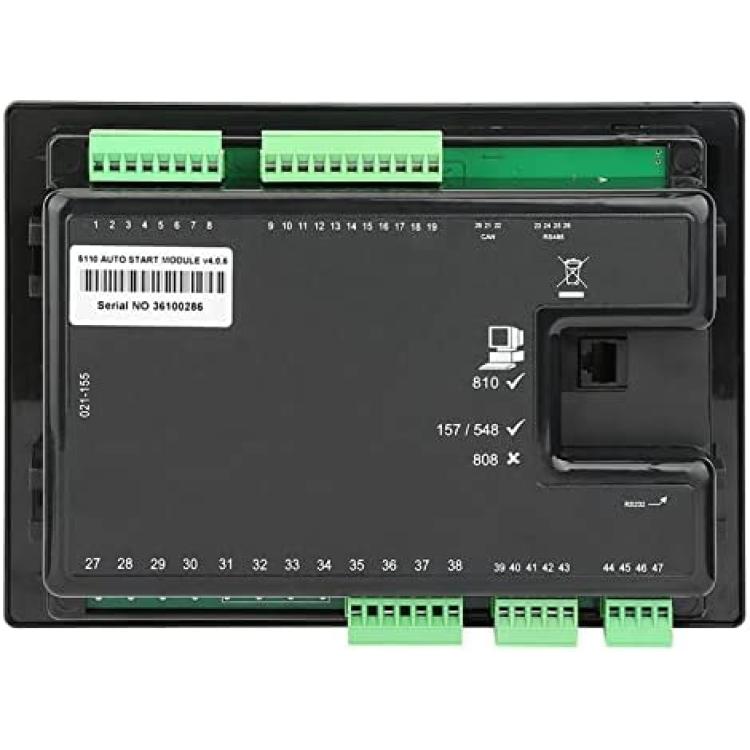

*✅【Function】: It can also set start time, frequency, remote start, auto-record stop fault and query, as well as system password lock function. Remote monitoring through the network (with DSE855). Compatible with intelligent building systems (BMS).
Description
Specification:
Material: Plastic
Weight: 837g/29.5oz Â
Model: DSE5110Â
Power supply: DC 8~35V continuous
Start relay output:16AmpDC system DC voltage
Fuel relay output: 16Amp DC system DC voltage
Auxiliary relay output: 5Amp DC system DC voltage
Operating temperature range: -30 ~ +70C
Charging failure/excitation range: 0V~35V
Maximum operating current: 425(12V); 215MA (24V)
Starting voltage drop: when the voltage provided before starting is not less than 10V and the voltage recovery voltage reaches 5V, the control system can be ensured to maintain normal after 50ms of 0V voltage. There is no need to add a built-in battery.
DSE 5110 controller display parameters:
Generator phase voltage L1-N, L2-N, L3-N;
Generator line voltage L1-L2, L2-L3, L3-L1;
Generator current L1, L2, L3;
Generator frequency Hz;
Generator speed RPM;
Engine Oil Pressure (PSI & Bar);
Engine water temperature (? & ° F);
Battery Voltage
Unit operating time;
DSE5110 controller alarm/ stop protection:
Underspeed/ overspeed, alarm/ stop;
Battery charging failure, alarm;
Emergency stop;stop;
Low oil pressure, alarm/ stop;
High water temperature, alarm/ stop;
Start failure, alarm;
Speed signal loss, stop;
