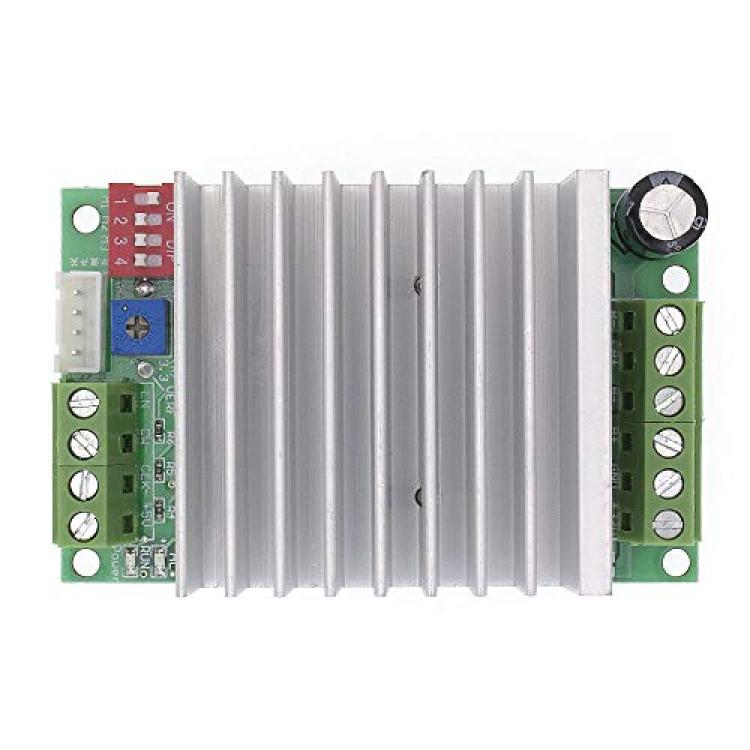

TB6600 4.5A CNC Single-Axis Stepper Motor Driver Board Controller
Availability: Pre-Order, Inquiry Price
About this product
*TB6600 4.5A CNC Single-Axis Stepper Motor Driver Board Controller
*Developed Countries Estimated Delivery Time: 7-17 days(trackable),Other countries Estimated delivery time : 8-30 days.----- We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $200, we will use Expedited Shipping service for free.
*If it is not delivered within the specified time, or if it is not satisfactory. You only need to send a refund request and we will refund you in full.
*We make every effort to provide customers with satisfactory service.any question,please feel free to contact me.
*TB6600 4.5A CNC Single-Axis Stepper Motor Driver Board Controller
Description
Descriptions:
1) Operating voltage DC 10V-45V. DC32V switching power supply is recommended.
2) high-speed optical coupling 6N137, ensure high speed without losing step.
3) new high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560.
4) Rated maximum output reached: ± 4.5A.
5) for 4.2A 42,57,86 within the two-phase / four-phase / four-wire / six-wire stepper motor.
6) Automatic half current function.
7) Subdivision: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments.

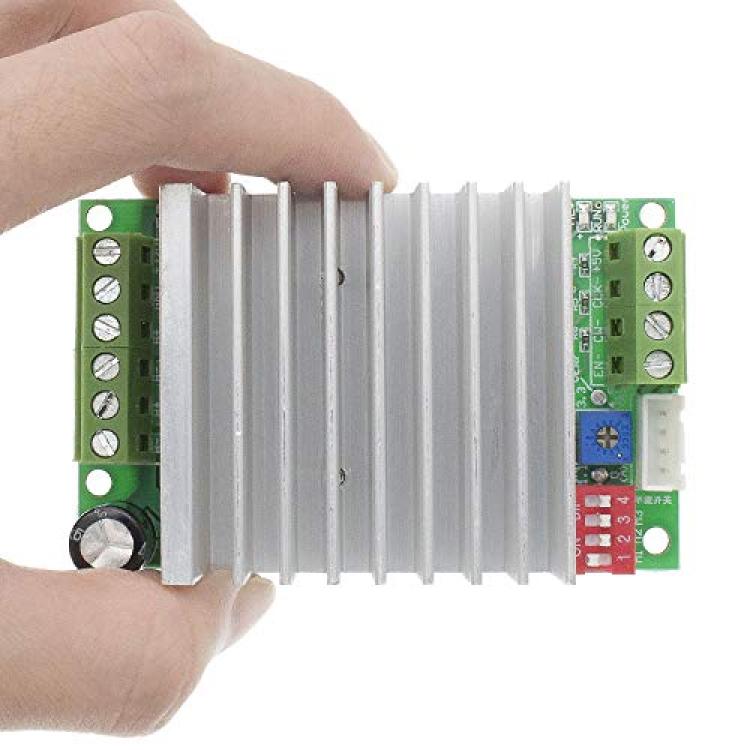

8) Volume: Width Length 82 * 50 * high 35 (MM)
Features:
1, the output current is infinitely adjustable to meet your various application requirements.
2, automatic half current function. And a semi-automatic flow switch, easy to use.
3, the use of high-speed optical coupling 6N137 ensure high-speed without losing step.

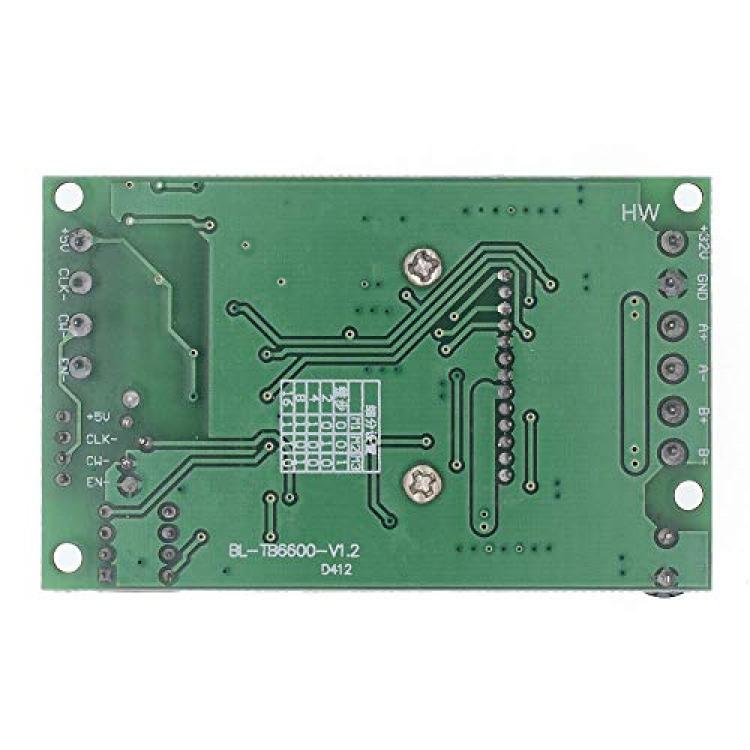

4, printed on the back panel are subdivided setup instructions.

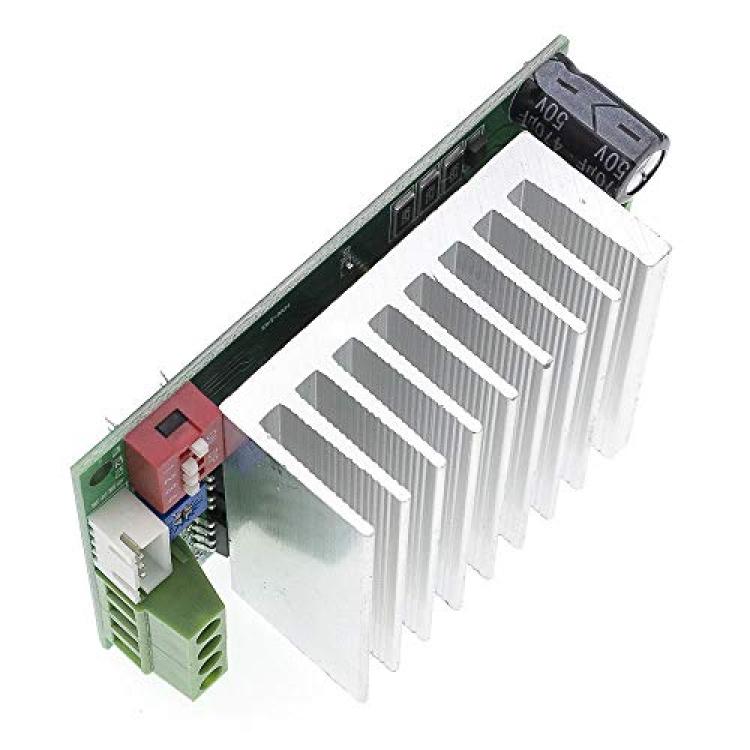

5, used to increase the heat sink, good heat dissipation.
6, output short-circuit protection, the use of mind.
7, using common anode input mode, there are two input terminals, wiring more convenient.
