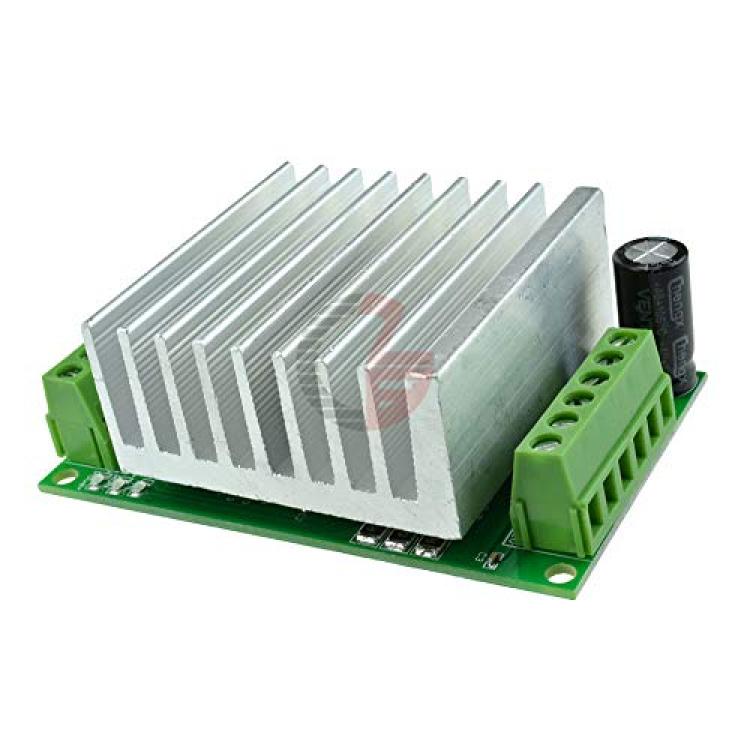

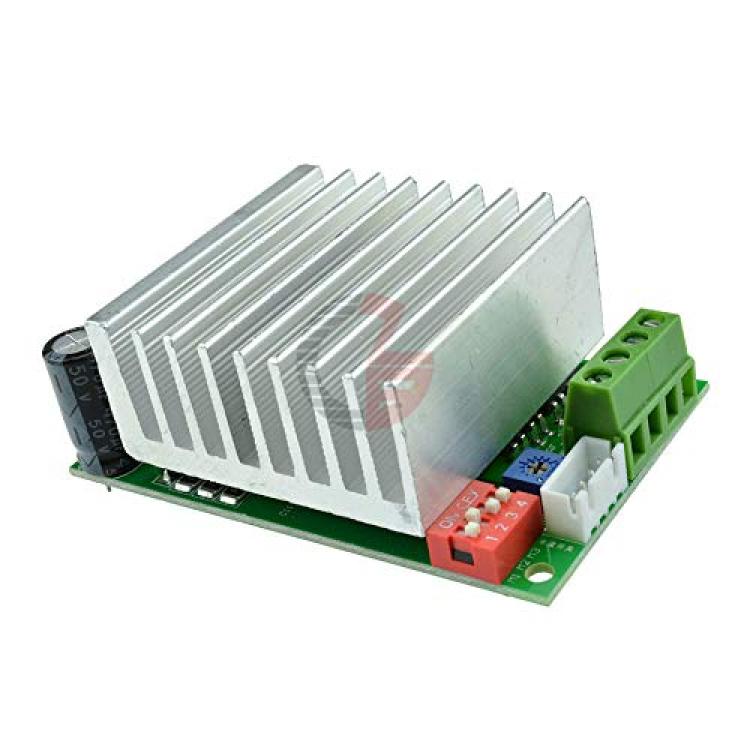

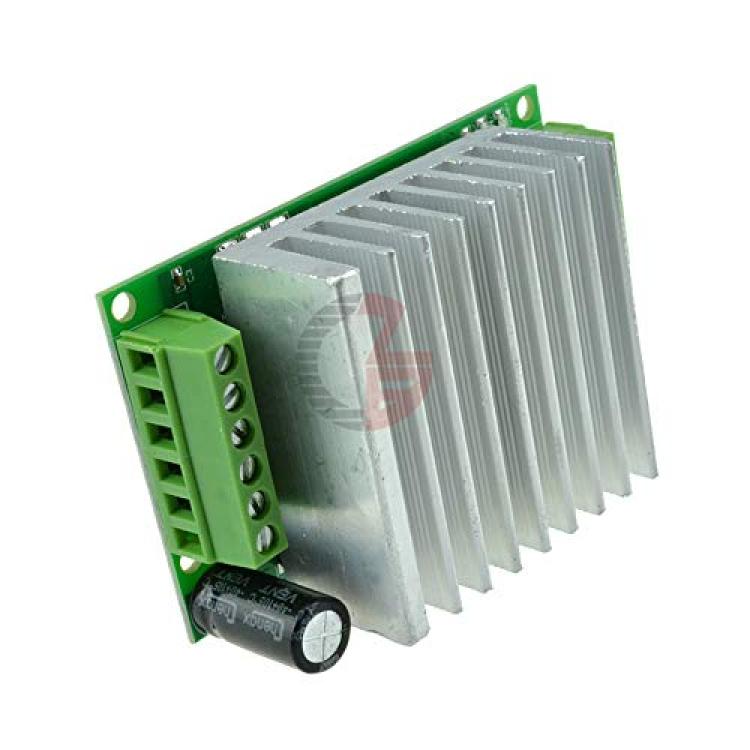

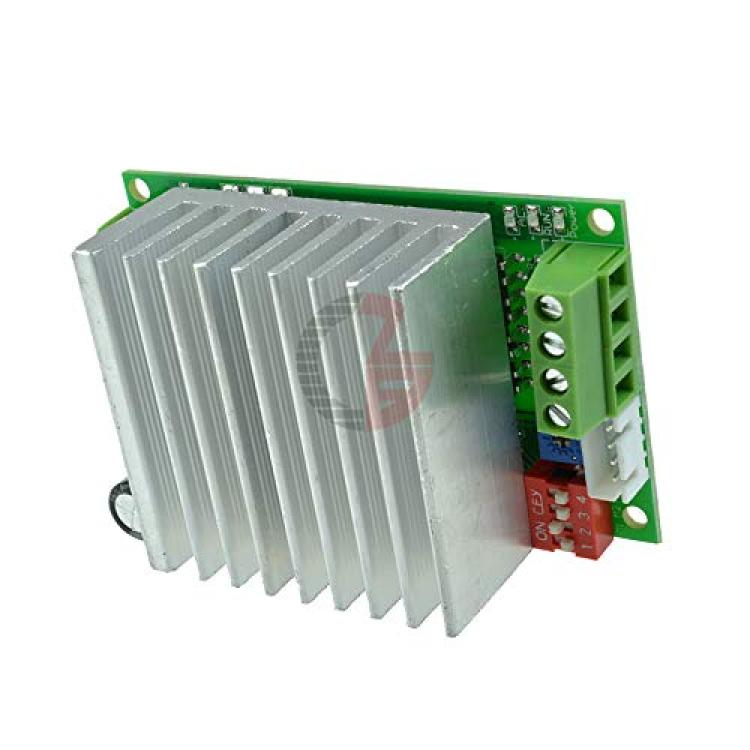

TB6600 DC 10V-45V 4.5A CNC Single-Axis Stepper Motor Driver Controller Board 6N137 High Speed Optical Coupler Automatic Current
Availability: Pre-Order, Inquiry Price
About this product
*TB6600 DC 10V-45V 4.5A CNC Single-Axis Stepper Motor Driver Controller Board 6N137 High Speed Optical Coupler Automatic Current
*Developed country Estimated Delivery Time: 7-18 days by Special line. 10-30 days for other country..We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $200, we will use Expedited Shipping service for free.
*TB6600 DC 10V-45V 4.5A CNC Single-Axis Stepper Motor Driver Controller Board 6N137 High Speed Optical Coupler Automatic Current
*Developed country Estimated Delivery Time: 7-18 days by Special line. 10-30 days for other country..We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $200, we will use Expedited Shipping service for free.
*Date First Available : October 21, 2019
Description
Features:
1. the output current is infinitely adjustable to meet your various application requirements.
2. automatic half current function. And a semi-automatic flow switch. easy to use.
3. the use of high-speed optical coupling 6N137 ensure high-speed without losing step.

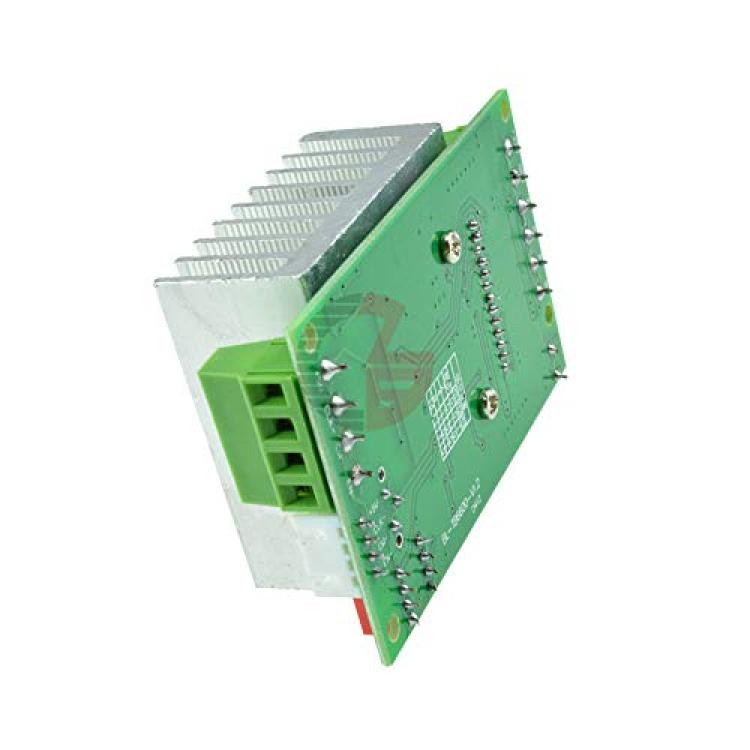

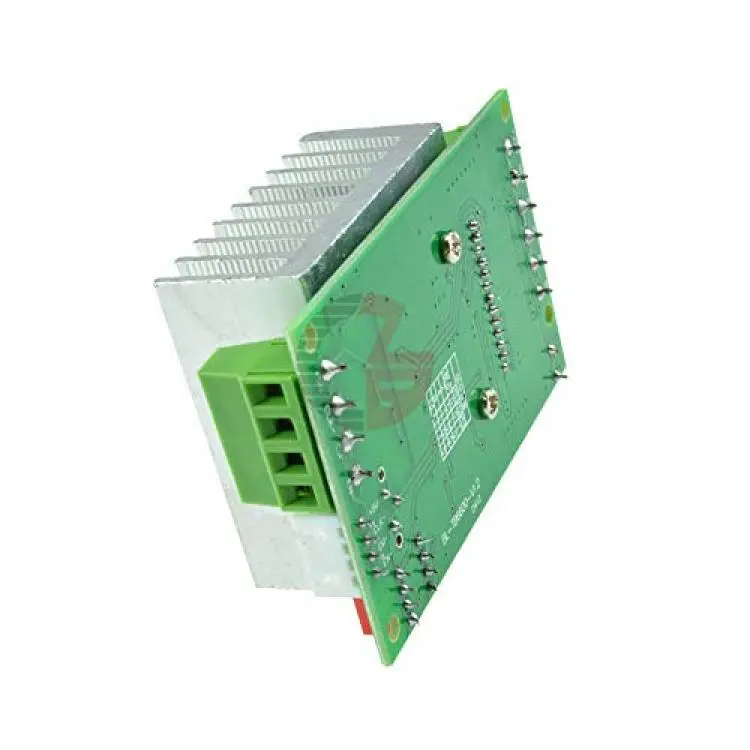

4. printed on the back panel are subdivided setup instructions.
5. used to increase the heat sink. good heat dissipation.
6. output short-circuit protection. the use of mind.
7. using common anode input mode. there are two input terminals. wiring more convenient.
Specifications:
1. Operating voltage DC 10V-45V. DC32V switching power supply is recommended.
2. high-speed optical coupling 6N137. ensure high speed without losing step.
3. new high current. high voltage TB6600HG new original chip. there are low-pressure shut-off. overheating parking and over-current protection circuit. short-circuit protection and increased compared to TB6560.
4. Rated maximum output reached: ± 4.5A.
5. for 4.2A 42,57,86 within the two-phase / four-phase / four-wire / six-wire stepper motor.
6. Automatic half current function.
7. Subdivision: full step. half step. 1/4-step. step 1/8. 1/16-step. up to 16 segments.
8. Volume: Width Length 82 * 50 * high 35 (MM)
Package Included:
1 x TB6600 CNC Single-axis Stepper Motor Driver Board
