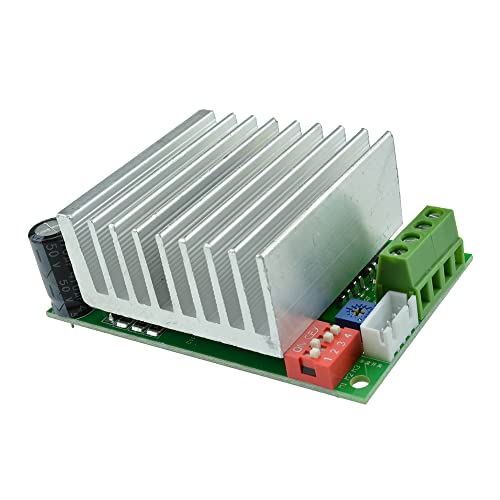

CUGUU 1pc TB6600 4.5A CNC Single-Axis Stepper Motor Driver Board Controller
Availability: Pre-Order, Inquiry Price
About this product
*the output current is infinitely adjustable to meet your various application requirements.
*automatic half current function. And a semi-automatic flow switch, easy to use.
*the use of high-speed optical coupling 6N137 ensure high-speed without losing step.
*printed on the back panel are subdivided setup instructions.
*Welcome to our store, we have a full range of products, if you do not find the product you want, you can contact our customer service, we will provide you with convenience and will serve you wholeheartedly. Reminder: We will give you free postage if you purchase more than five dollars in our store, welcome to consult.
Description
1) Operating voltage DC 10V-45V. DC32V switching power supply is recommended.
2) high-speed optical coupling 6N137, ensure high speed without losing step.
3) new high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560.
4) Rated maximum output reached: ± 4.5A.
5) for 4.2A 42,57,86 within the two-phase / four-phase / four-wire / six-wire stepper motor.
6) Automatic half current function.
7) Subdivision: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments.
8) Volume: Width Length 82 * 50 * high 35 (MM)
Â
Â
Product Features:
1, used to increase the heat sink, good heat dissipation.
2, output short-circuit protection, the use of mind.
3, using common anode input mode, there are two input terminals, wiring more convenient.
Â
Package Included:
1 x TB6600 4.5A CNC Single-axis Stepper Motor Driver Board Controller
