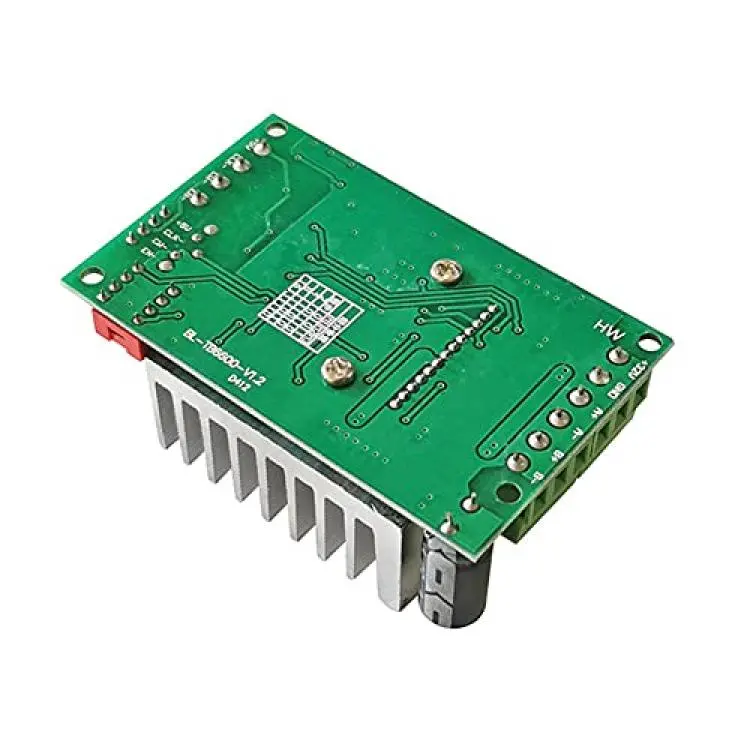

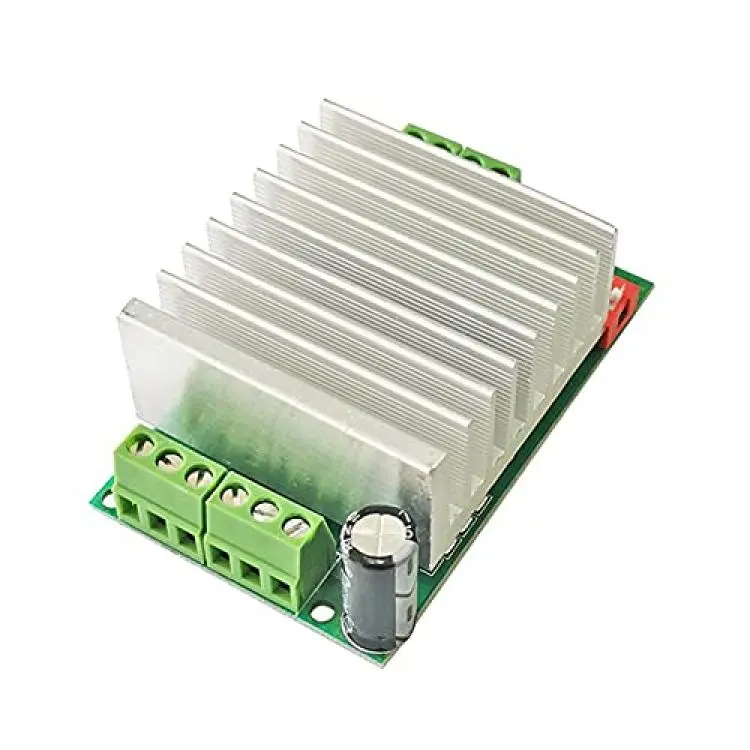

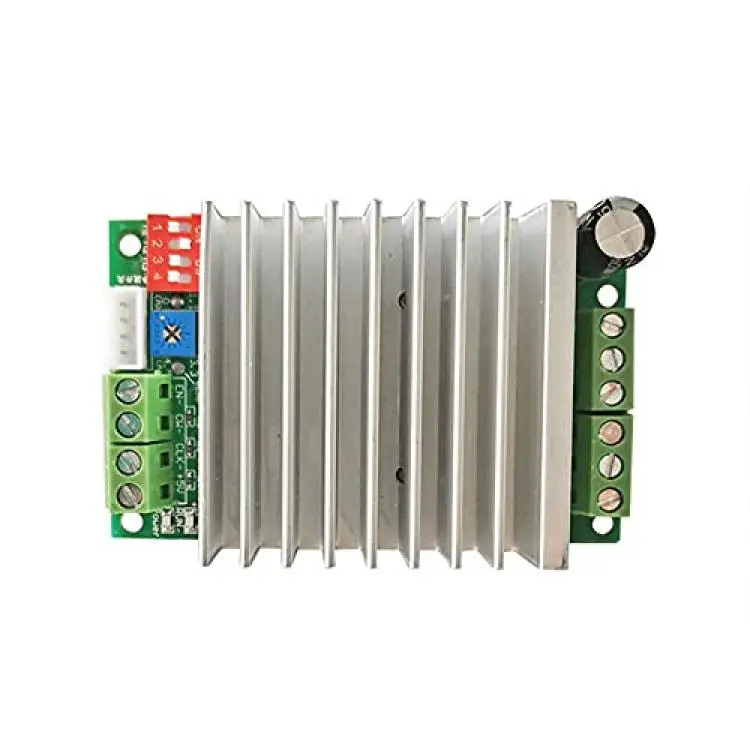

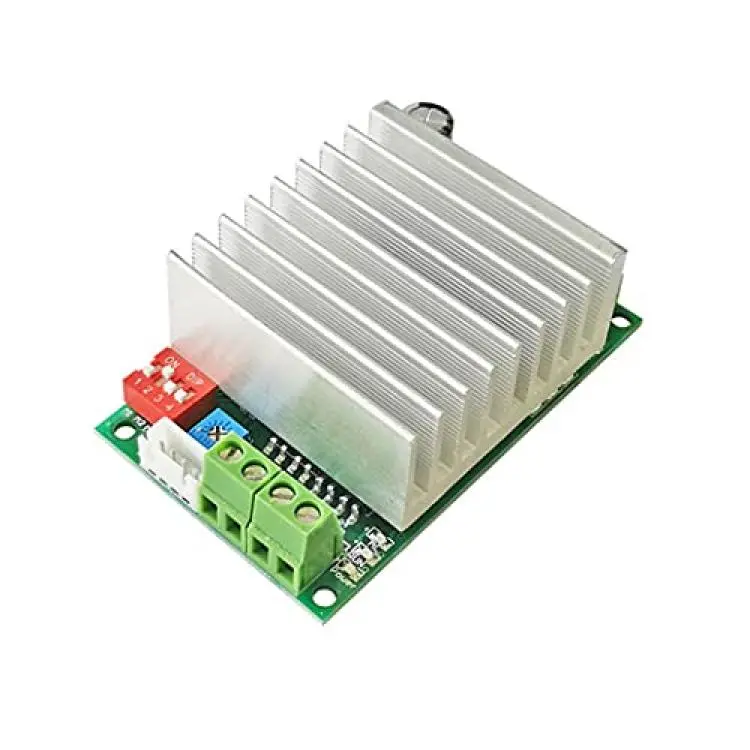

TB6600 Stepper Motor Driver 4.5A Single Stepper Motor Controller Driver Module Stepper Motor Driver Board

Parameter
The working voltage is DC 10V-45V. It is recommended to use switching power supply DC32V for power supply.
The 6N137 high-speed optical lotus is used to ensure high speed without losing step.
It adopts Toshiba's new high-current, high-voltage TB6600HG brand new original chip, which has low-voltage shutdown, overheating shutdown and over-current protection circuits, and adds short-circuit protection compared to TB6560.
The rated maximum output reaches: ±4.5A.
Suitable for 42, 57, 86 two-phase/four-phase/four-wire/six-wire stepper motors within 4.2A.
Automatic half-flow function.
Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, maximum 16 subdivisions.
Volume: width 50*length 82*height 35 (MM)

Pin description
+32V, GND: positive and negative terminals of power supply
A+, A-: Motor Phase A
B+, B-: motor phase B
CLK-: pulse input
CW-: Direction input
EN-: enable input
