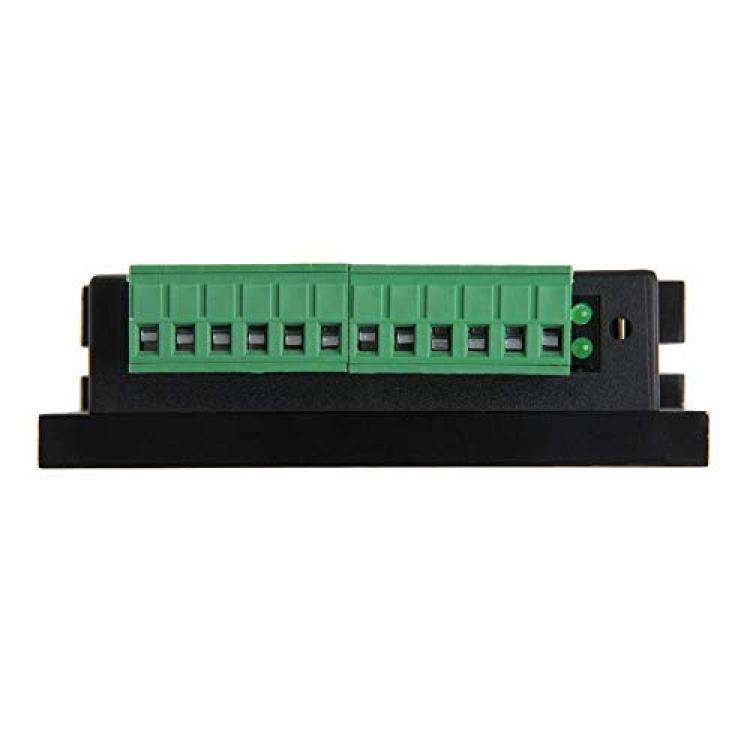

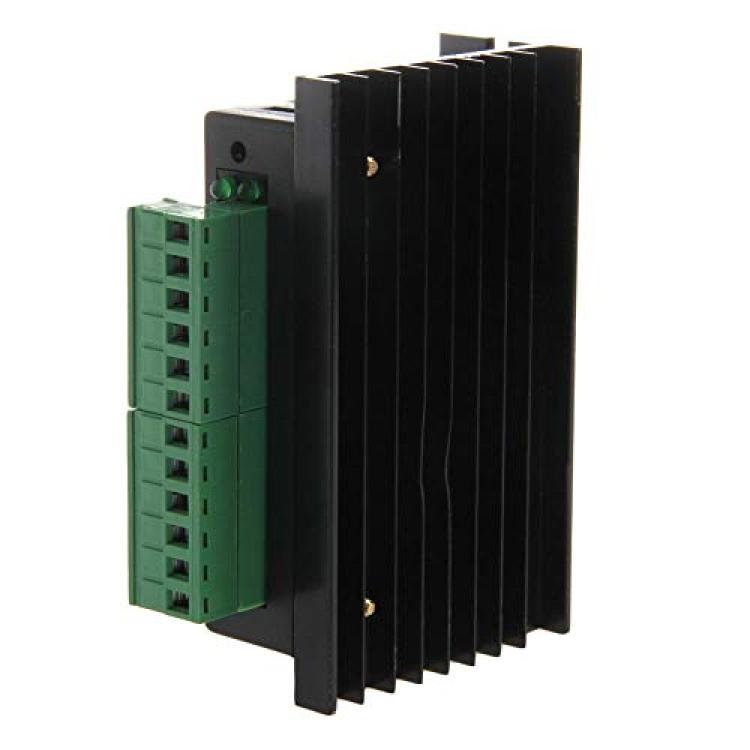

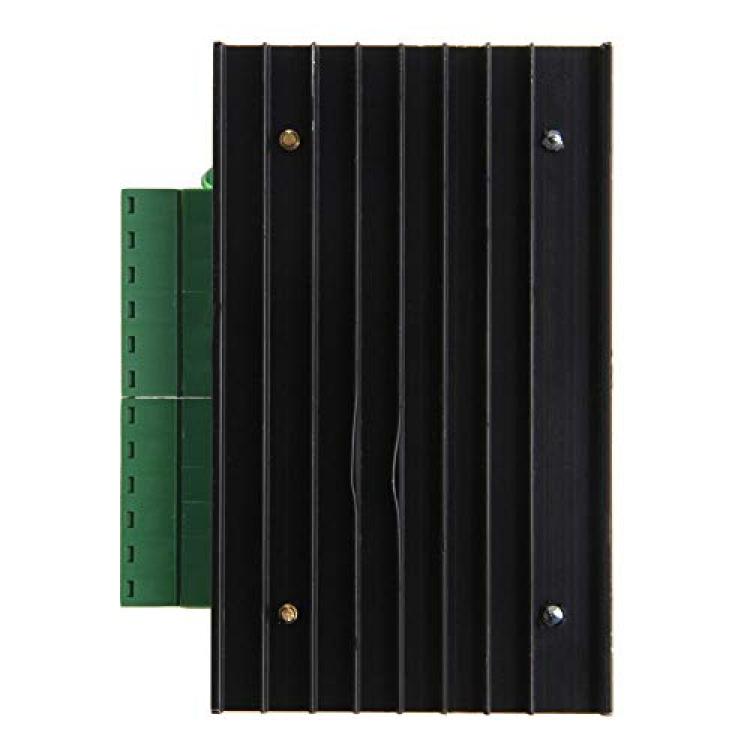

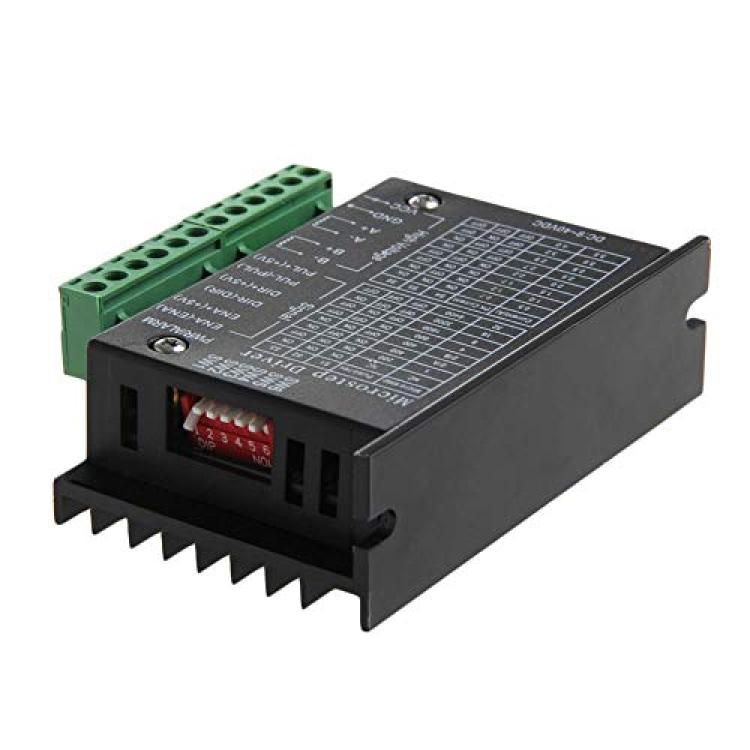

TB6600 Single Axis 4A Stepper Motor Driver Controller 9~42V Micro-Step CNC W329
Availability: Pre-Order, Inquiry Price
About this product
*The product quality is good.
*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.
*USA and Canada Estimated Delivery Time: 6-24 days(trackable),----- We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $150, we will use Expedited Shipping service for free.
*any question,please feel free to contact me.
*We make every effort to provide customers with satisfactory service.
Description
Material: Electrical components
Color: See pictures
42/57/86 TB6600 Stepper Motor 32-segment driver updated version 4.0A 42VDC for CNC milling machine
Specifications:
This unit is an upgraded version of TB6600, the breakdown of increase to 32 segments, for high targeting purposes. Applicable stepper motor: 42.57, 86 Phase type phase (6 wire 8 wire line)
Characteristics:
1, 9 V-42 V DC power supply;
2, H-bridge Bipolar constant-phase flow-driven;
3, the maximum output current of 4.0A eight optional;
4, up to 32 segments of six types of sub-modes available;
5, the input signal is high-speed optical insulation;
6, standard common anode single pulse interface;
7, HOLD function offline;
8, semi-closed chassis can accommodate the most demanding environment;
9, provide semi-automatic current locking function;
10, built-in thermal protection and overcurrent protection.
Size: 9.6*5.5*2.7cm/3.88"*2.17"*1.06"
Quantity: 1Pc
Note:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
1Pc x Stepper Motor Driver
