High Quanlity New CNC Single Axis TB6600 0-4.5A Two Phase Hybrid Stepper Motor-Driver Controller Board Factory outlets
Availability: In Stock
About this product
*The output current is infinitely adjustable to meet your various application needs.
*Automatic half-current function with an easy-to-use automatic half-current switch.
*Utilizes a 6N137 high-speed optocoupler to ensure high speed without missed steps.
*The back of the board has instructions for microstepping settings.

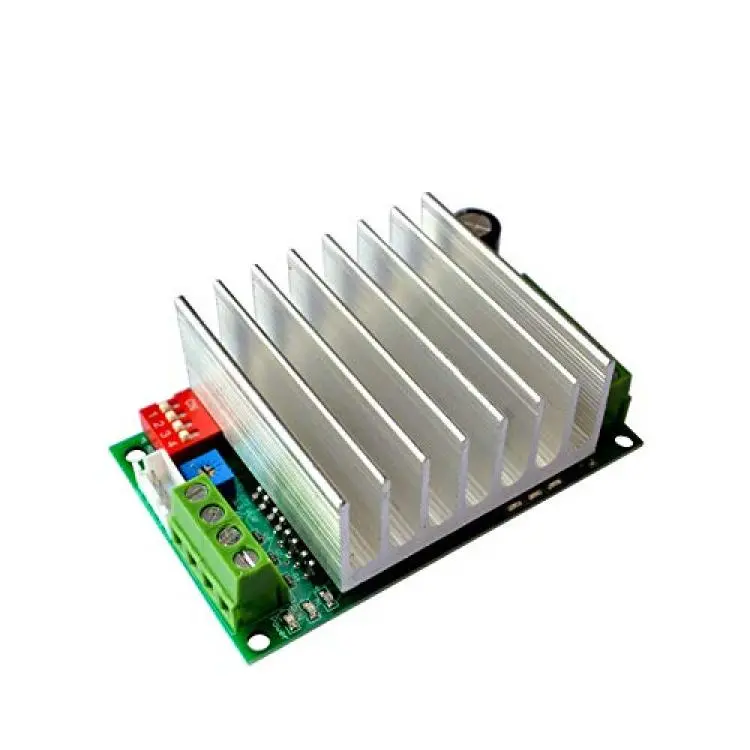

*Equipped with an enlarged heatsink for excellent heat dissipation.
*Features output short-circuit protection for worry-free use.
*Adopts a common anode input method with two input terminals for easier wiring.
Description
This is a high-quality, high-power, cost-effective driver!
With a large current of 4.5A and a high voltage of 45V, it features short circuit protection, providing superior performance!
1) Operating voltage: DC 10V-45V. It is recommended to use a DC 32V switching power supply.
2) Equipped with a 6N137 high-speed optocoupler to ensure high-speed operation without step loss.
3) Uses Toshiba's newly launched TB6600HG chip, which supports high current and high voltage. It includes low voltage shutdown, thermal shutdown, and overcurrent protection circuits, and has added short circuit protection compared to the TB6560.
4) Rated maximum output: ±4.5A.
5) Suitable for 42, 57, and 86 two-phase/four-phase/four-wire/six-wire stepper motors with a current rating up to 4.2A.
6) Automatic half-current function.
7) Microstepping: full step, half step, 1/4 step, 1/8 step, 1/16 step, up to 1/16 microstepping.

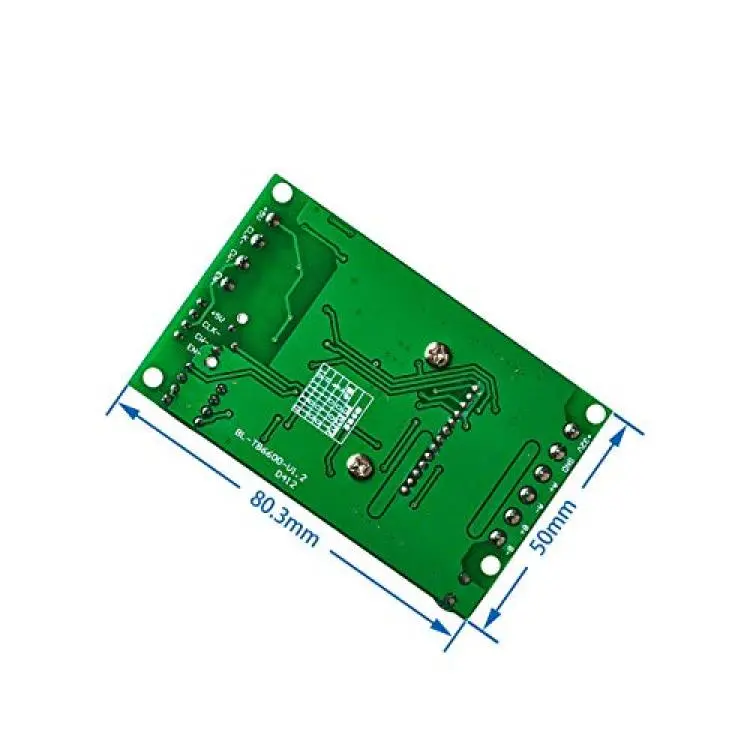

8) Dimensions: Width 50mm x Length 82mm x Height 35mm.
