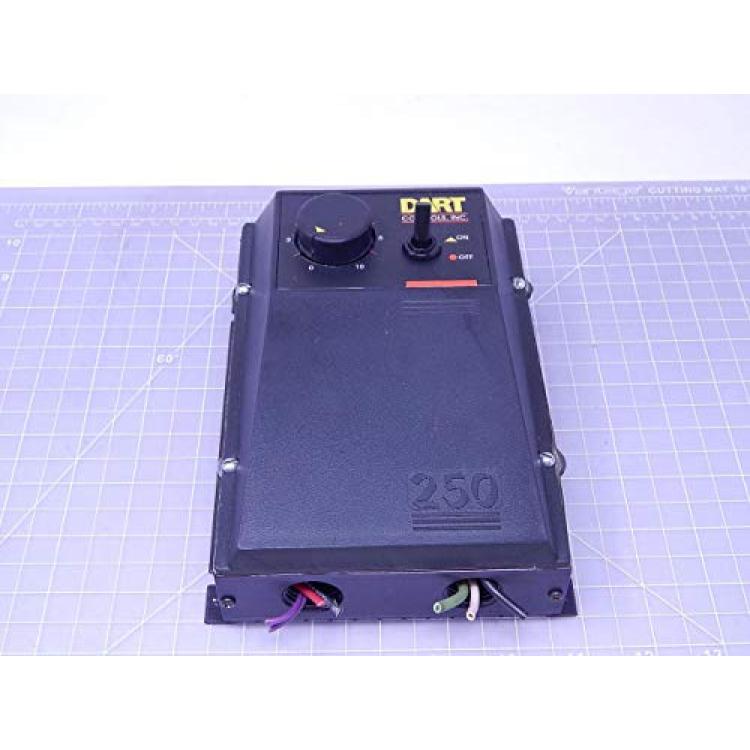

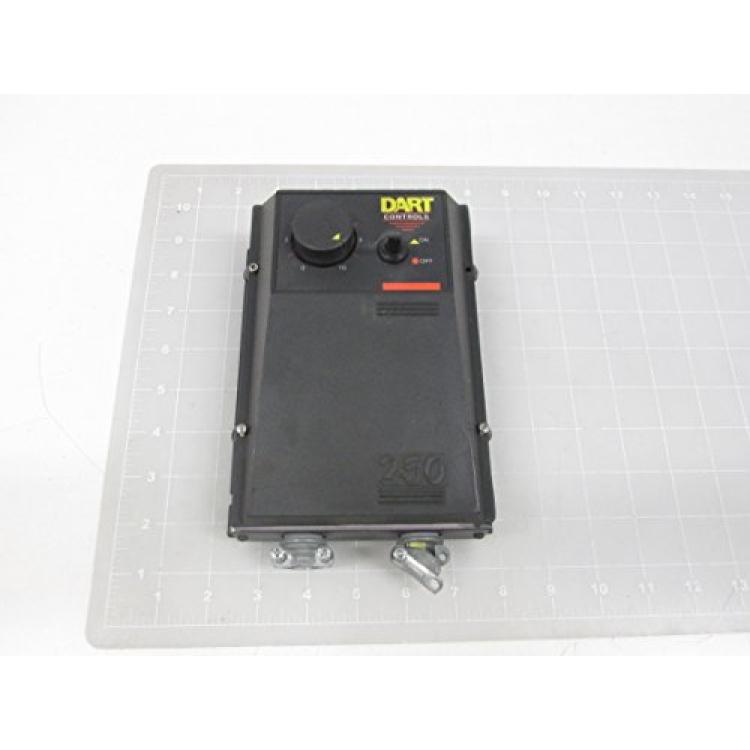

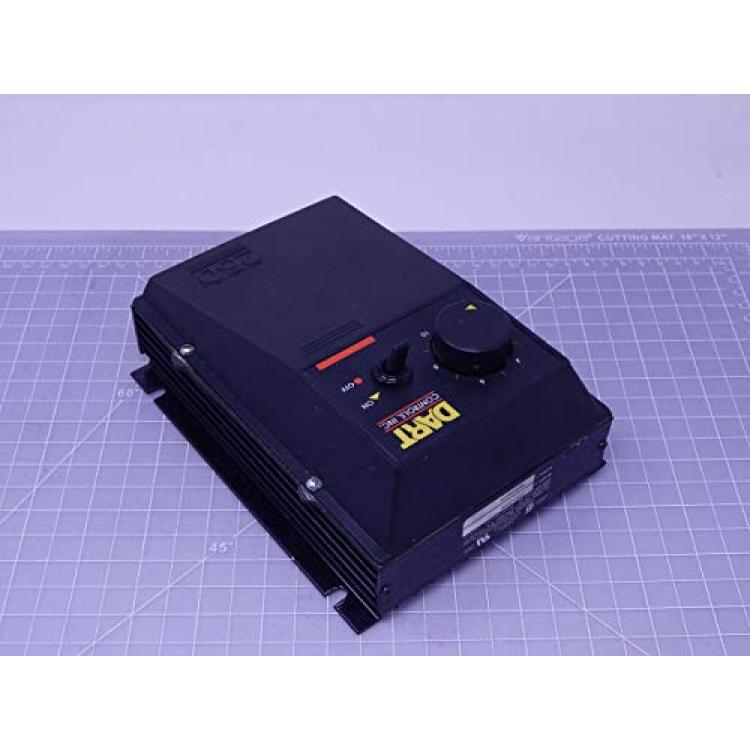

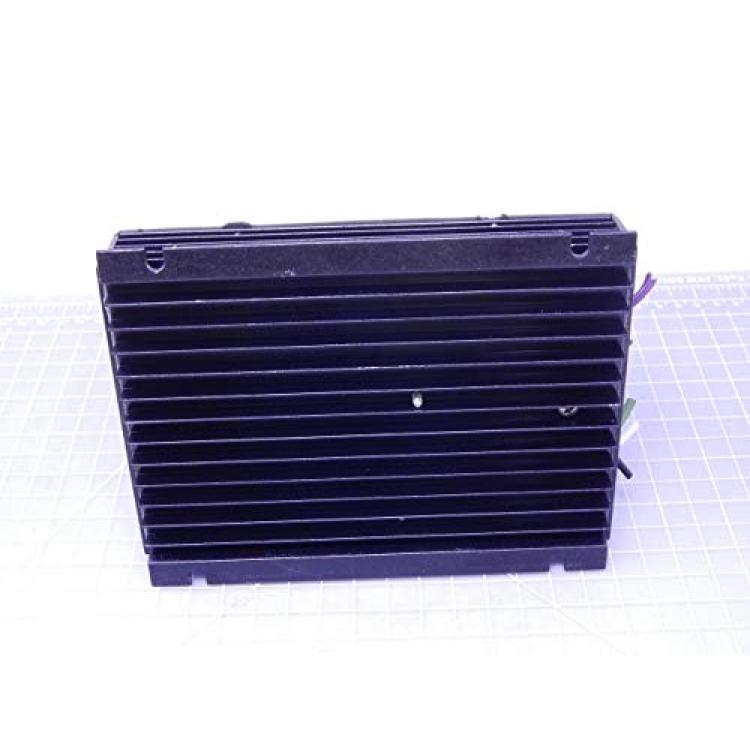

DART CONTROLS 253G-200E Dual Voltage Control, 250 Series DC Motor Speed Control, 1/8-2.0 HP, DC Drive, NEMA 4/12
Product Code: MM28389
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
About this product
*1/8 -2.0 HP
*250 SERIES DC MOTOR SPEED CONTROL
*DC DRIVE
*DUAL VOLTAGE CONTROL
*NEMA 4/12
Description
' DC Speed Control, Enclosure NEMA 4/12, Max. Amps 10, Voltage Output 0 to 90/180VDC, Speed Range 50:1, Rotation Reversable, External Switches CW/CCW, AC Input Voltage 120/240VAC, DC Speed Control SCR, HP @ Lower Volts 1/8 to 1, HP @ Higher Volts 1/4 to 2, Linear Acceleration Adjustable 0.5 to 8 sec., Current/Torque Limit Adjustable, Speed Regulation +/-1 Percent with Armature Voltage Feedback, +/-0.5 Percent with Tach Feedback, Shunt Wound Volts 100/200VDC, Accepts Tach Feedback Yes '
