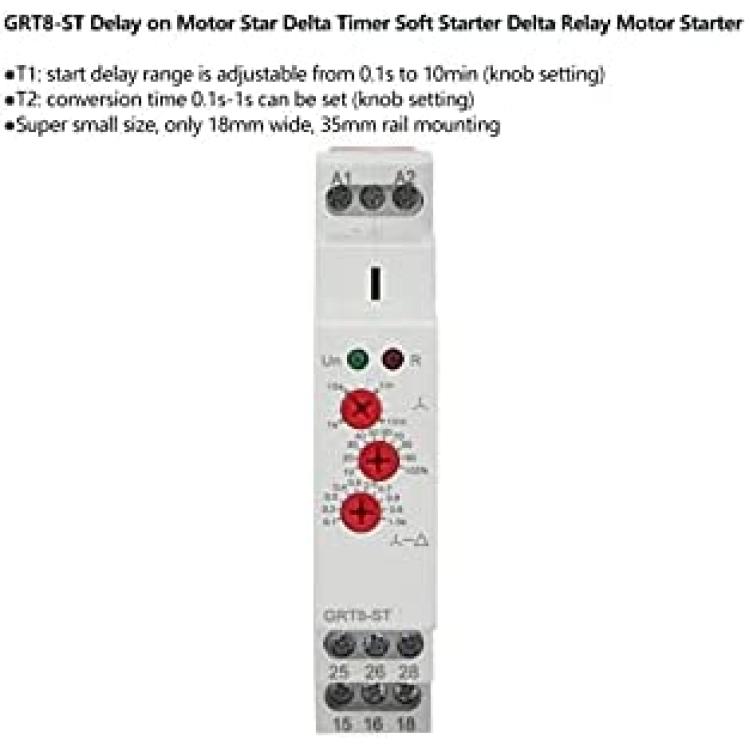

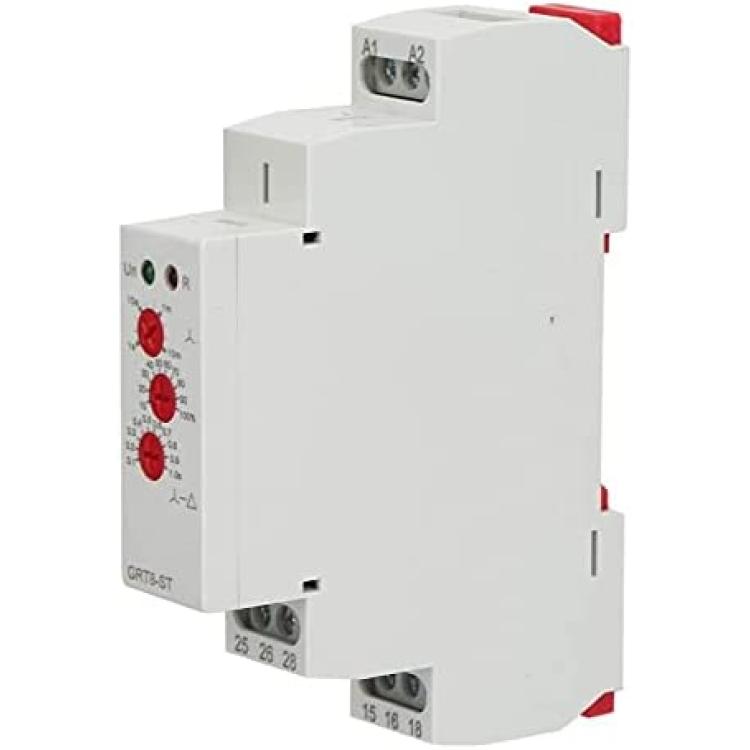

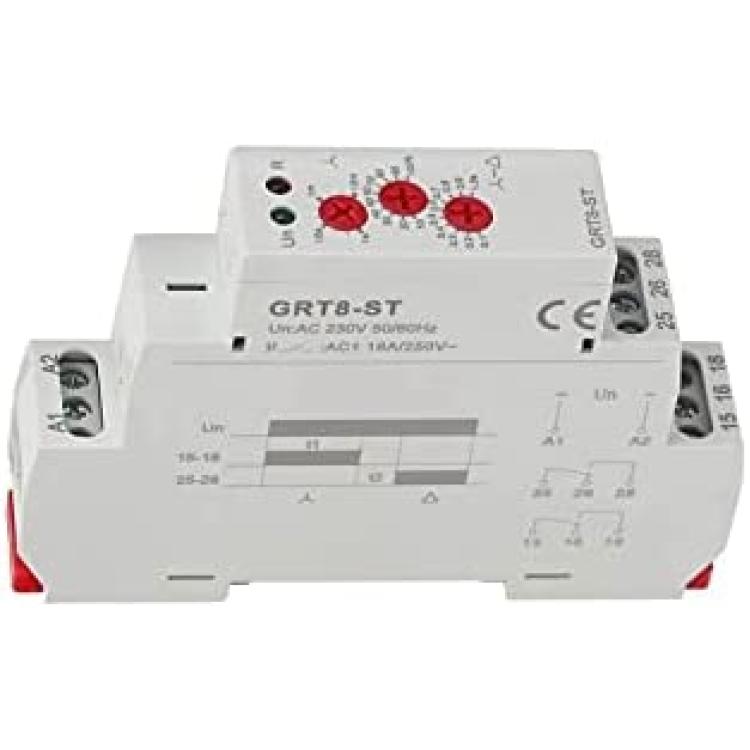

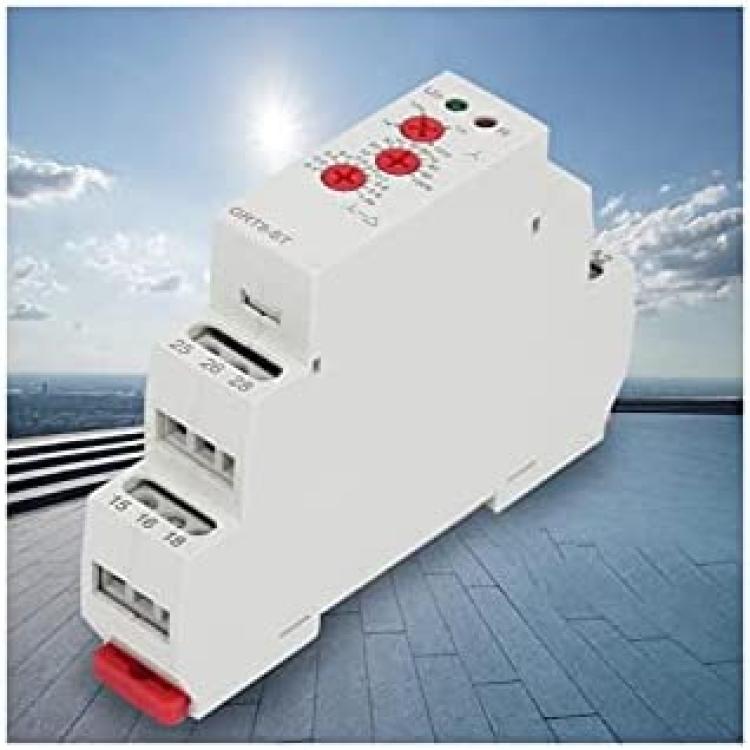

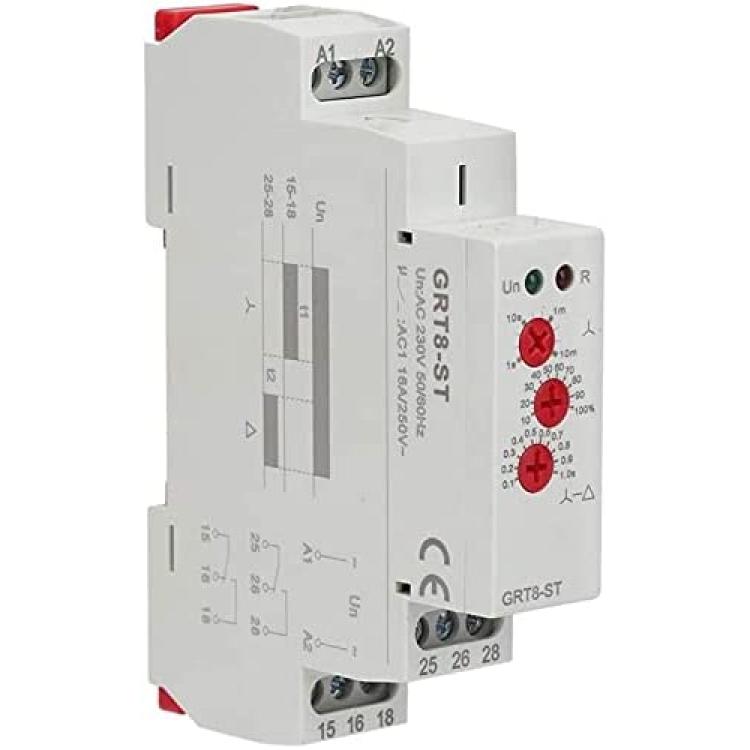

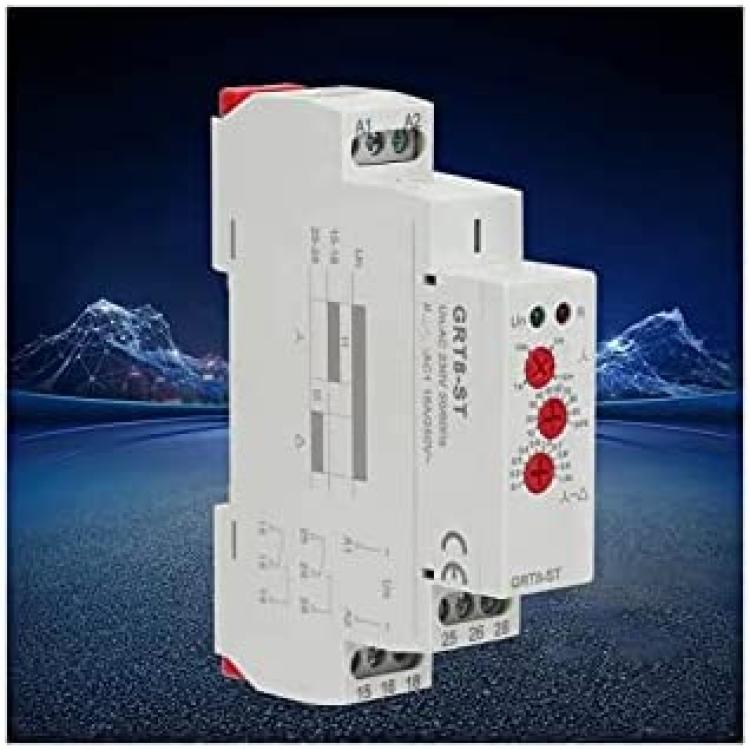

Star Delta Timer Soft Starter, Timer Delay Relay Motor Starter, for Star Delta Motor Start Control (AC/DC12V~240V)
About this product
*【DELAY RANGE】T1: start delay range is adjustable from 0.1s to 10min (knob setting)
*【CONVERSION TIME】T2: conversion time 0.1s-1s can be set (knob setting)
*【 OPTIONAL VOLTAGE】With AC/DC 12~240V wide working voltage specification optional
*【 LED INDICATOR 】The working status of relay is indicated by LED indicator light.
*【 SMALL SIZE】Super small size, only 18mm wide, 35mm rail mounting
Description
Features:
Â
Specification:
Type:Â AC/DC12V~240V, AC380V,AC400V, AC415V, A230(Optional)
Power terminal A1-A2
Rated control power supply voltage: AC/DC 12-240v (50/60hz)
Power consumption :AC 0.7-3VA/DC 0.5-1.7W
Power supply allowable fluctuation range: -15%; + 10%
Power indicator: green LED
Starting delay: 0.1s-10min; conversion delay: 0.1s-1s
Setting mode: knob
Setting accuracy: 5%
Repeat accuracy: 0.2%
Temperature fluctuation error: 0.05%?,at=20?
Output: two sets of conversion contacts 16A/AC250VAC
Minimum switching power: 500mW
Output relay indication: red LED
Mechanical life: 1 x 10000000
Long-life electrical resistance (load) :1000000
Reset time: 200ms maximum
Working environment temperature: - 20?~ 55?
Storage and transportation environment temperature: - 35?~ 75?

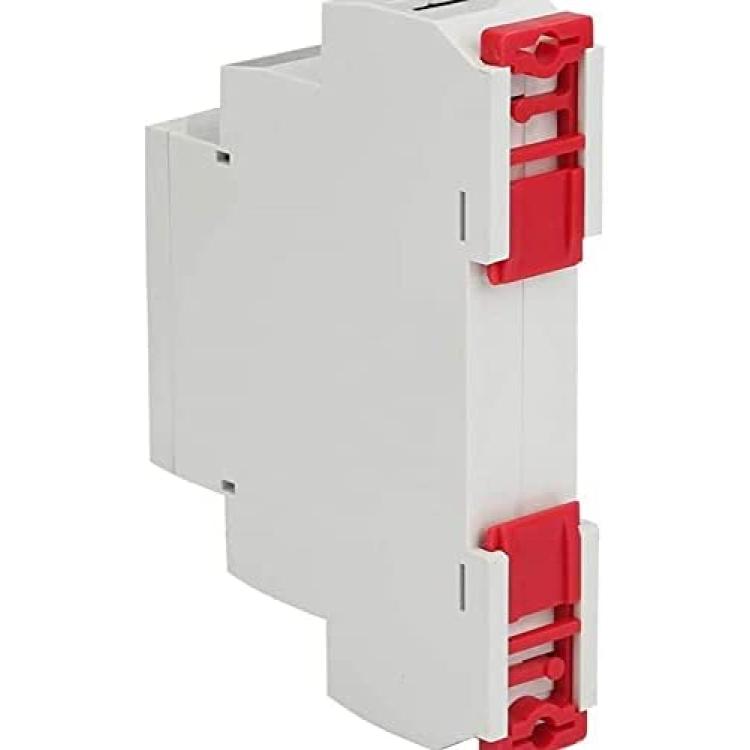

Installation: 35mm rail mounting
Protection level: Ip20
Installation location: any
Installation altitude: 2000 meters
Pollution level: 2
Wiring capacity: 1x2.5mm²or 2x 1.5mm²
Dimensions: 90*18*64mm/3.5*0.7*2.5in
Conforming to the standard: GB14048.5.IEC/EN 60255-1
Weight: Approx.96g/3.4oz
Â
Package list:
1 x Star Delta Timer Soft starter
